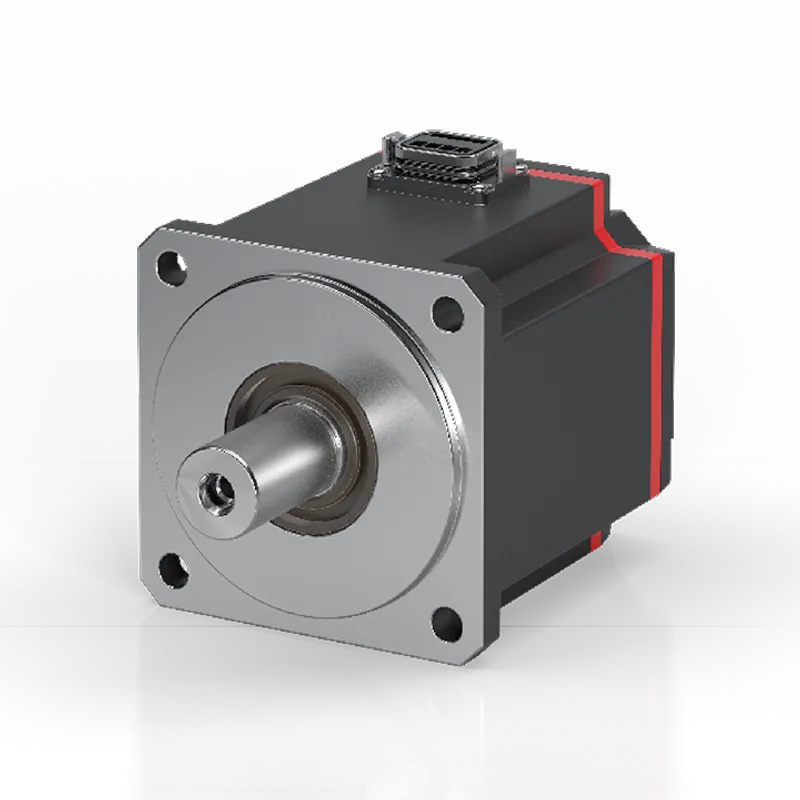

Beckhoff AM1031-wHyz

Economy servomotor 1.83 Nm (M0), 550 W (Pn), I3 (80 mm)

MPN: AM1031-wHyz
Category: AM1031

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AM1031-wHyz?

The AM1031 economy servomotor is suitable for drive solutions that have very high demands in terms of dynamics and performance in the 110…480 V AC voltage range. The motor's standstill torque is 1.83 Nm and it can be combined with the AX1106-1xxx

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Standstill torque	1.83 Nm
Nominal voltage	110…480 V AC
Rated torque	1.76 Nm
Peak torque	4.90 Nm
Rated speed	3000 min-1
Rated power	0.55 kW
Standstill current	5.30 A
Peak current	14.0 A
Torque constant	0.345 Nm/A
Motor feedback	OCT, single-turn or multi-turn absolute encoder, electronic nameplate
Cooling	convection
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus in preparation
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	CDC, black, similar to RAL9005
Motor length without shaft (without brake)	89.0 mm
Motor length without shaft (with brake)	114.0 mm

AM1031-wHyz: frequently asked questions

When can AM1031-wHyz be shipped?

AM1031-wHyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AM1031-wHyz in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AM1031-wHyz and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM1031-wHyz, subject to availability and destination.
