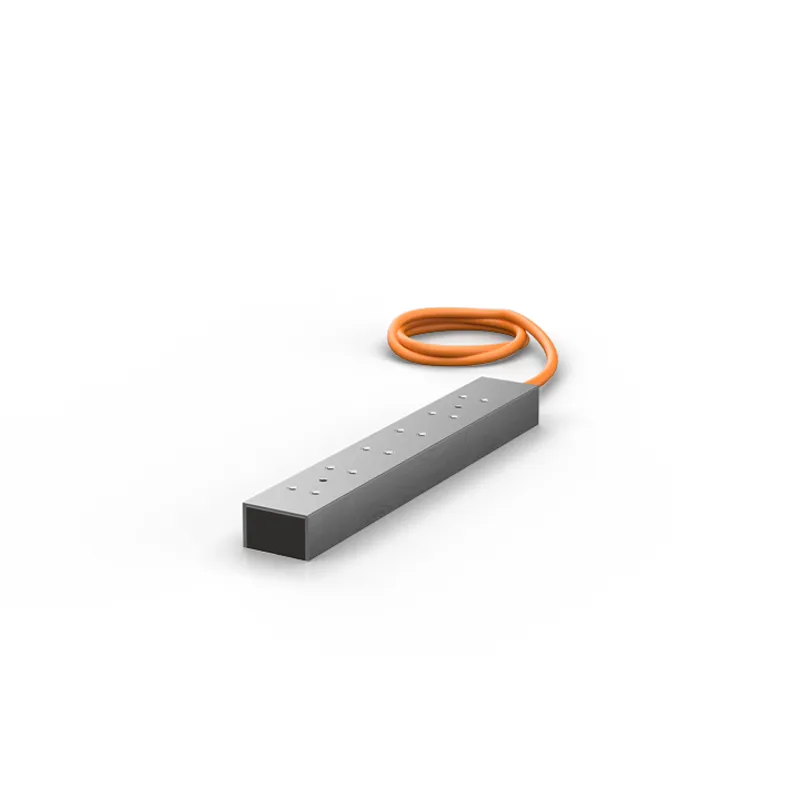

Linear servomotor, 650 N (Fmax), convection

Name: Beckhoff AL8126-0Nyz-0000 – Linear servomotor, 650 N (Fmax), convection
Brand: Beckhoff
SKU: AL8126-0Nyz-0000

MPN: AL8126-0Nyz-0000 · Brand: Beckhoff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	AL8126
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AL8126-0Nyz-0000 be shipped?

AL8126-0Nyz-0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AL8126-0Nyz-0000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AL8126-0Nyz-0000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AL8126-0Nyz-0000, subject to availability and destination.

The AL8126 linear servomotor is suitable for highly dynamic and powerful linear axes for 48 V DC and has a pole pair distance of 24 mm. The optimized product design and the modular coil concept enable maximum force density in the smallest mounting space.

Specifications

Motor type	3-phase synchronous linear servomotors
Nominal voltage	24…48 V DC
Max. speed	2.3 m/s
Peak force	650 N
Continuous force	360 N
Peak current	32 A
Continuous current	15 A
Force constant	24 N/A
Cooling	convection
Connection technology	M23 speedtec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Protection rating	IP64
Overall width	W2 (50 mm)
Material	aluminum
b	51 mm
la	335 mm
h	40 mm
