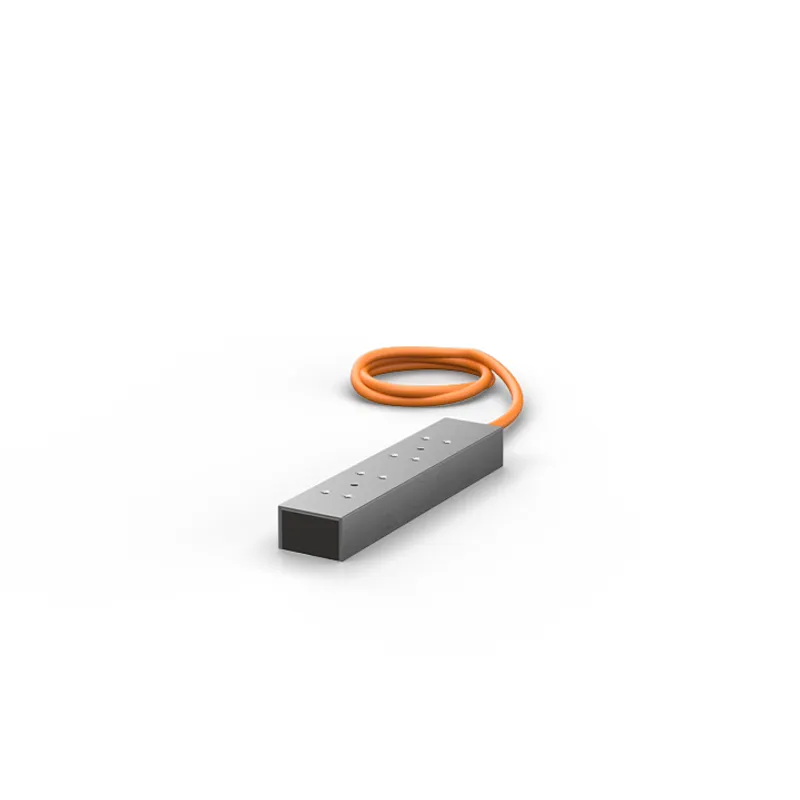

Beckhoff AL8124-0Nyz-0000

Linear servomotor, 440 N (Fmax), convection

MPN: AL8124-0Nyz-0000
Category: AL8124

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AL8124-0Nyz-0000?

The AL8124 linear servomotor is suitable for highly dynamic and powerful linear axes for 48 V DC and has a pole pair distance of 24 mm. The optimized product design and the modular coil concept enable maximum force density in the smallest mounting space.

Specifications

Motor type	3-phase synchronous linear servomotors
Nominal voltage	24…48 V DC
Max. speed	3.5 m/s
Peak force	440 N
Continuous force	240 N
Peak current	32 A
Continuous current	15 A
Force constant	16 N/A
Cooling	convection
Connection technology	M23 speedtec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Protection rating	IP64
Overall width	W2 (50 mm)
Material	aluminum
b	51 mm
la	239 mm
h	40 mm
