Balluff – BTL0307 BTL6-A110-M0305-P-S115 – Magnetostrictive linear position sensors in profile design
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetostrictive linear position sensors in profile design |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BTL0307 be shipped?
BTL0307 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BTL0307 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BTL0307 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BTL0307, subject to availability and destination.
Balluff BTL0307 (BTL6-A110-M0305-P-S115) — Magnetostrictive linear position sensors in profile design. Style: Profile series; Mounting part: Mounting clamps; Housing material: Aluminium, Anodized; Connection: Connector, M12x1, 8-pin; Analog output: Analog, voltage 0…10 V Analog, voltage 10…0 V. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BTL6-A110-M0305-P-S115 |
| Product group | Magnetostrictive linear position sensors in profile design |
Key features
| Style | Profile series |
| Mounting part | Mounting clamps |
| Housing material | Aluminium, Anodized |
| Connection | Connector, M12x1, 8-pin |
| Analog output | Analog, voltage 0…10 V Analog, voltage 10…0 V |
| Measuring range | 305 mm |
| Resolution | ≤ 2 µm |
| Non-linearity max. | ±100 µm |
| Repeat accuracy | ≤ 0.1 mV |
| Operating voltage Ub | 20...28 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CE cULus EAC WEEE |
Classifications
| ECLASS 14.0 | 27-27-43-03 |
| ETIM 9.0 | EC001852 |
| UNSPSC 11 | 41112100 |
More Balluff parts
Available on requestBTL02PU BTL5-A11-M0250-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL02R7 BTL5-A11-M0350-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL02TN BTL5-A11-M0600-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL02UM BTL5-A11-M0950-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL03CF BTL5-H105-M0600-P-S92 – Magnetostrictive linear position sensors in profile design
Available on requestBTL055R BTL5-E10-M0305-ZM-S32 – Magnetostrictive linear position sensors in rod design
Available on requestBTL083F BTL5-A11-M3048-R-S32 – Magnetostrictive linear position sensors in profile design

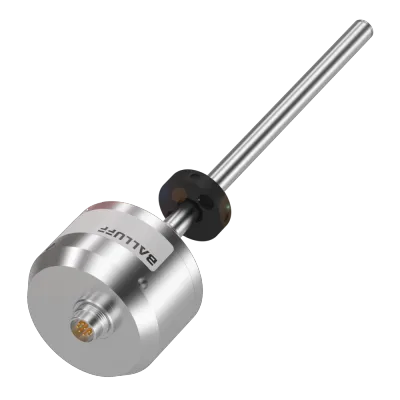

Available on requestBTL0HLF BTL5-H113-M0552-H-SA314-S92 – Robust magnetostrictive linear position sensors
