Balluff – BTL02TN BTL5-A11-M0600-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetostrictive linear position sensors in profile design |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BTL02TN be shipped?
BTL02TN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BTL02TN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BTL02TN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BTL02TN, subject to availability and destination.
Balluff BTL02TN (BTL5-A11-M0600-P-SA167-S32) — Magnetostrictive linear position sensors in profile design. Style: Profile series; Mounting part: Mounting clamps; Housing material: Aluminium, Anodized; Magnets, number max.: 1; Connection: Connector, M16x0.75, 8-pin. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BTL5-A11-M0600-P-SA167-S32 |
| Product group | Magnetostrictive linear position sensors in profile design |
Key features
| Style | Profile series |
| Mounting part | Mounting clamps |
| Housing material | Aluminium, Anodized |
| Magnets, number max. | 1 |
| Connection | Connector, M16x0.75, 8-pin |
| Analog output | Analog, voltage 0…10 V Analog, voltage 10…0 V |
| Measuring range | 600 mm |
| Resolution | ≤ 2 µm |
| Non-linearity max. | ±0.02 % FS |
| Repeat accuracy | ≤ 0.1 mV |
| Operating voltage Ub | 20...28 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA cULus WEEE |
Classifications
| ECLASS 14.0 | 27-27-43-03 |
| ETIM 9.0 | EC001852 |
| UNSPSC 11 | 41112100 |
More Balluff parts
Available on requestBSP0003 BSP B050-DV001-I01A0A-S4 – Pressure transmitter
Available on requestBTL02P6 BTL5-A11-M0150-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL02PU BTL5-A11-M0250-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL02R7 BTL5-A11-M0350-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL02UM BTL5-A11-M0950-P-SA167-S32 – Magnetostrictive linear position sensors in profile design
Available on requestBTL0307 BTL6-A110-M0305-P-S115 – Magnetostrictive linear position sensors in profile design
Available on requestBTL03CF BTL5-H105-M0600-P-S92 – Magnetostrictive linear position sensors in profile design

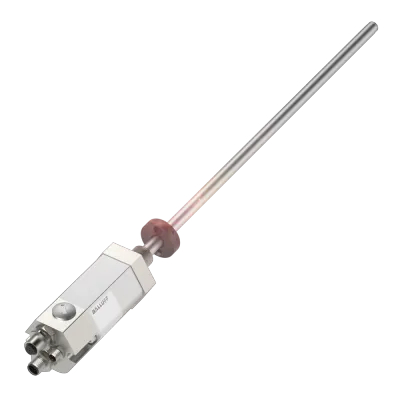

Available on requestBTL055R BTL5-E10-M0305-ZM-S32 – Magnetostrictive linear position sensors in rod design
