Balluff – BOS014Y BOS 08M-NO-PR11-02 – Retroreflective sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Retroreflective sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BOS014Y be shipped?
BOS014Y is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BOS014Y in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BOS014Y and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BOS014Y, subject to availability and destination.

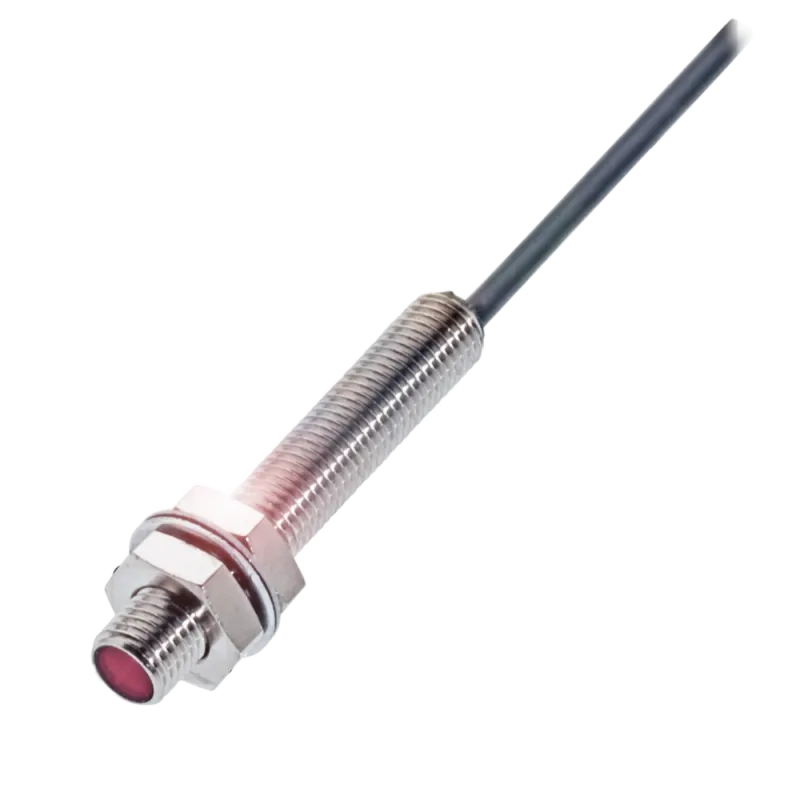

Balluff BOS014Y (BOS 08M-NO-PR11-02) — Retroreflective sensor. Series: 08M; Dimension: Ø 8 x 50 mm; Interface: NPN normally closed (NC); Principle of optical operation: Retroreflective sensor; Beam characteristic: Divergent. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BOS 08M-NO-PR11-02 |
| Product group | Retroreflective sensors |
Key features
| Series | 08M |
| Dimension | Ø 8 x 50 mm |
| Interface | NPN normally closed (NC) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | LED, red light |
| Range | 0 m...550 mm |
| Connection | Cable, 2.00 m, PUR |
| Housing material | Brass, nickel-plated |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE cULus EAC WEEE |
Classifications
| ECLASS 14.0 | 27-27-09-02 |
| ETIM 9.0 | EC002717 |
| UNSPSC 11 | 39121528 |
