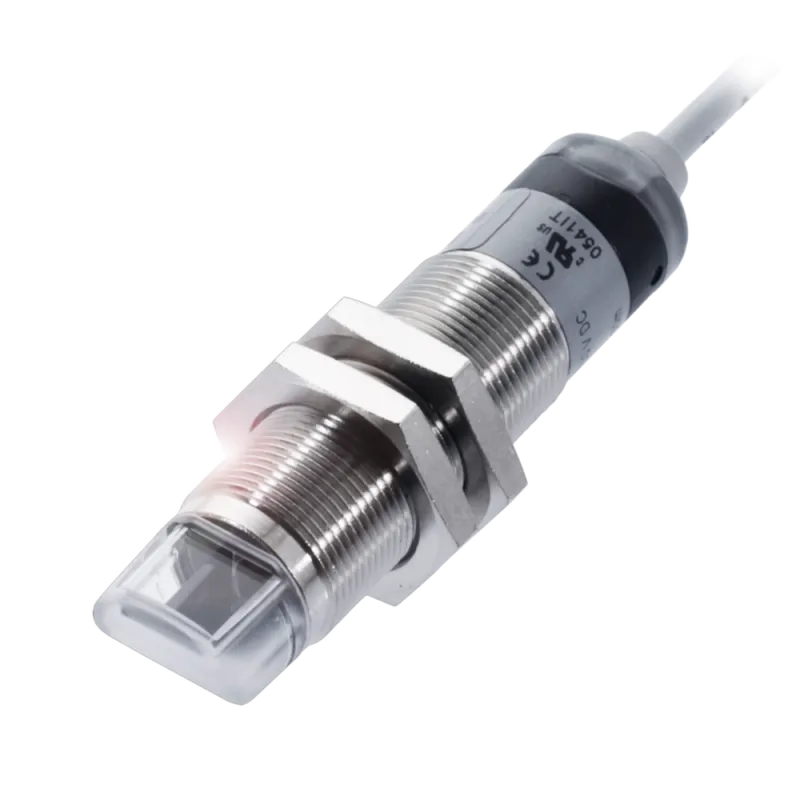

Balluff – BOS0147 BOS 18MR-XT-LS10-02 – Through-beam sensors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Through-beam sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BOS0147 be shipped?
BOS0147 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BOS0147 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BOS0147 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BOS0147, subject to availability and destination.
Balluff BOS0147 (BOS 18MR-XT-LS10-02) — Through-beam sensor. Series: 18MR; Dimension: Ø 18 x 79 mm; Input function: Test (Emitter off); Principle of optical operation: Through-beam sensor (Emitter); Light type: Laser red light. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Type designation | BOS 18MR-XT-LS10-02 |
| Product group | Through-beam sensors |
Key features
| Series | 18MR |
| Dimension | Ø 18 x 79 mm |
| Input function | Test (Emitter off) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (Emitter) |
| Light type | Laser red light |
| Range | 0...50 m |
| Connection | Cable, 2.00 m, PVC |
| Housing material | Brass, nickel-plated |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE cULus EAC WEEE |
Classifications
| ECLASS 14.0 | 27-27-09-01 |
| ETIM 9.0 | EC002716 |
| UNSPSC 11 | 39121528 |
