Balluff – BES018W BES 516-3019-BO-C-PU-05 – Inductive proximity switches and proximity sensors

MPN: BES018W · Brand: Balluff

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive proximity switches and proximity sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BES018W be shipped?

BES018W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES018W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES018W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES018W, subject to availability and destination.

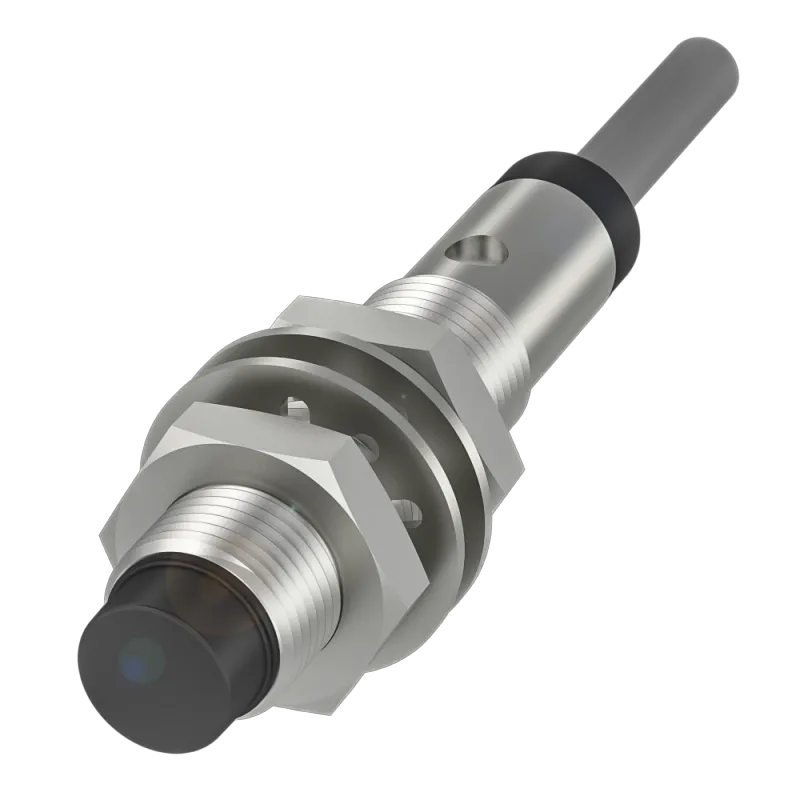

Balluff BES018W (BES 516-3019-BO-C-PU-05) — Inductive proximity switches and proximity sensor. Dimension: Ø 12 x 60 mm; Style Housing: M12x1; Installation: non-flush; Range: 4 mm; Switching output: PNP normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BES 516-3019-BO-C-PU-05
Product group	Inductive proximity switches and proximity sensors

Key features

Dimension	Ø 12 x 60 mm
Style Housing	M12x1
Installation	non-flush
Range	4 mm
Switching output	PNP normally closed (NC)
Switching frequency	1200 Hz
Housing material	Stainless steel
Material sensing surface	PA 12
Connection	Cable, 5.00 m, PUR
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP68
Approval/Conformity	CE cULus EAC
Principle of operation	Inductive sensor
