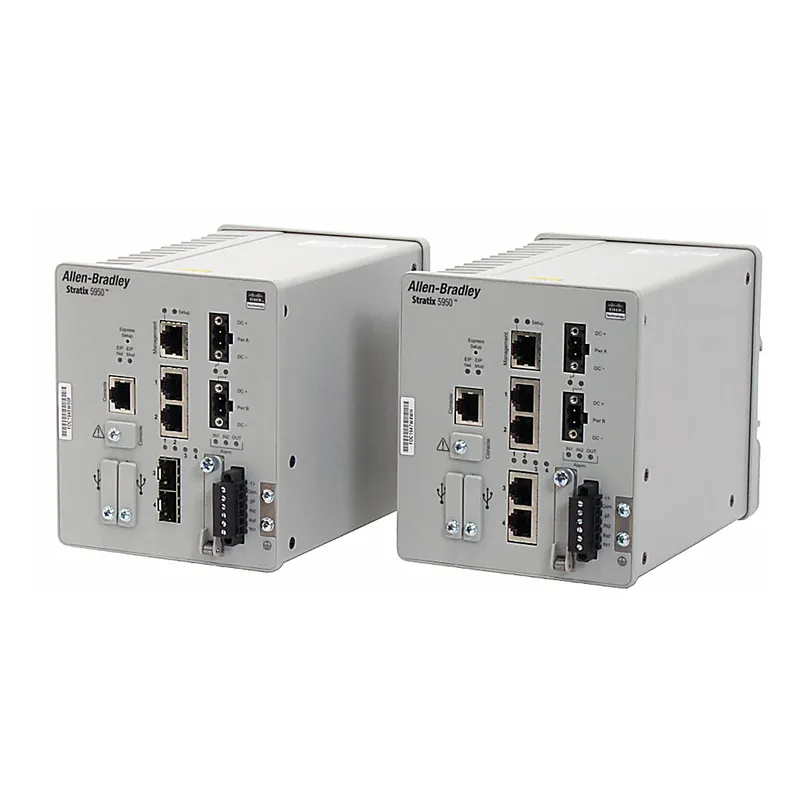

Allen-Bradley – 1783-SAD4T0SPK9 Stratix 5950 Security Appliance

MPN: 1783-SAD4T0SPK9 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-SAD4T0SPK9 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-SAD4T0SPK9 now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-SAD4T0SPK9, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-SAD4T0SPK9 be shipped?

1783-SAD4T0SPK9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-SAD4T0SPK9 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-SAD4T0SPK9 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-SAD4T0SPK9, subject to availability and destination.

Allen-Bradley 1783-SAD4T0SPK9 — Stratix 5950 Security Appliance. Discontinued by Rockwell Automation on January 01, 2024. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	January 01, 2024
Replacement category (Rockwell)	Engineering Replacement
Repair options available	Yes

Specifications

Network Media	Male RJ45 to Male RJ45
# of Copper Ports Required	8 or less
# of Fiber Ports Required	None
Stratix Ethernet Family	Stratix 5950
Alarm relay at 30V DC	1 A
Alarm relay at 48V DC	0.5 A
Ambient temperature, maximum	60 °C
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Current rating, user supply at 12 - 48V DC, maximum	2 A
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on communication ports	±500
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on signal ports	±1
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power ports	±1
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on signal ports	±500
Delta connected motor power, max	T4
Depth	159.26 cm
EFT/B immunity for IEC 61000-4-4 at 5 kHz on communication ports	±2
EFT/B immunity for IEC 61000-4-4 at 5 kHz on power ports	±2
EFT/B immunity for IEC 61000-4-4 at 5 kHz on signal ports	±2
Emissions	IEC 61000-6-4
Encryption	K9 encryption with VPN for SSL
ESD immunity, IEC 61000-4-2, air discharges	8 kV
ESD immunity, IEC 61000-4-2, contact discharges	6 kV
Ethernet	true
Height	129.54 cm
Housing base material	Open-style
Insulation stripping length	6.3±0.5
Isolation voltage (continuous), basic insulation type, all ports to ground	60 V
Layer 2	false
Layer 3	false
Manageable	false
Maximum insulation, DC power connection	1.2 mm
Mounting method	DIN rail (top hat rail)
Nominal position	T4
Number of ports 10/100/1000 Mbps RJ45	2
Number of ports 1GbE SFP	2
Power dissipation	24 W
Protection type	Alarm not rated
Pulse (digital) output	24 W
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	1 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Screw torque, alarm terminal	0.56 nm
Screw torque, ground terminal	0.4 nm
Screw torque, power terminal	0.56 nm
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	15 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on communication ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on power ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on signal ports	±1
Surge transient immunity, IEC 61000-4-5, line-line (DM) on power ports	±1
Surge transient immunity, IEC 61000-4-5, line-line (DM) on signal ports	±500
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	60 °C
Total number of ports	4
Vibration, IEC 60068-2-6 (test Fc, operating) at 5 - 150 Hz	1 g
Voltage variation IEC 61000-4-29, dips for 100 ms and 1 s on DC supply ports	60 %
Voltage variation IEC 61000-4-29, dips for 10 ms and 5 s on DC supply ports	100 %
Voltage variation IEC 61000-4-29, dips for 10 ms on DC supply ports	30 %
Width	106.68 cm
Wire insulation	Copper
Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire	0.8 mm²
Wire size, DC power connection, solid or stranded copper wire rated at 75 °C or greater	0.8 mm²
Wire size, ethernet connection	RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702
Wire size, ground connection, solid or stranded copper wire	4 mm²
Wire strip length, alarm connection	6.3±0.5
Wire strip length, DC power connection	6.3±0.5
Wiring category on console ports	3
Wiring category on Ethernet ports	2
Wiring category on power and alarm ports	2
