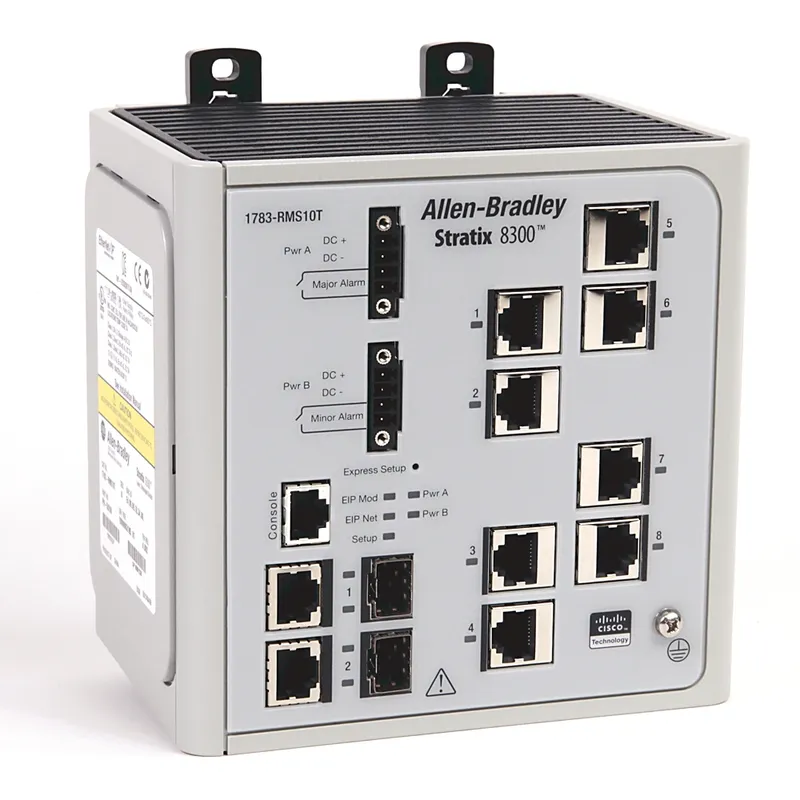

Allen-Bradley – 1783-RMS10T Stratix 8300 10 Port Ethernet Switch

MPN: 1783-RMS10T · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-RMS10T (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-RMS10T now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-RMS10T, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-RMS10T be shipped?

1783-RMS10T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-RMS10T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-RMS10T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-RMS10T, subject to availability and destination.

Allen-Bradley 1783-RMS10T — Stratix 8300 10 Port Ethernet Switch. Discontinued by Rockwell Automation on November 30, 2020. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	November 30, 2020
Replacement category (Rockwell)	Functional Replacement
Repair options available	Yes

Specifications

Network	Ethernet
Port	10
Alarm relay, CL 2/SELV at 30 V DC, maximum	1 A
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Degree of protection (IP)	IP20
Depth	11.75 cm
EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on alarm ports	±4
EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on Ethernet ports	±4
EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on power ports	±4
EFT/B immunity for IEC 61000-4-4 at 5 kHz on alarm ports	±2
EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports	±2
EFT/B immunity for IEC 61000-4-4 at 5 kHz on power ports	±2
Emissions, CISPR11 (IEC 61000-6-4)	Class A
ESD immunity, IEC 61000-4-2, air discharges	15 kV
ESD immunity, IEC 61000-4-2, contact discharges	8 kV
Ethernet	true
Height	14.8 cm
Housing base material	Open-style
Inrush current, maximum	2 A
Isolation voltage (continuous), basic insulation type, power to ground, power to network channels, and power to alarm	75 V
Layer 2	false
Layer 3	true
Magnetic field immunity, IEC 61000-4-8, long duration at 50 and 60 Hz (A/m)	30
Magnetic field immunity, IEC 61000-4-8, short duration at 50 and 60 Hz (A/m)	300
Manageable	true
Maximum insulation, DC power and alarm connections	1.2 mm
Nominal position	T4
Oscillatory surge withstand IEEE C37.90.1	2.5 kV
Power consumption, maximum (expansion module power not included)	15.7 W
Power dissipation	15.7 W
Protection type—Electronic S (short time trip units)	Panel mount
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 1000 - 2700 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 1000 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Screw torque, power and alarm terminals	0.23 nm
Selectable start times	T4
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	20 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on alarm ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on power ports	±2
Surge transient immunity, IEC 61000-4-5, line-line (DM) on alarm ports	±1
Surge transient immunity, IEC 61000-4-5, line-line (DM) on power ports	±1
Switch input, CL 2/SELV at 18 - 60 V DC, maximum	2 A
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	60 °C
Total number of ports	10
Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz	2 g
Voltage variation IEC 61000-4-29, interruption on DC supply ports	10 ms
Width	15.3 cm
Wire size, DC power and alarm connections, solid or stranded copper wire rated at 90 °C or greater	0.5 mm²
Wire size, ethernet connection	RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702
Wire size, ground connection, solid or stranded copper wire rated at 75 °C or greater	3.3 mm²
Wiring category on alarm ports	2
Wiring category on Ethernet ports	2
Wiring category on power ports	2
