ABB

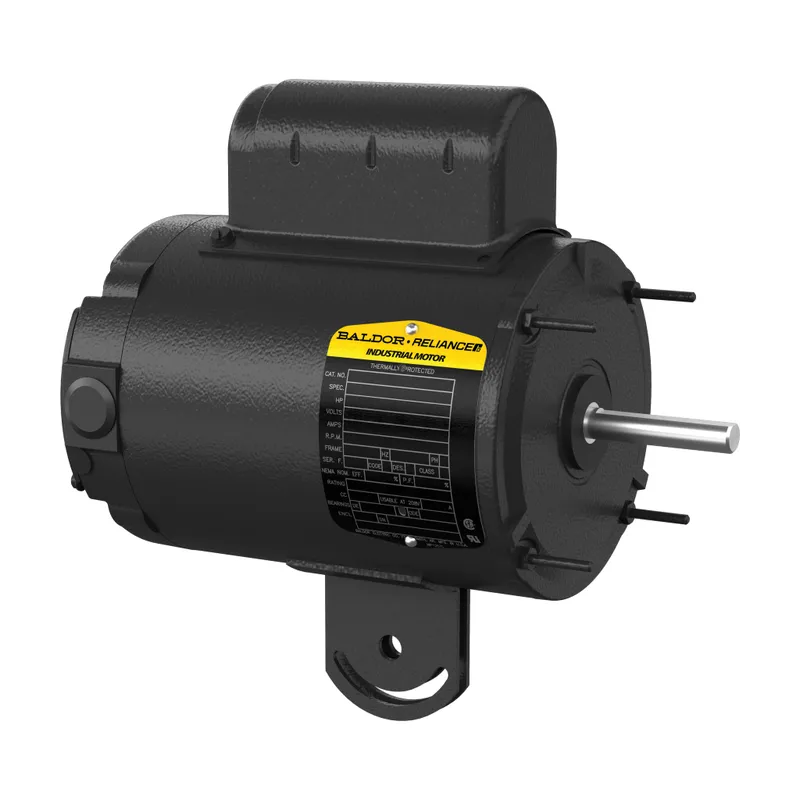

ABB YPC344A

.5HP,1625RPM,1PH,60HZ,48YZ,3414C,TE

MPN: YPC344A
Category: Fan and blower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB YPC344A?

Farm Duty Motor 0.5 Hp 115 V (YPC344A)

Specifications

Ordering

Catalog Number	YPC344A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Rated Efficiency	70 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEAO
Frame Material	Steel
Motor Frame Size	48YZ
Motor Base Type	Yoke Pedestal
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	23 lb
Product Net Width	13.75 in
Dimension Diagram	34LYM195

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
