ABB XL040542A

.5HP,1725RPM,1PH,60HZ,48,3424L,XPFC

MPN
XL040542A
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

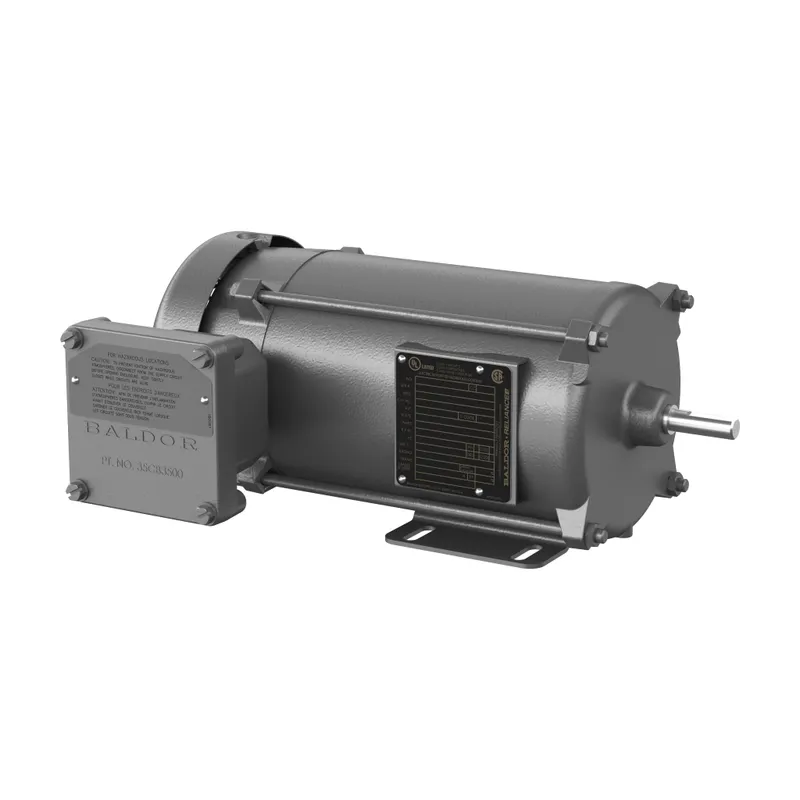

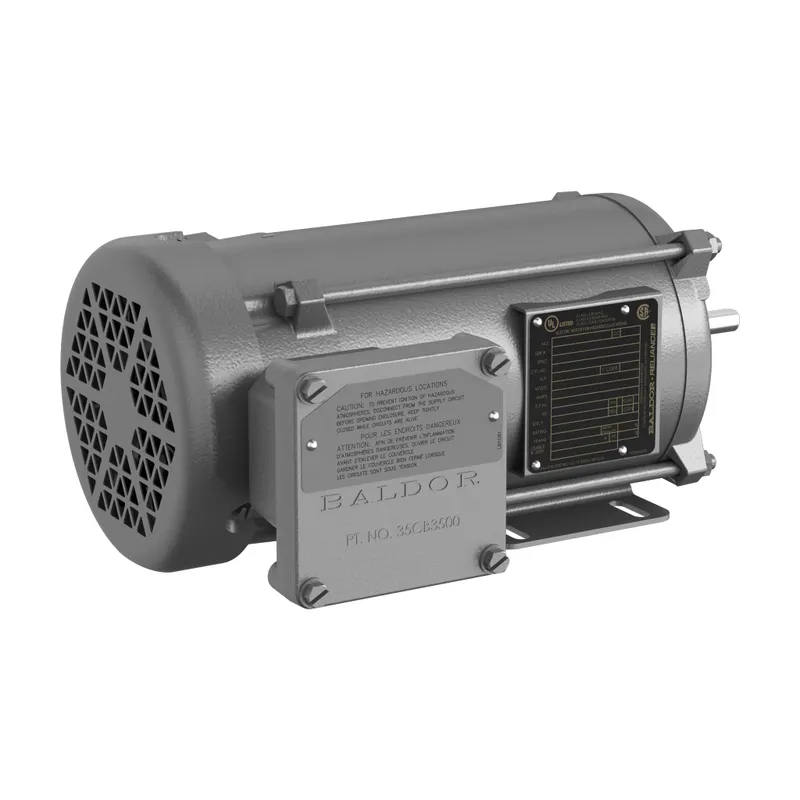

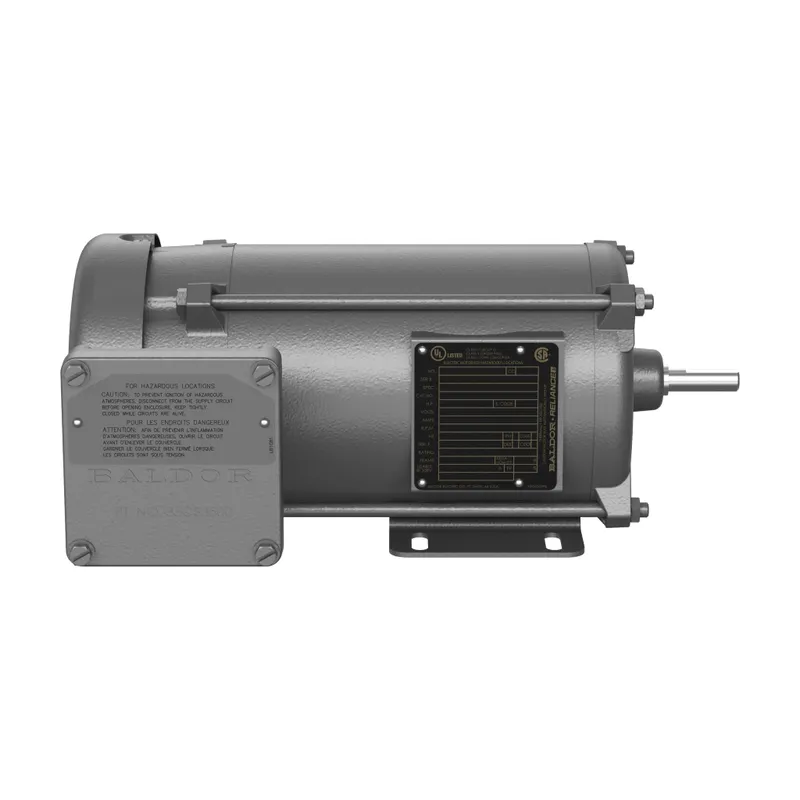

What is the ABB XL040542A?

Explosion Proof General Purpos 0.5 Hp 115 V (XL040542A)

Specifications

Ordering

Catalog NumberXL040542A
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85013100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassB
NEMA Design CodeN
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor66 %
Rated Efficiency64 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size48
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight36 lb
Product Net Width13.75 in
Dimension Diagram34LY6414

Certificates and Declarations

Certification AgencyCSA, UL
ETIM 7EC001851 - Electric motor
