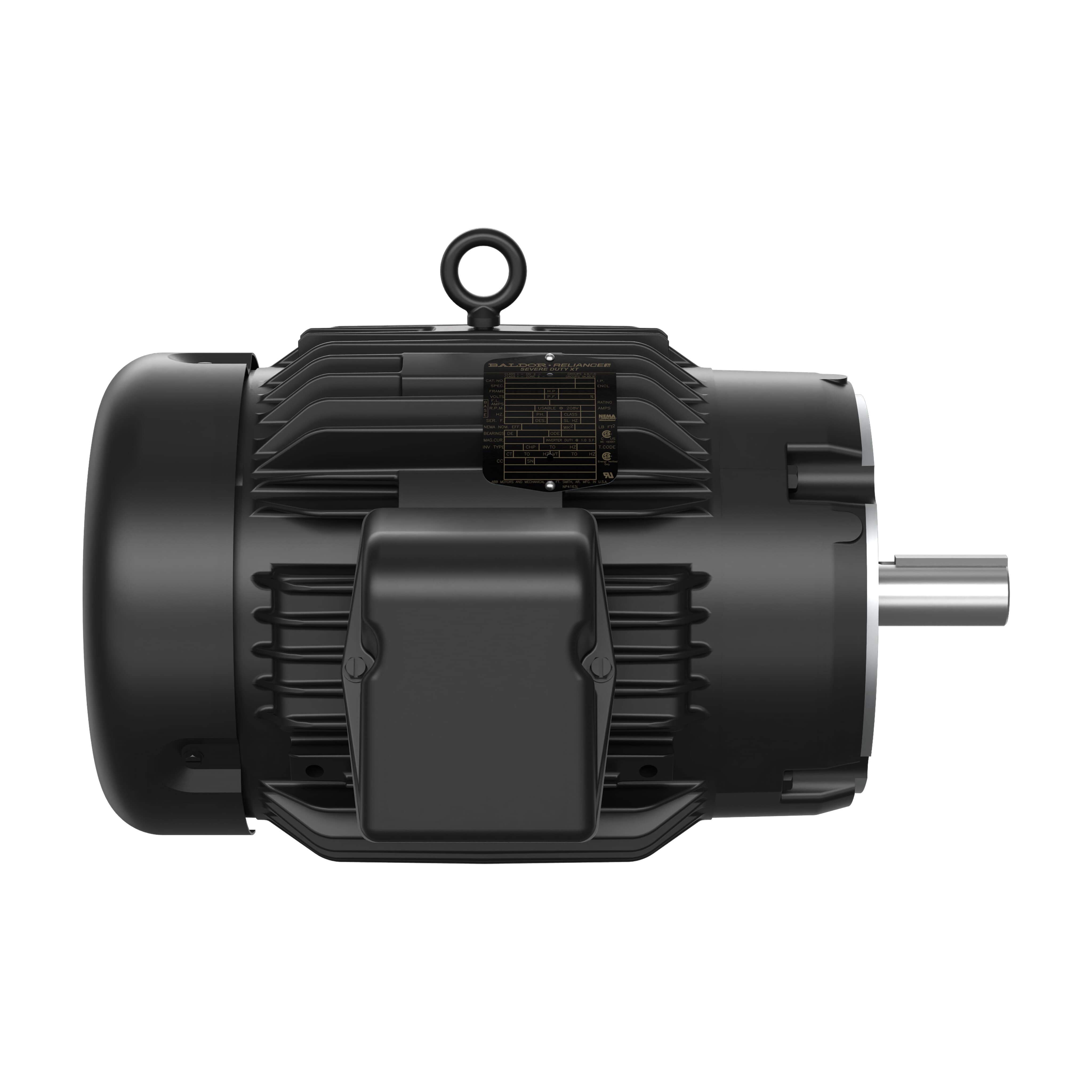

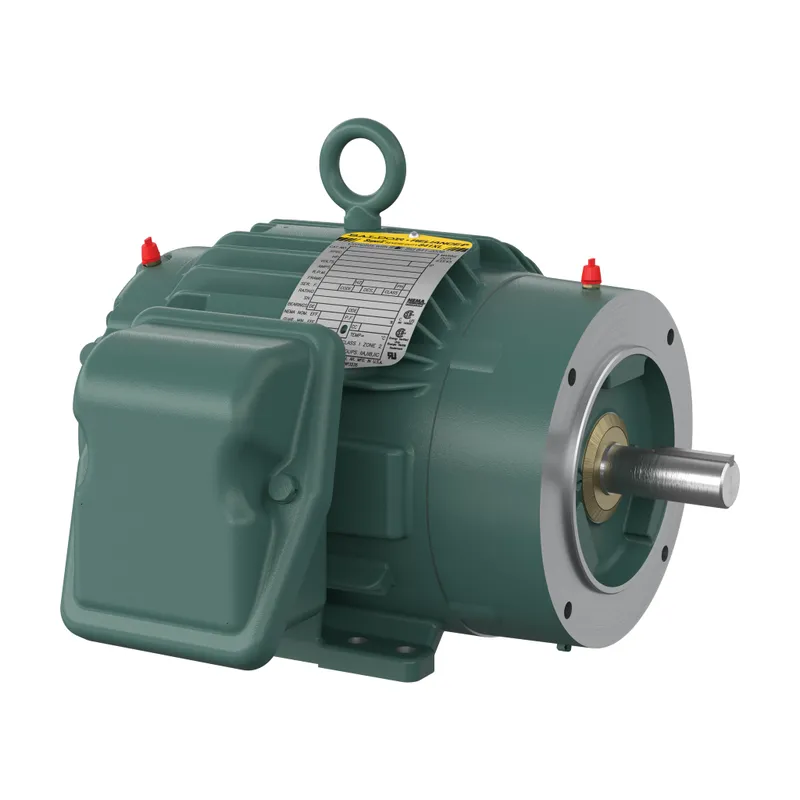

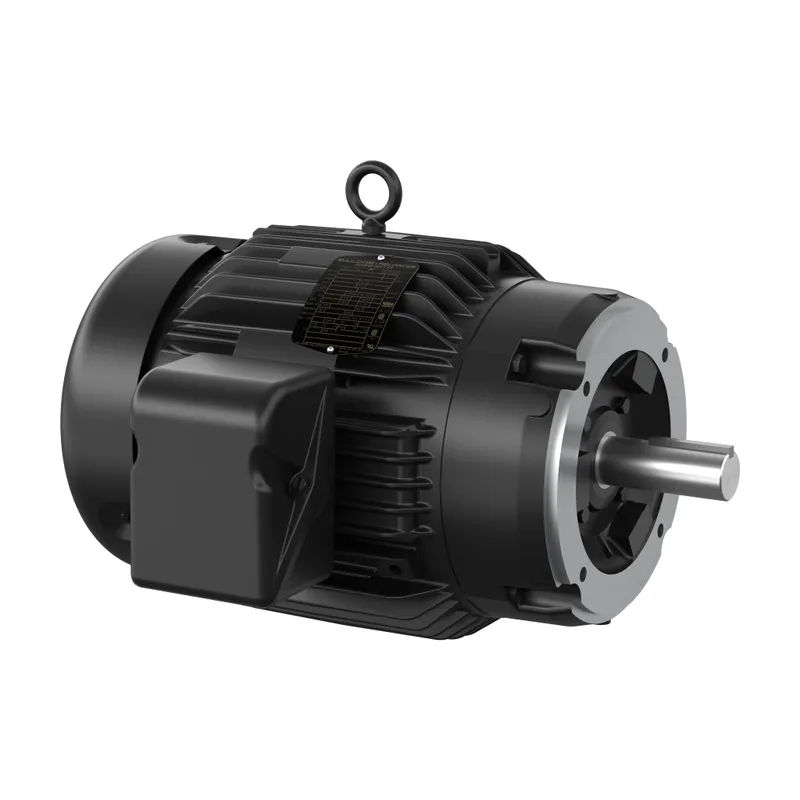

ABB VXT3036T

3HP,1165RPM,3PH,60HZ,213TC,0738M,TE

MPN: VXT3036T

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VXT3036T?

3HP,1165RPM,3PH,60HZ,213TC,0738M,TEFC,F1

Specifications

Additional Information

ABB Type Designation	3HP,1165RPM,3PH,60HZ,213TC,0738M,TE
Ambient Temperature	40 °C
Bearing	6307
Bearing NDE	6206
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	VXT3036T
Certification Agency	CCSA US, CSA EEV, NEMA PREMIUM, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Drive End Flange Type	C-Face
Efficiency Level	Premium Efficiency (NEMA 12-12)
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Iron
Frame Size	Undefined
Global Commercial Alias	VXT3036T
Gross Volume	9144.346 in³
Gross Weight	194 lb
Insulation Class	F
Invoice Description	3HP,1165RPM,3PH,60HZ,213TC,0738M,TEFC,F1
Made To Order	No
Medium Description	Frame Size 213Tc, C-Face Mounting, 3Phase Phase, TEFC Enclosure, (VXT3036T)
Minimum Order Quantity	1 piece
Motor Base Type	No Mounting
Motor Frame Size	213TC
Mounting Orientation	Horizontal
Mounting Position	F1
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Poles (High)	6
Number of Speeds	Single Speed
Order Multiple	1 piece
Output Power	3 Hp
Power Factor	70 %
Product Name	LV Severe Duty Motors
Product Net Depth / Length	28.625 in
Product Net Height	17.625 in
Product Net Weight	194 lb
Product Net Width	18.125 in
Product Type	Undefined
Quote Only	No
Rated Current (In)	9.3 A, 9 A, 4.5 A A
Rated Efficiency	90.20 %
Rated Speed	1165 r/min
Selling Unit of Measure	piece
Service Factor	1.15
Shaft Diameter	1.38 in
Short Description	Frame Size 213Tc, C-Face, 3Phase PH, TEFC,
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Synchronous Speed (vsyn)	1200 r/min
Temperature Class	T3C
Type of Duty	Continuous
Voltage Rating	208 V, 230 V, 460 V V
