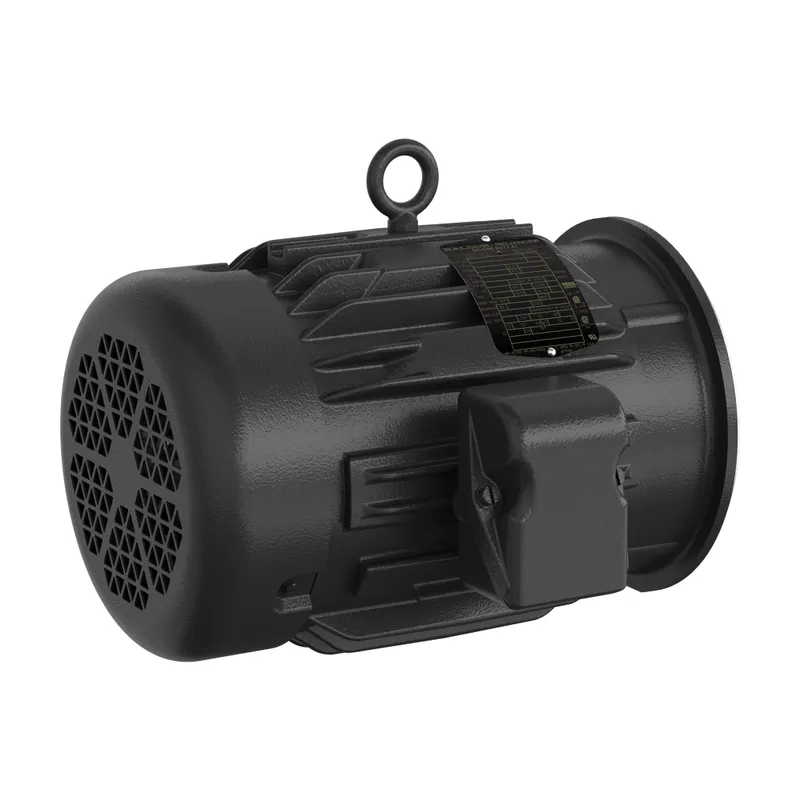

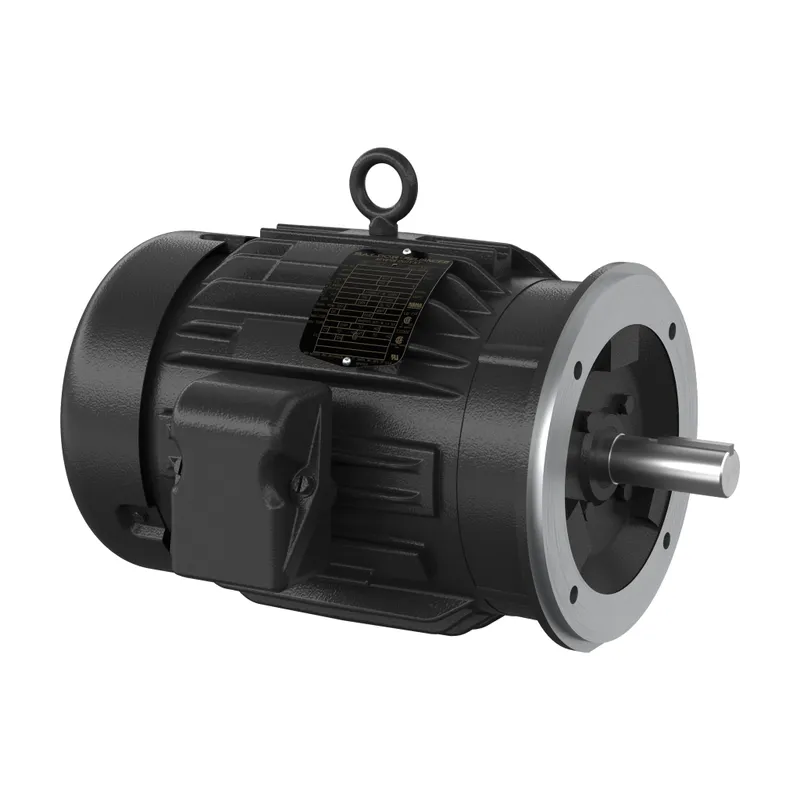

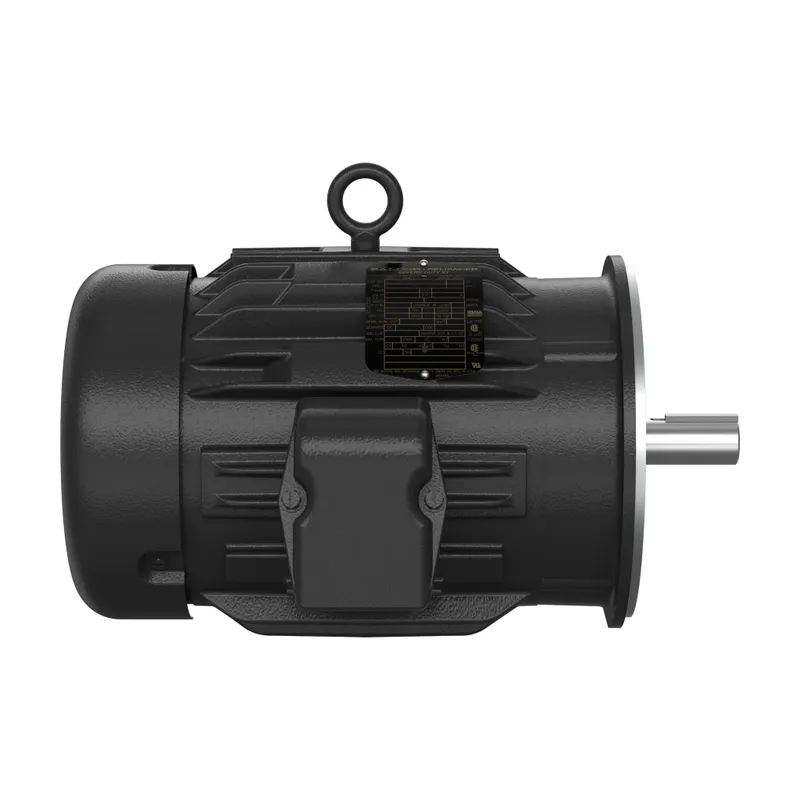

ABB VXT3032T-5

3HP,3500RPM,3PH,60HZ,182TC,0628M,TE

MPN: VXT3032T-5
Category: Severe Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VXT3032T-5?

Severe Duty Motor 3 Hp 575 V (VXT3032T-5)

Specifications

Ordering

Catalog Number	VXT3032T-5
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	92 %
Rated Efficiency	88.50 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	3 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast Iron
Motor Frame Size	182TC
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	99 lb
Product Net Width	16.125 in
Dimension Diagram	06LYH799

Certificates and Declarations

Certification Agency	CCSA US, CSA EEV, NEMA_PREMIUM, UR
ETIM 7	EC001851 - Electric motor
