Home / ABB / XP general purpose / ABB VXM050562A
ABB

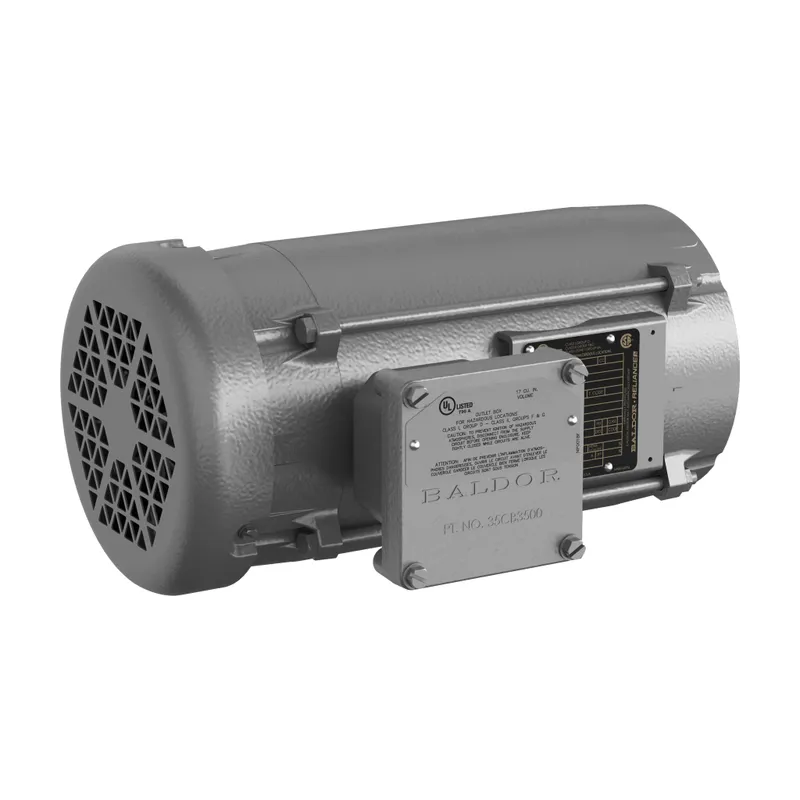

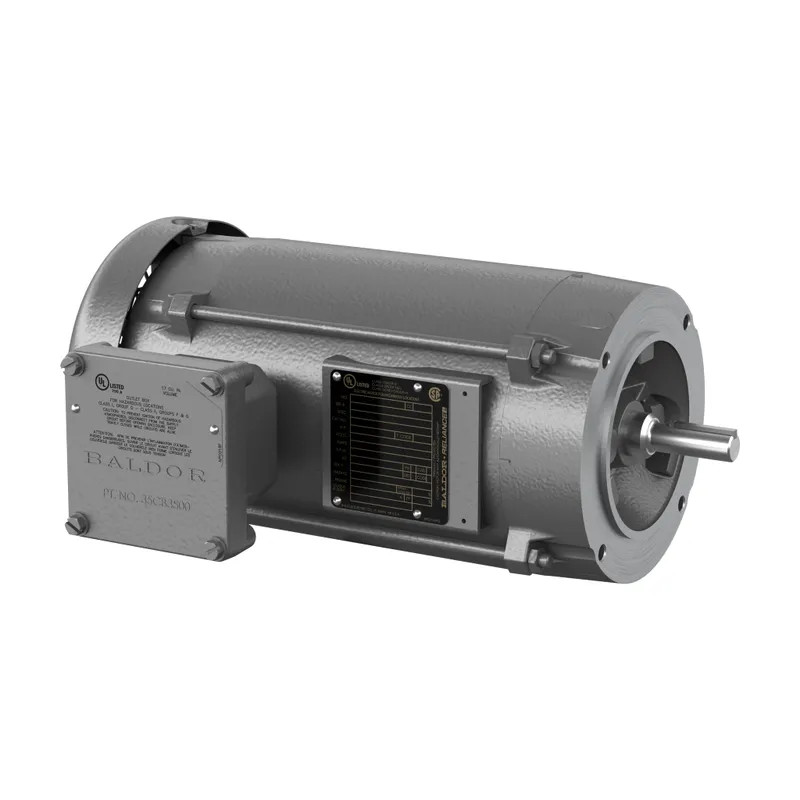

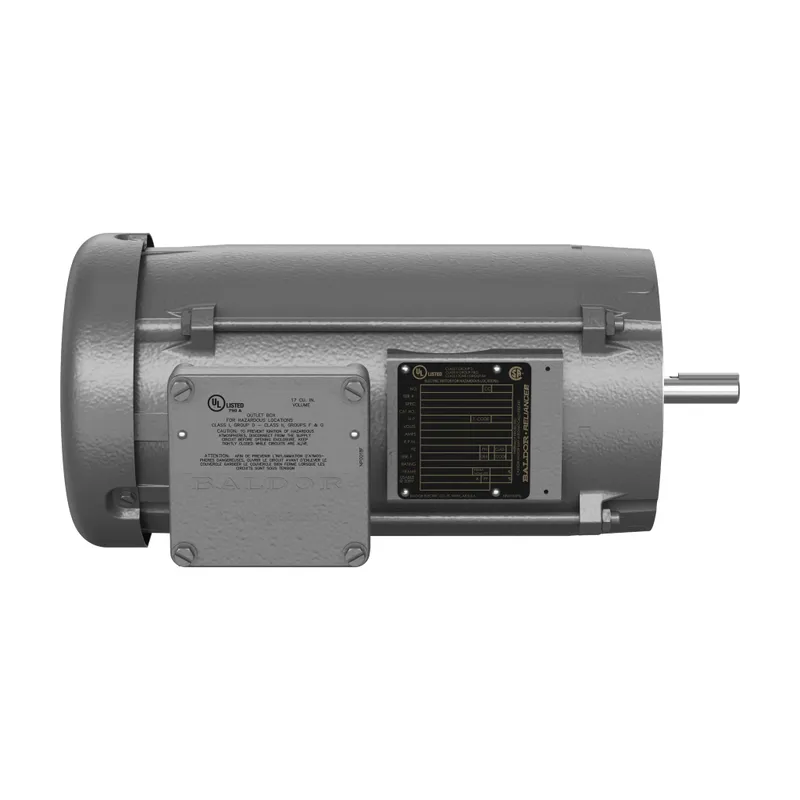

ABB VXM050562A

.5HP,1170RPM,3PH,60HZ,56C,3516M,XPF

MPN
VXM050562A
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB VXM050562A?

Explosion Proof General Purpos 0.5 Hp 208 V (VXM050562A)

Specifications

Ordering

Catalog NumberVXM050562A
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE1, Not Regulated / Exempt
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor55 %
Rated Efficiency70 %
Service Factor1.00
Temperature ClassT4
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeNo Mounting
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight40 lb
Product Net Width13.75 in
Dimension Diagram35LYE372

Certificates and Declarations

Certification AgencyCSA, UL
ETIM 7EC001851 - Electric motor

VXM050562A: frequently asked questions

When can VXM050562A be shipped?

VXM050562A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VXM050562A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VXM050562A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VXM050562A, subject to availability and destination.
