What is the ABB VXL050522A?

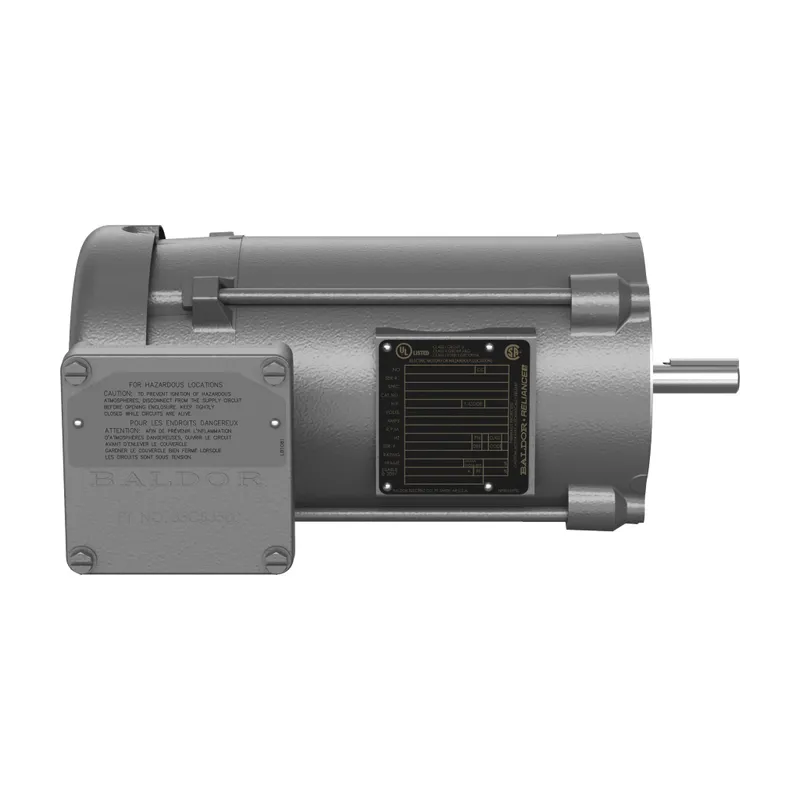

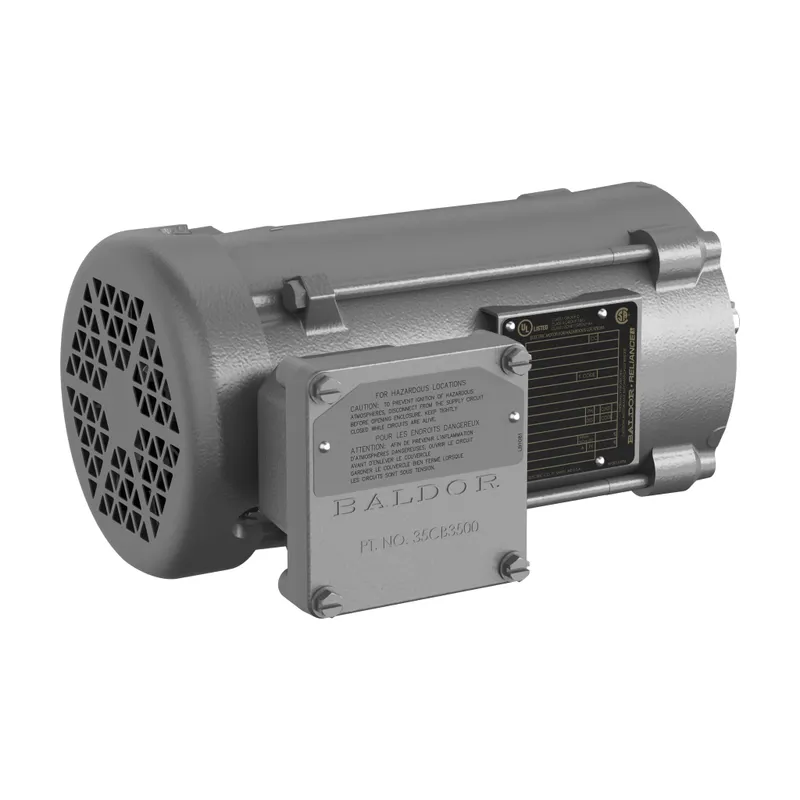

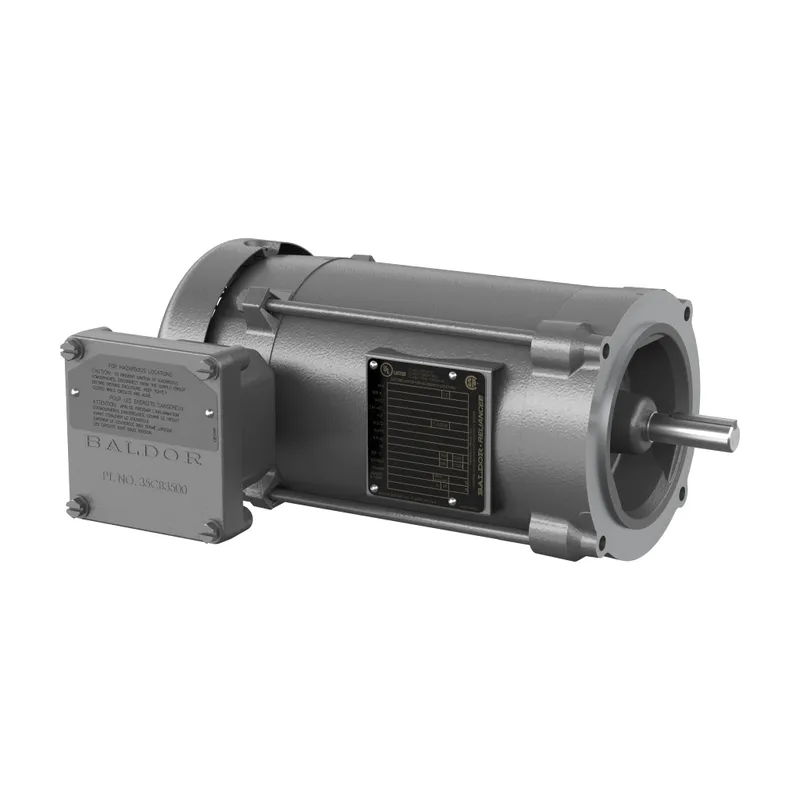

Explosion Proof General Purpos 0.5 Hp 115 V (VXL050522A)

Specifications

Ordering

Catalog Number	VXL050522A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	60 %
Rated Efficiency	60 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	42 lb
Product Net Width	13.75 in
Dimension Diagram	34LY5335

Certificates and Declarations

Certification Agency	CSA, UL
ETIM 7	EC001851 - Electric motor
