Home / ABB / Three phase open motors / ABB VM3153T

ABB

ABB VM3153T

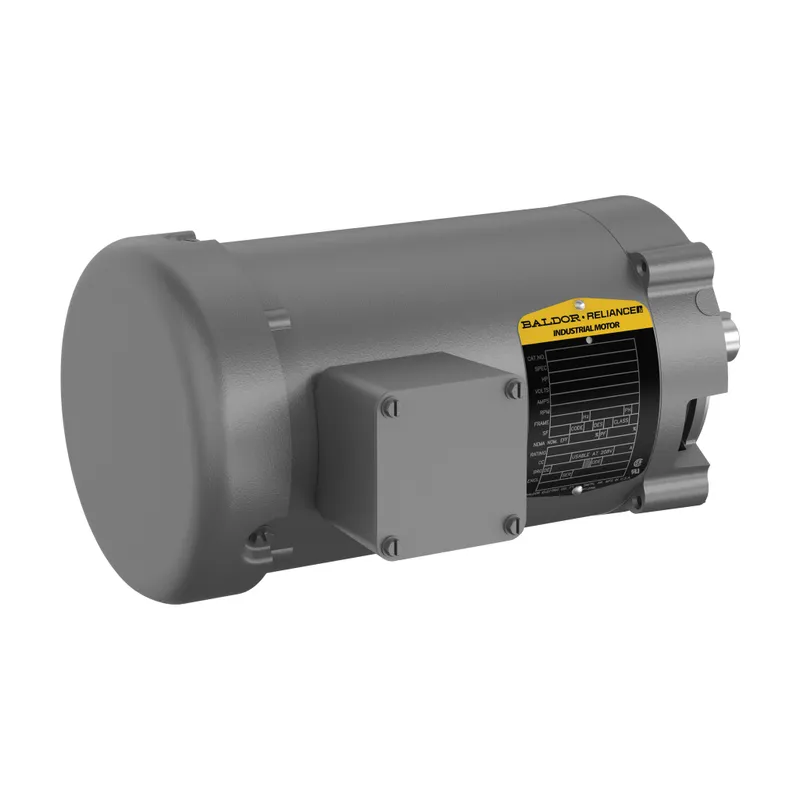

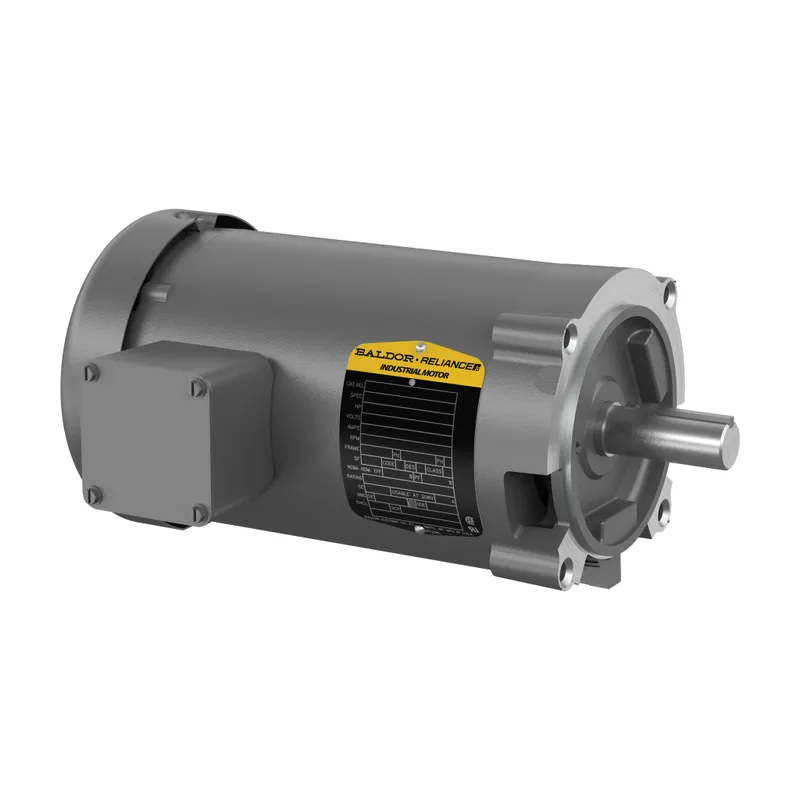

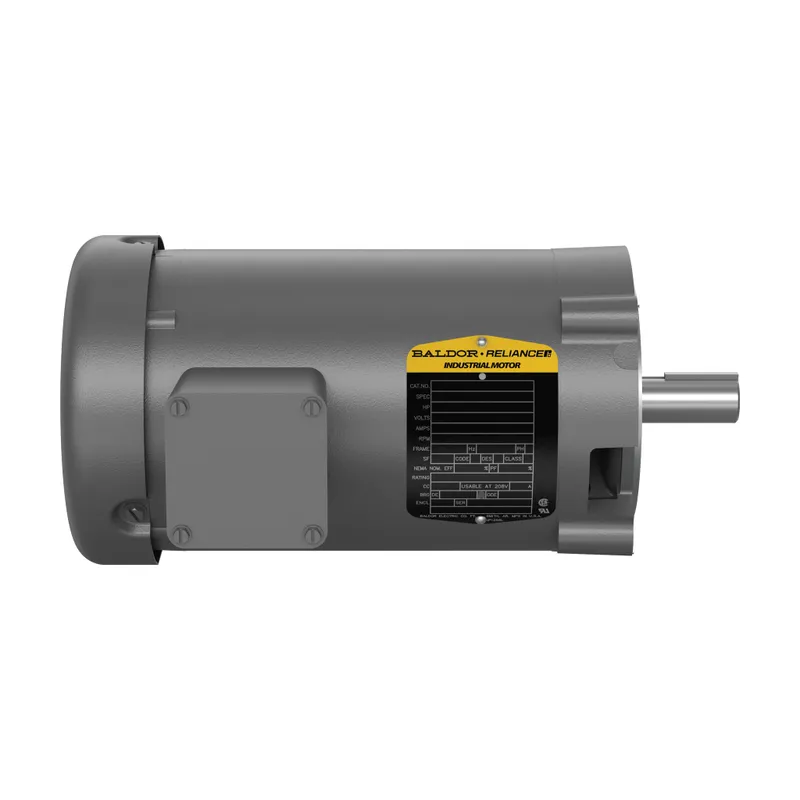

.75HP,1140RPM,3PH,60HZ,143TC,3428M

MPN: VM3153T
Category: Three phase open motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VM3153T?

General Purpose Motor 0.750.000 Hp 230 V (VM3153T)

Specifications

Ordering

Catalog Number	VM3153T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	59 %
Rated Efficiency	77 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	0.750.000 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	OPEN
Frame Material	Steel
Motor Frame Size	143TC
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	32 lb
Product Net Width	11.5 in
Dimension Diagram	34LY3508

Certificates and Declarations

Certification Agency	C UR US, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
