Home / ABB / IEEE 841XL Vertical P-base / ABB VLECP84110T-4

ABB

ABB VLECP84110T-4

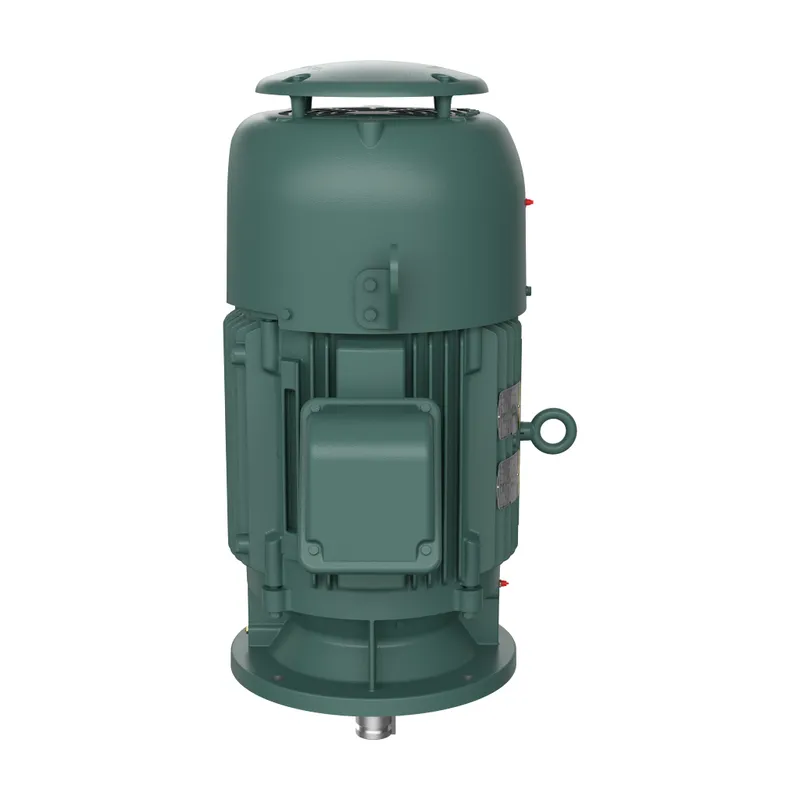

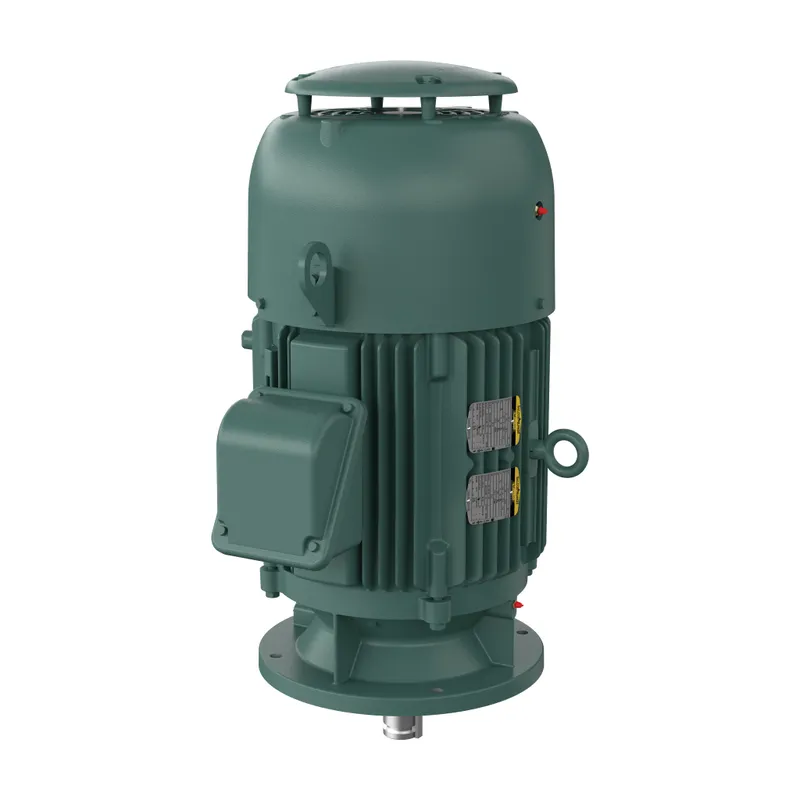

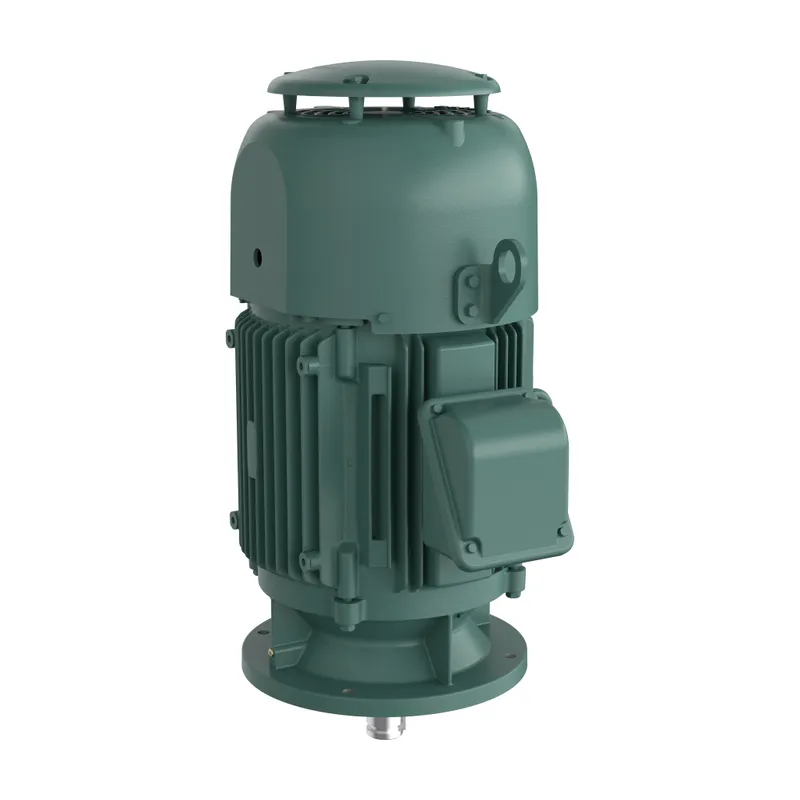

40HP,1770RPM,3PH,60HZ,324LP,1260M,T

MPN: VLECP84110T-4
Category: IEEE 841XL Vertical P-base

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VLECP84110T-4?

Pump Motor 40 Hp 460 V (VLECP84110T-4)

Specifications

Ordering

Catalog Number	VLECP84110T-4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	86 %
Rated Efficiency	94.10 %
Service Factor	1.15
Temperature Class	T3
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	40 Hp

Mechanical

Drive End Flange Type	P-Base
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast Iron
Motor Frame Size	324LP
Motor Base Type	No Mounting
Mounting Position	V1
Brake Present	No

Dimensions

Product Net Height	28.25 in
Product Net Weight	741 lb
Product Net Width	33.5 in
Dimension Diagram	12LYH444

Certificates and Declarations

Certification Agency	CCSA US, CSA EEV, NEMA_PREMIUM, UR
ETIM 7	EC001851 - Electric motor

VLECP84110T-4: frequently asked questions

When can VLECP84110T-4 be shipped?

VLECP84110T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VLECP84110T-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VLECP84110T-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VLECP84110T-4, subject to availability and destination.
