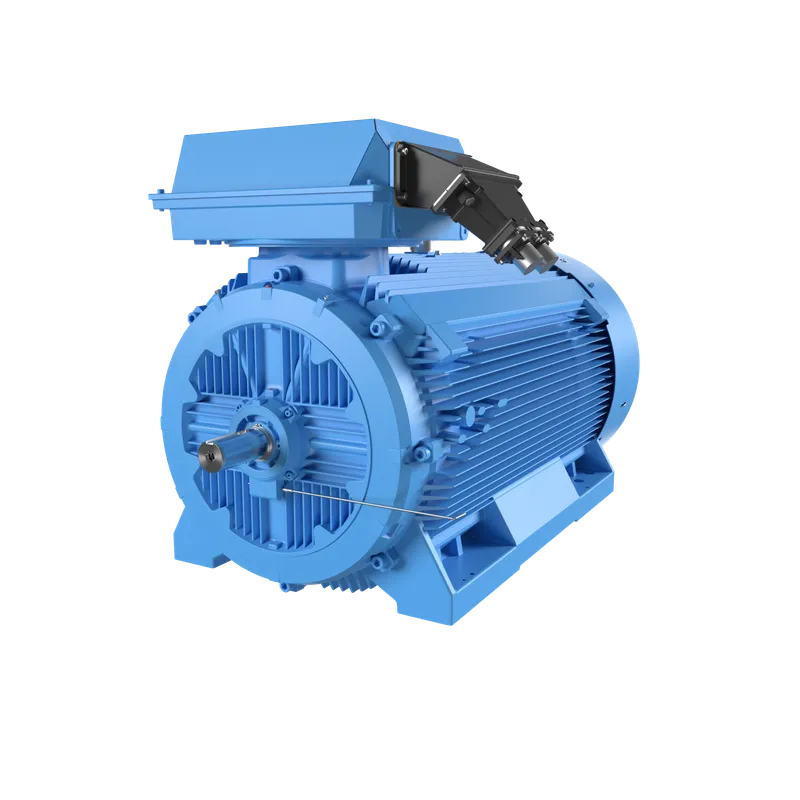

ABB M3GP 400LKD 6

Dust Ignition Proof IE3 Motors, 560 kW, 500 V (3GGP403840-AEK)

MPN: M3GP 400LKD 6
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB M3GP 400LKD 6?

Dust Ignition Proof IE3 Motors, 560 kW, 500 V (3GGP403840-AEK)

Specifications

Ordering

ABB Type Designation	M3GP 400LKD 6
Invoice Description	M3GP 400LKD 6
Product Name	3-Phase squirrel cage motor
Product Type	3GP3__M3GP_IE3_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015394
Medium Description	560kW, 6 Poles, Frame Size 400, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GGP403840-AEK)
Short Description	560kW, 6P, Frame Size 400, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	T3
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	560 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.8 %, Partial Load (75%) 95.6 %, Partial Load (50%) 95.3 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 95.8 %, Partial Load (75%) 95.6 %, Partial Load (50%) 94.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	400
Bearing	6324/C3
Bearing NDE	6319/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	1891 mm mm
Product Net Height	1065 mm mm
Product Net Width	840 mm mm
Product Net Weight	3400 kg kg
Gross Weight	3440 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
