Home / ABB / Flameproof IEC Low voltage motors / ABB 3GBA282250-BDJCN

ABB

ABB 3GBA282250-BDJCN

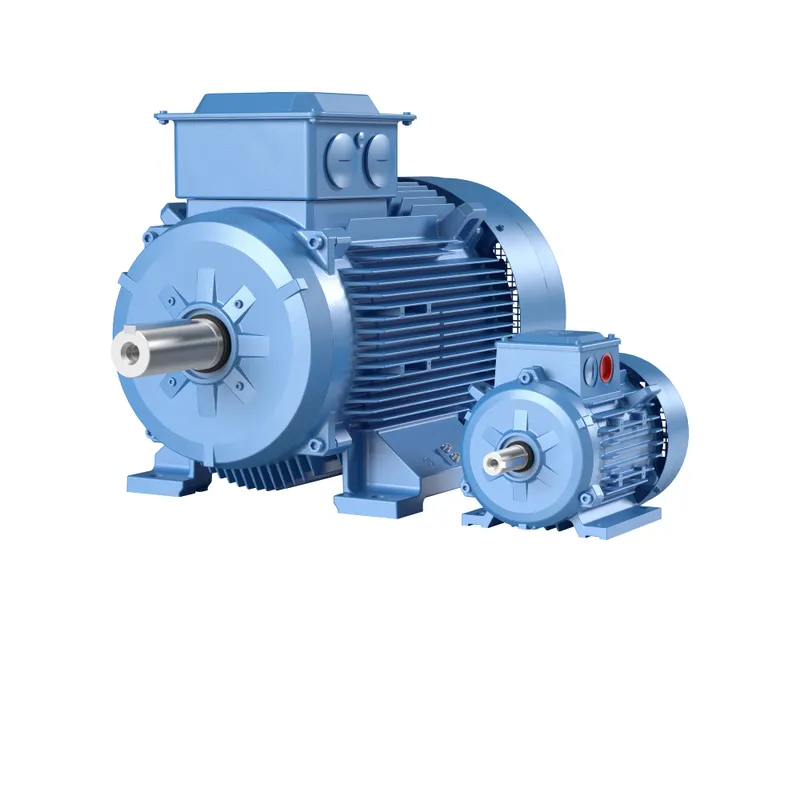

M2BAF 280SME 4

MPN: 3GBA282250-BDJCN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA282250-BDJCN?

(3GBA282250-BDJCN)

Specifications

Ordering

ABB Type Designation	M2BAF 280SME 4
Invoice Description	M2BAF 280SME 4
Product Name	3-Phase squirrel cage motor
Product Type	CBF2__M2BAF_IE2_CI
Country or Territory of Origin	China
Customs Tariff Number	85015381
Stocked At (Warehouses)	Shanghai, China, Guangzhou, China, China
Medium Description	?kW, 4P, Frame Size 280, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA282250-BDJCN) kW
Short Description	?kW, 4P, Frame Size 280, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 94.2 %, Partial Load (75%) 94.8 %, Partial Load (50%) 94.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	280
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	592 kg kg
Gross Weight	612 kg kg

External Classifications and Standards

UNSPSC

26101100

3GBA282250-BDJCN: frequently asked questions

When can 3GBA282250-BDJCN be shipped?

3GBA282250-BDJCN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBA282250-BDJCN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBA282250-BDJCN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA282250-BDJCN, subject to availability and destination.
