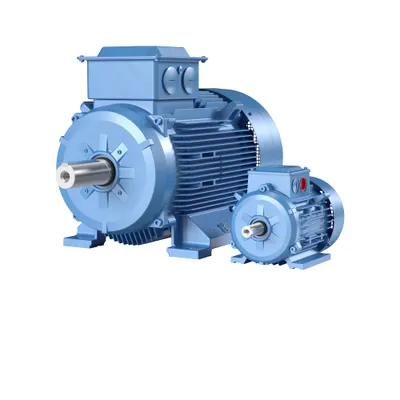

ABB 3GBA282250-BDH

M2BAX 280SME 4

MPN: 3GBA282250-BDH
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA282250-BDH?

IE2 High Efficiency Cast Iron Motors, 90 kW, 400 V (3GBA282250-BDH)

Specifications

Ordering

ABB Type Designation	M2BAX 280SME 4
Invoice Description	M2BAX 280SME 4
Product Name	3-Phase squirrel cage motor
Product Type	EBA2__M2BAX_CI
Country or Territory of Origin	China, Poland
Customs Tariff Number	85015381
Replaced Product ID (OLD)	3GBA282220-BDC, 3GBA282220-BDL
Medium Description	90kW, 4 Poles, Frame Size 280, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA282250-BDH)
Short Description	90kW, 4P, Frame Size 280, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	90 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 94.2 %, Partial Load (75%) 94.3 %, Partial Load (50%) 94.0 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 94.5 %, Partial Load (75%) 94.4 %, Partial Load (50%) 93.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	280
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1052 mm mm
Product Net Height	775 mm mm
Product Net Width	571 mm mm
Product Net Weight	590 kg kg
Gross Weight	610 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC

26101100
