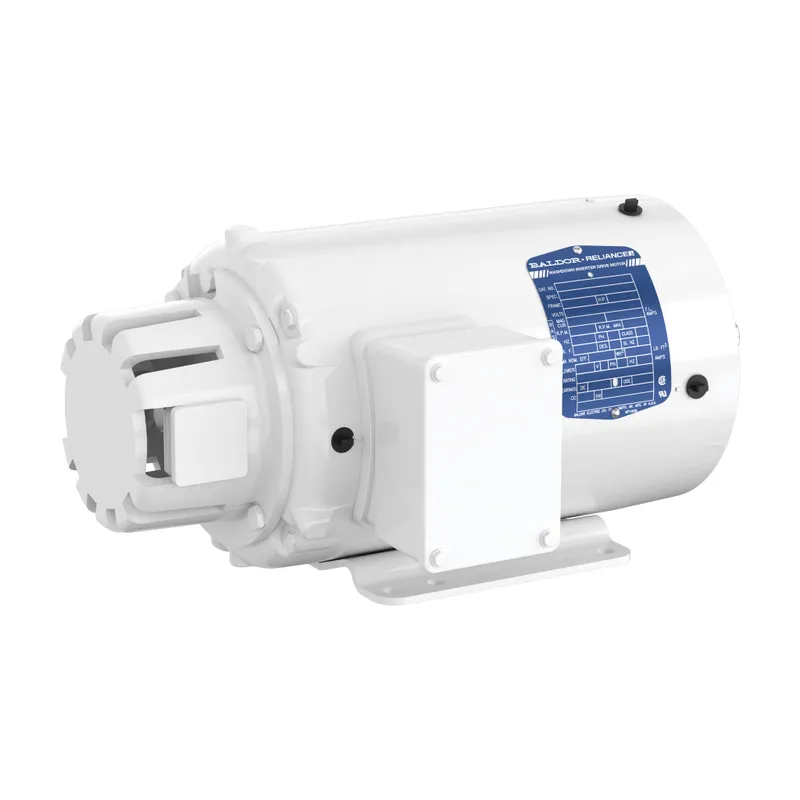

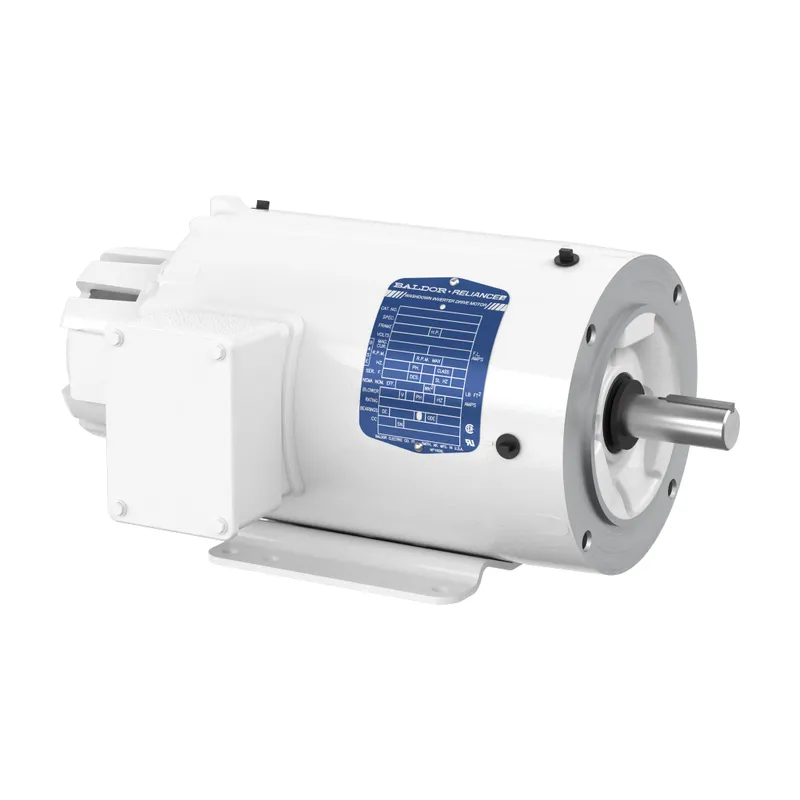

ABB IDWNM3546T

1HP,1770RPM,3PH,60HZ,143TC,3522M,TE

MPN: IDWNM3546T
Category: White Washdown

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB IDWNM3546T?

Washdown Motor 1 Hp 230 V (IDWNM3546T)

Specifications

Ordering

Catalog Number	IDWNM3546T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	66 %
Rated Efficiency	85.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Steel
Motor Frame Size	143TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	41 lb
Product Net Width	13.75 in
Dimension Diagram	35LYTT996

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
