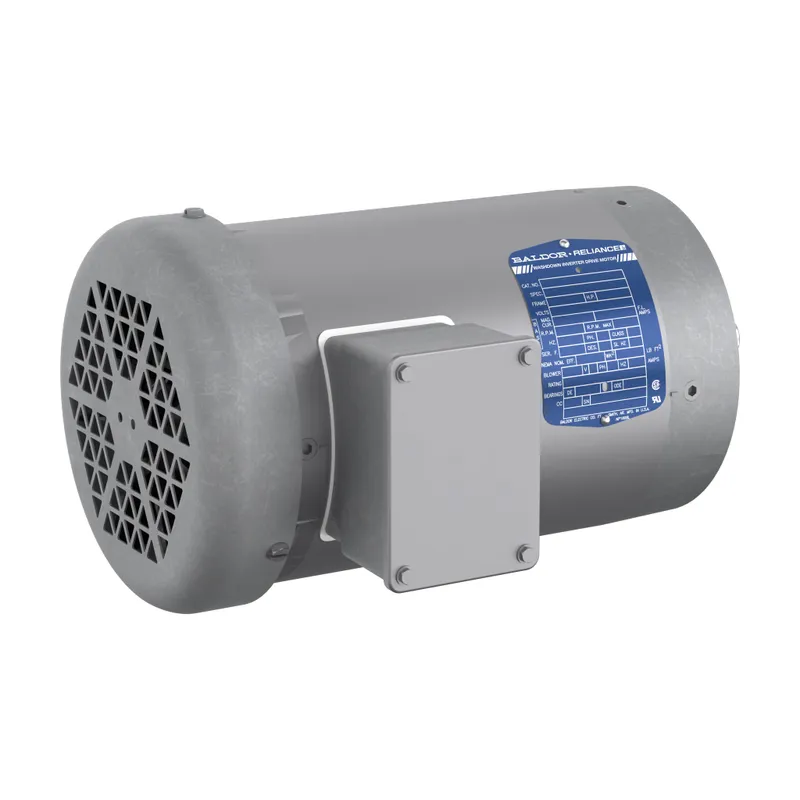

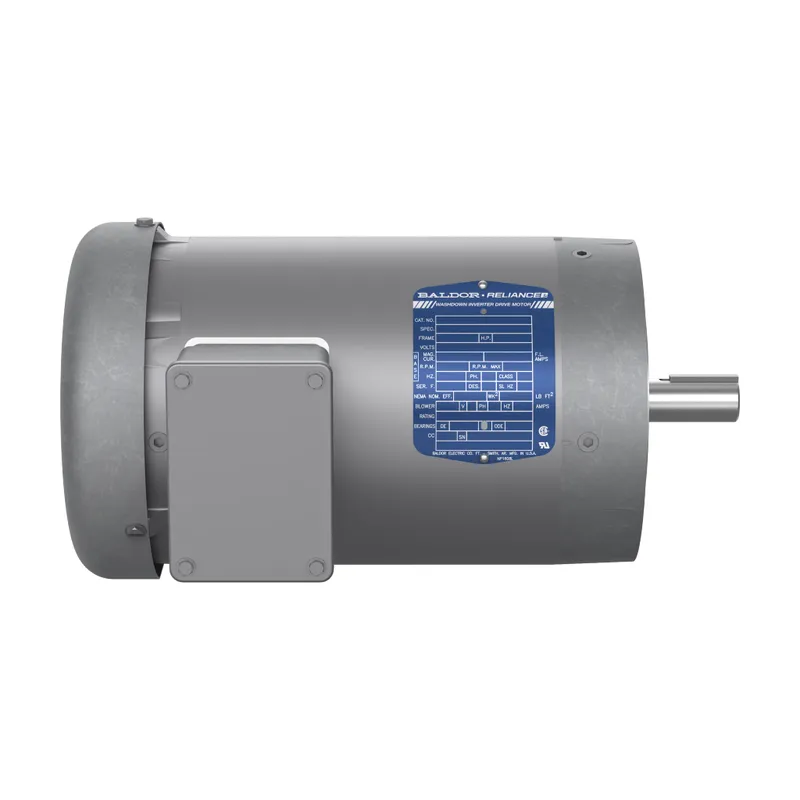

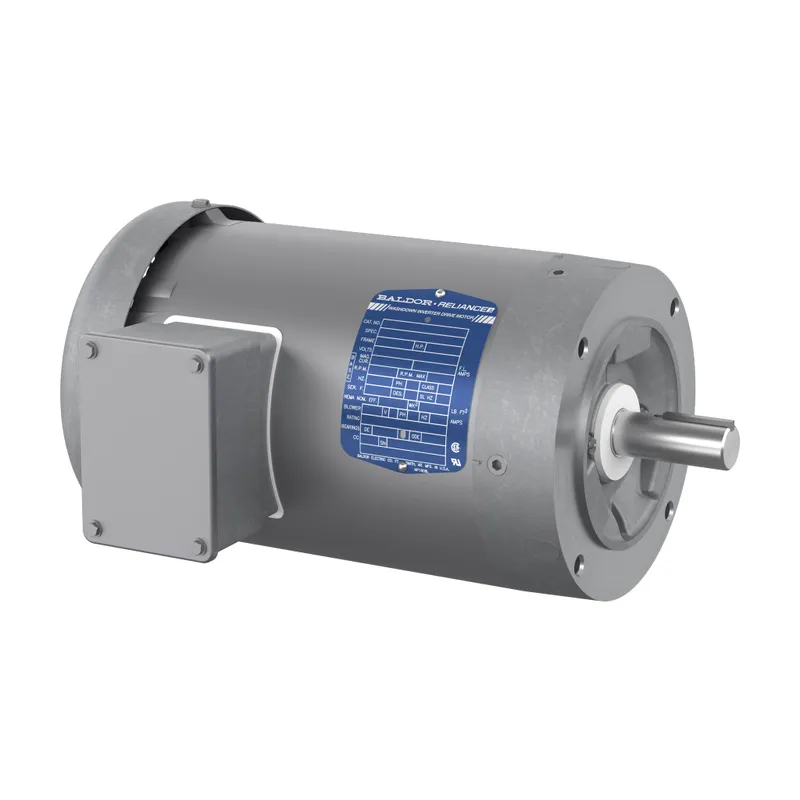

ABB IDVSWDM3558T

2HP,1760RPM,3PH,60HZ,145TC,3528M,TE

MPN: IDVSWDM3558T
Category: Paint Free

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB IDVSWDM3558T?

Washdown Motor 2 Hp 230 V (IDVSWDM3558T)

Specifications

Ordering

Catalog Number	IDVSWDM3558T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	75 %
Rated Efficiency	86.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	2 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Stainless Steel
Motor Frame Size	145TC
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	46 lb
Product Net Width	13.75 in
Dimension Diagram	35LYSS636

Certificates and Declarations

Certification Agency	CSA, CSA EEV, NEMA PREMIUM, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
