ABB IDFRPM25304C
30HP,1750,460V,FL2570,TEFC,F3
- MPN
- IDFRPM25304C
- Category
- HydroCool XT
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB IDFRPM25304C?

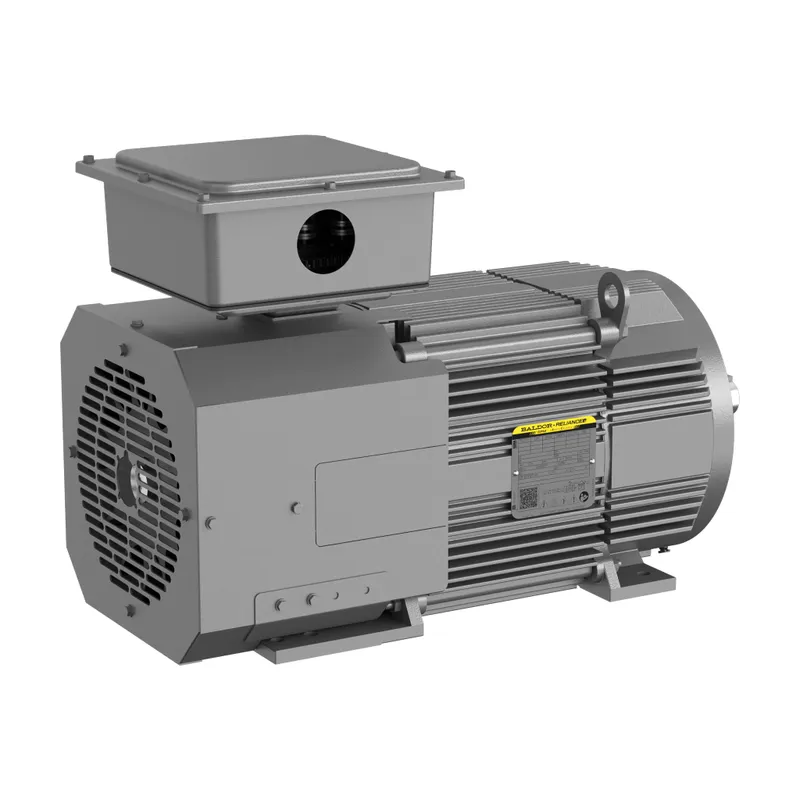

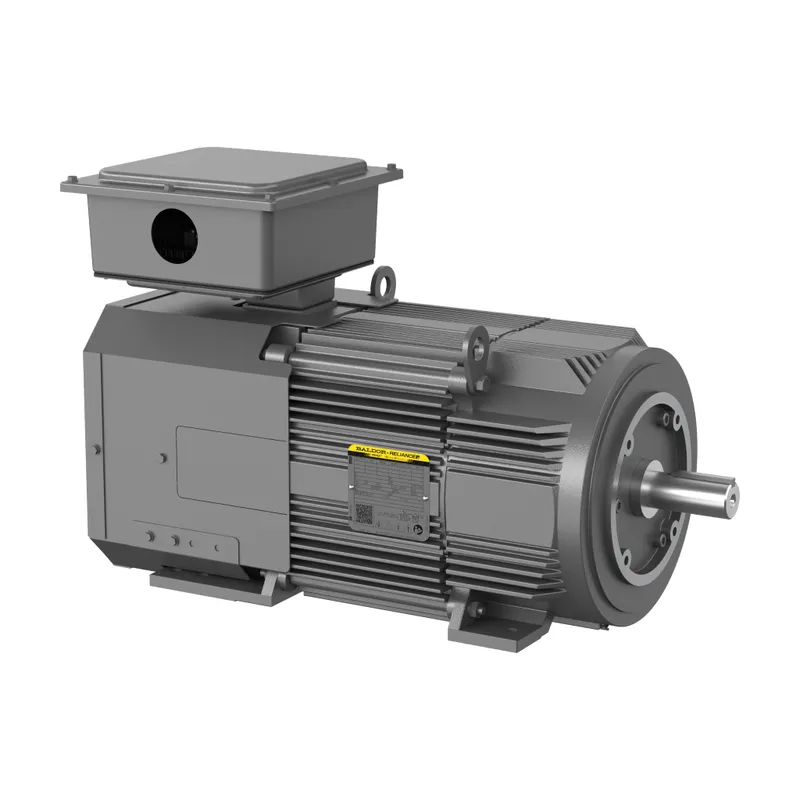

AC VS Laminated Frame - RPMAC 30 Hp 460 V (IDFRPM25304C)
Specifications
Ordering
| Catalog Number | IDFRPM25304C |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Insulation Class | H |
| Number of Phases | 3-phase |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 30 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Explosed Laminations |
| Motor Frame Size | FL2570C |
| Motor Base Type | Foot Mounted |
| Mounting Position | F3 |
| Brake Present | No |
Dimensions
| Product Net Height | 21.5 in |
| Product Net Weight | 513.001 lb |
| Product Net Width | 30 in |
| Dimension Diagram | 617573-083 |
Certificates and Declarations
| Certification Agency | CCSA US, UR |
| IDEA Granular Category Code (IGCC) | 1328 >> Multi phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
