Home / ABB / HydroCool XT / ABB IDFRPM21204C

ABB

ABB IDFRPM21204C

20HP,1750,460V,FL2162,TEFC,F3

MPN: IDFRPM21204C
Category: HydroCool XT

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB IDFRPM21204C?

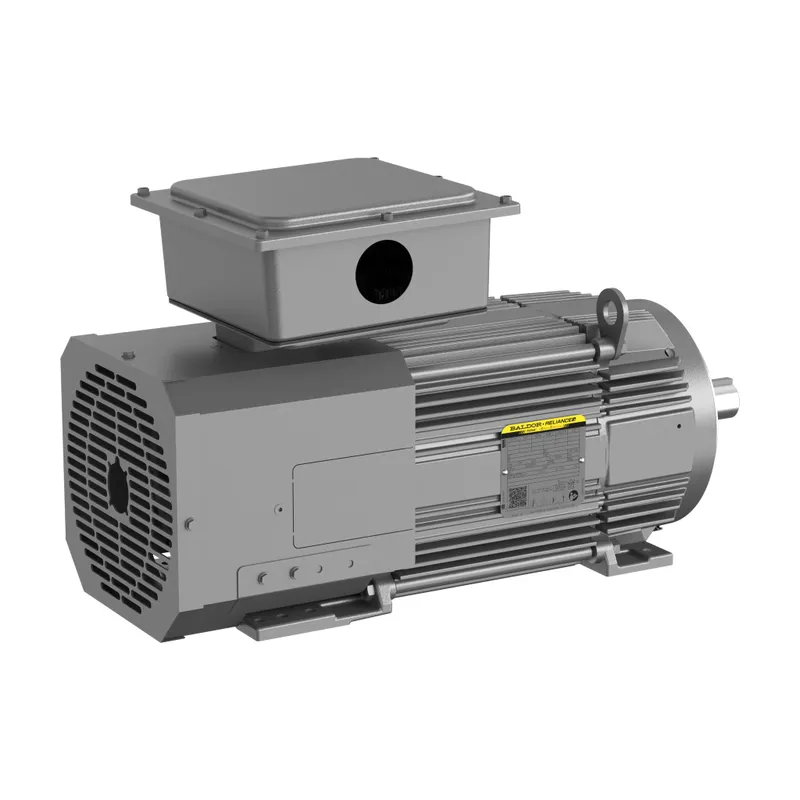

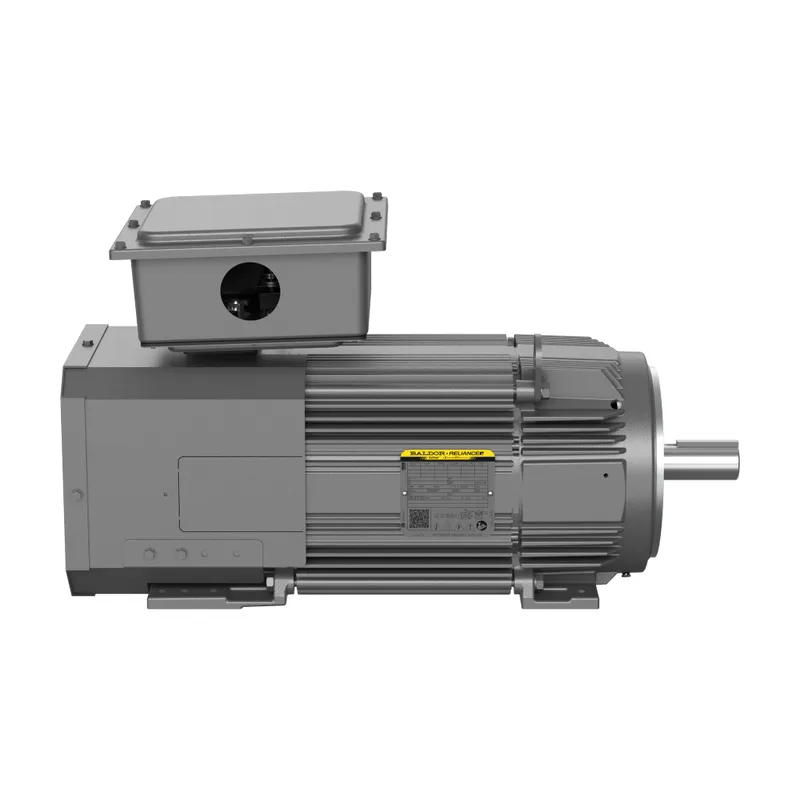

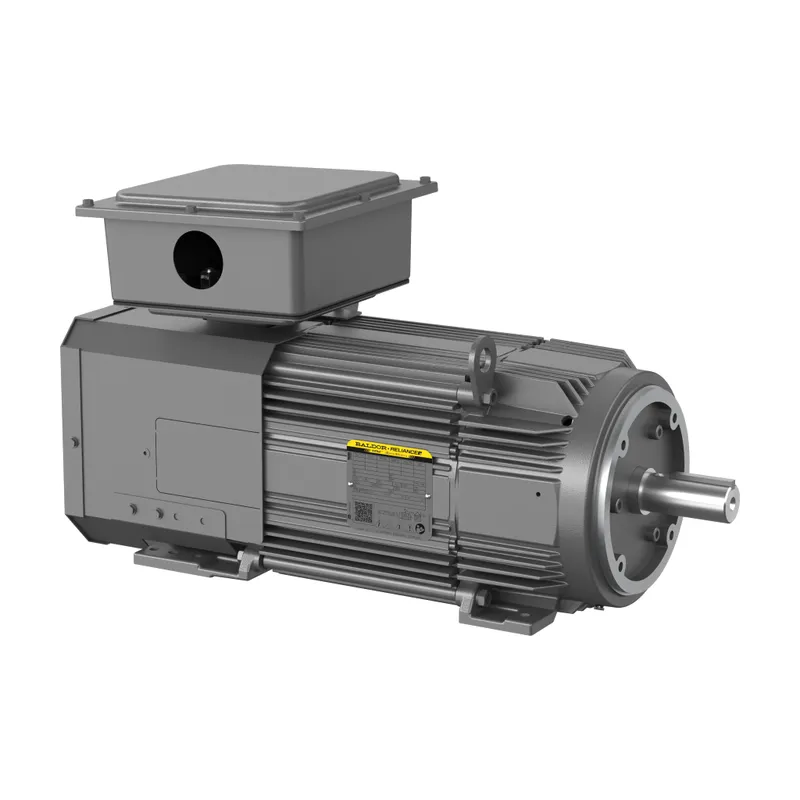

AC VS Laminated Frame - RPMAC 20 Hp 460 V (IDFRPM21204C)

Specifications

Ordering

Catalog Number	IDFRPM21204C
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
Service Factor	1.00
Type of Duty	Continuous
Synchronous Speed (vsyn)	1800 r/min
Output Power	20 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Explosed Laminations
Motor Frame Size	FL2162CZ
Motor Base Type	Foot Mounted
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	25 in
Product Net Weight	329.001 lb
Product Net Width	26.5 in
Dimension Diagram	617517-083

Certificates and Declarations

Certification Agency	CCSA US, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
