Home / ABB / RPM AC Inverter Duty / ABB IDCRPM25504

ABB

ABB IDCRPM25504

50HP,1800,460V,FL2570,TEFC,F3

MPN: IDCRPM25504
Category: RPM AC Inverter Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB IDCRPM25504?

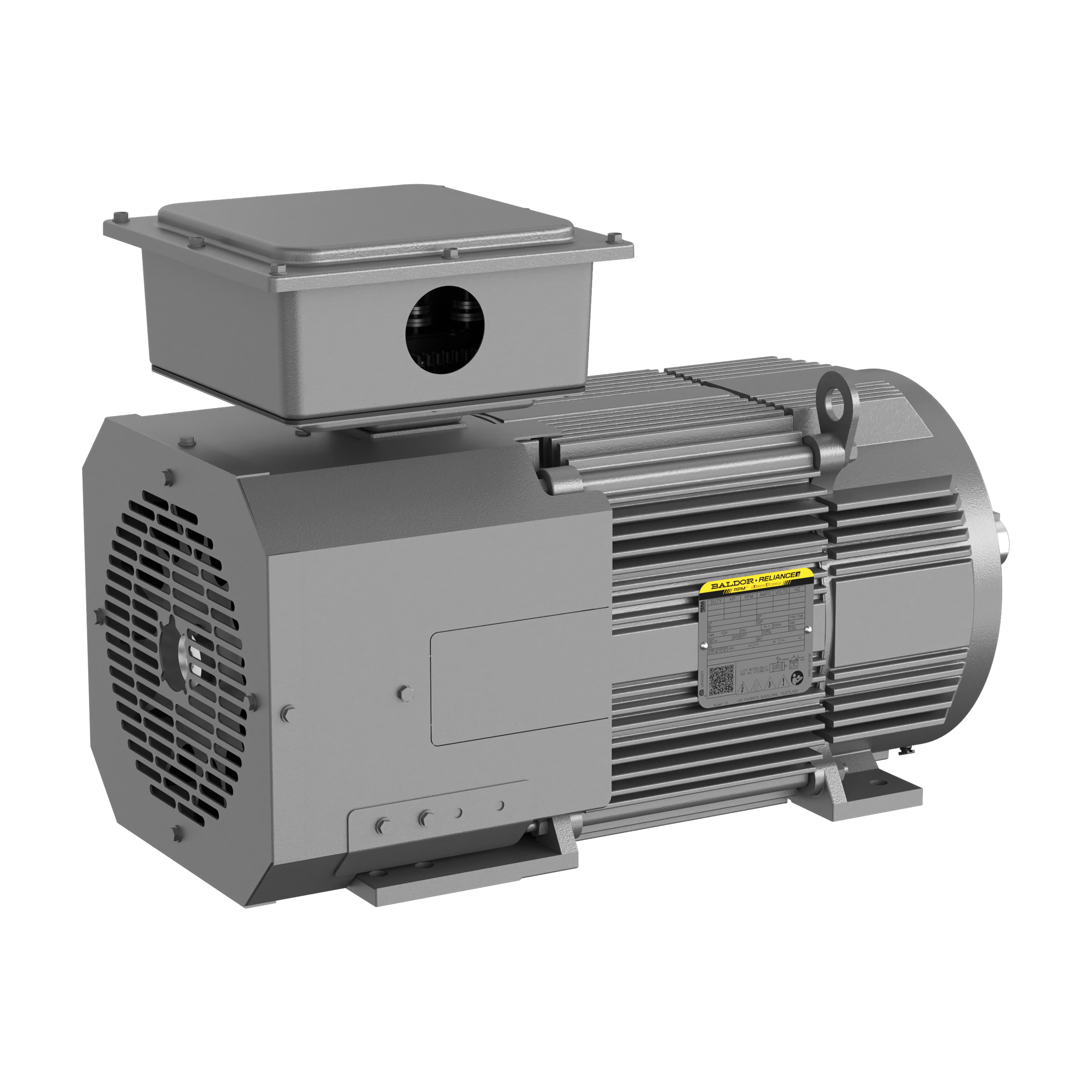

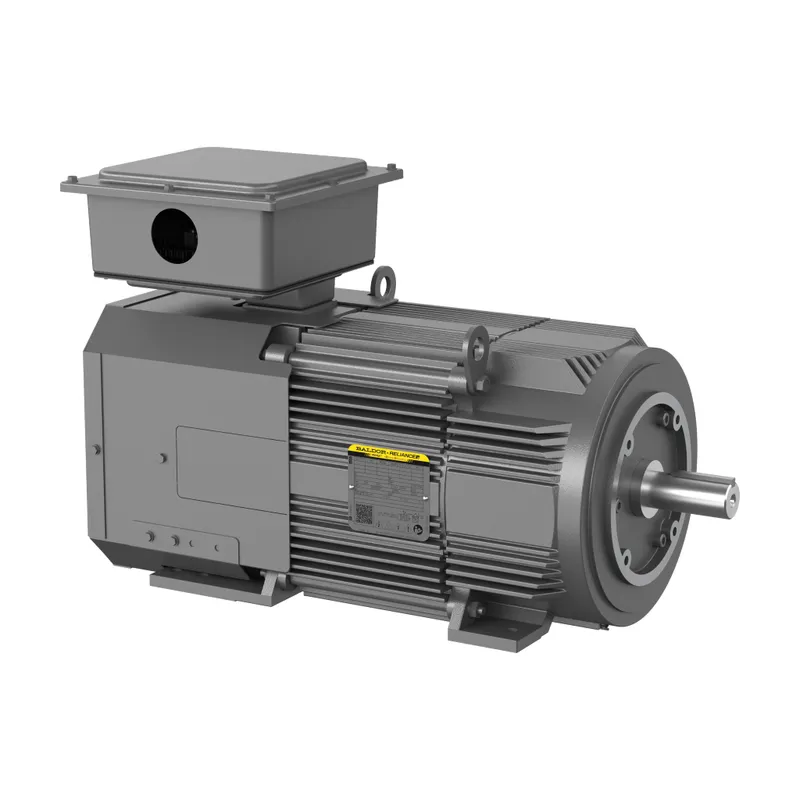

eXtreme Efficient RPMAC Motors 50 Hp 460 V (IDCRPM25504)

Specifications

Ordering

Catalog Number	IDCRPM25504
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Full Load Start
Synchronous Speed (vsyn)	1800 r/min
Output Power	50 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Explosed Laminations
Motor Frame Size	FL2570Z
Motor Base Type	Foot Mounted
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	536 lb
Product Net Width	0 in
Dimension Diagram	617573-073

Certificates and Declarations

Certification Agency	CCSA US, NEMA_PREMIUM
ETIM 7	EC001851 - Electric motor

IDCRPM25504: frequently asked questions

When can IDCRPM25504 be shipped?

IDCRPM25504 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IDCRPM25504 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IDCRPM25504 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IDCRPM25504, subject to availability and destination.
