ABB

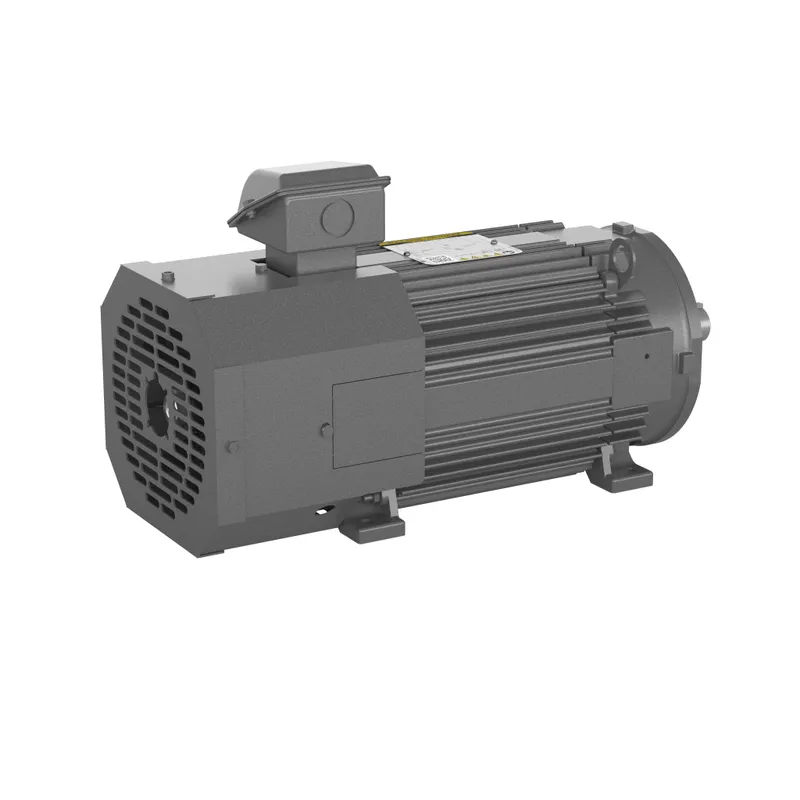

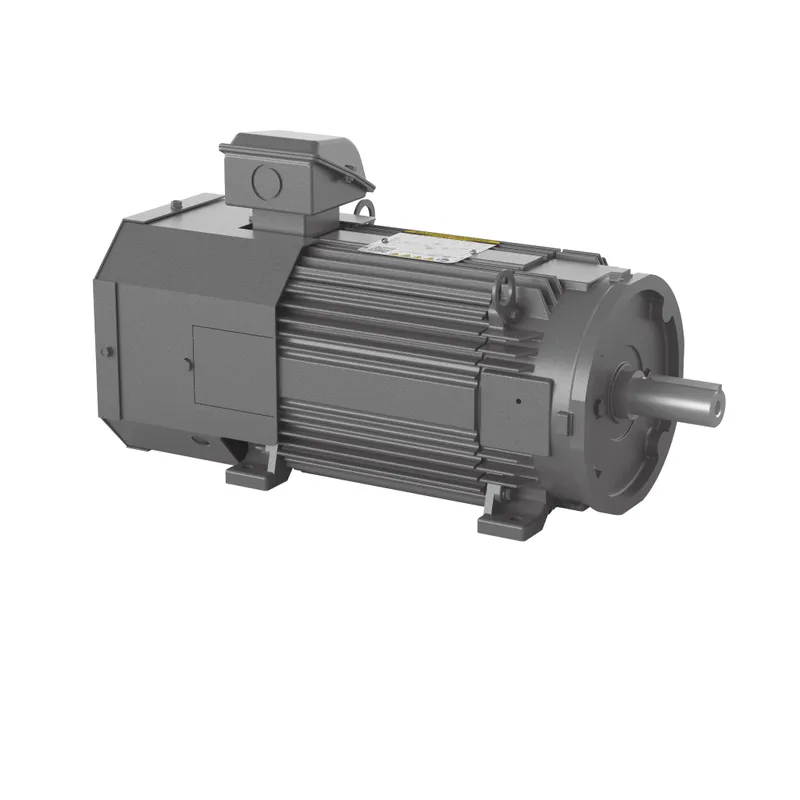

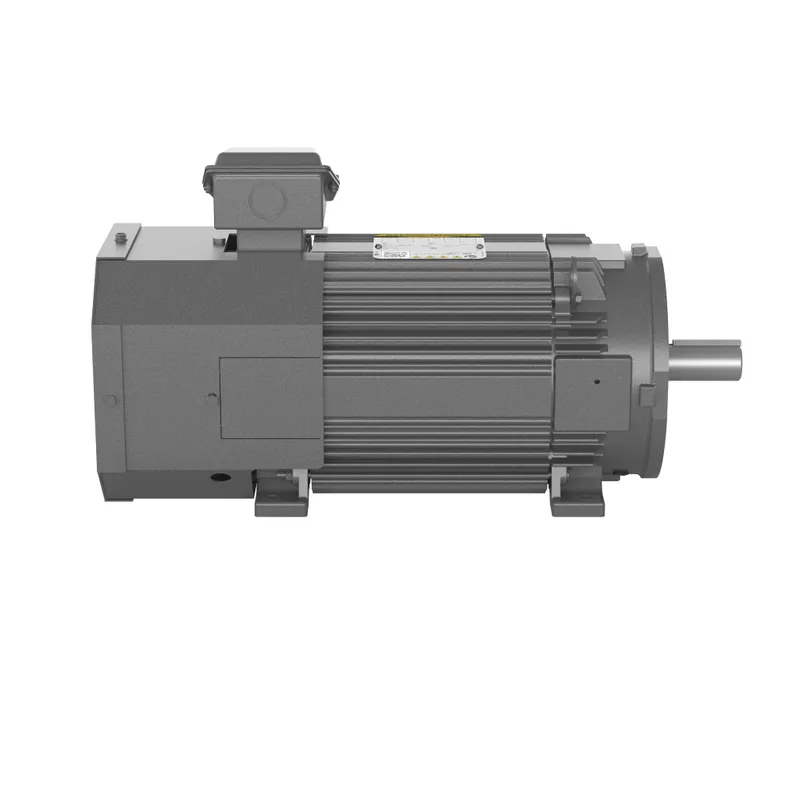

ABB IDCRPM18104

10HP,1800,460V,FL1838,TEFC,F3

MPN: IDCRPM18104
Category: RPM AC Inverter Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB IDCRPM18104?

eXtreme Efficient RPMAC 10 Hp 460 V (IDCRPM18104)

Specifications

Ordering

Catalog Number	IDCRPM18104
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Full Load Start
Synchronous Speed (vsyn)	1800 r/min
Output Power	10 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Explosed Laminations
Motor Frame Size	FL1838Z
Motor Base Type	Foot Mounted
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	21 in
Product Net Weight	187.001 lb
Product Net Width	18.5 in
Dimension Diagram	617229-001

Certificates and Declarations

Certification Agency	CCSA US, NEMA_PREMIUM
ETIM 7	EC001851 - Electric motor
