ABB

ABB HBEM3611T

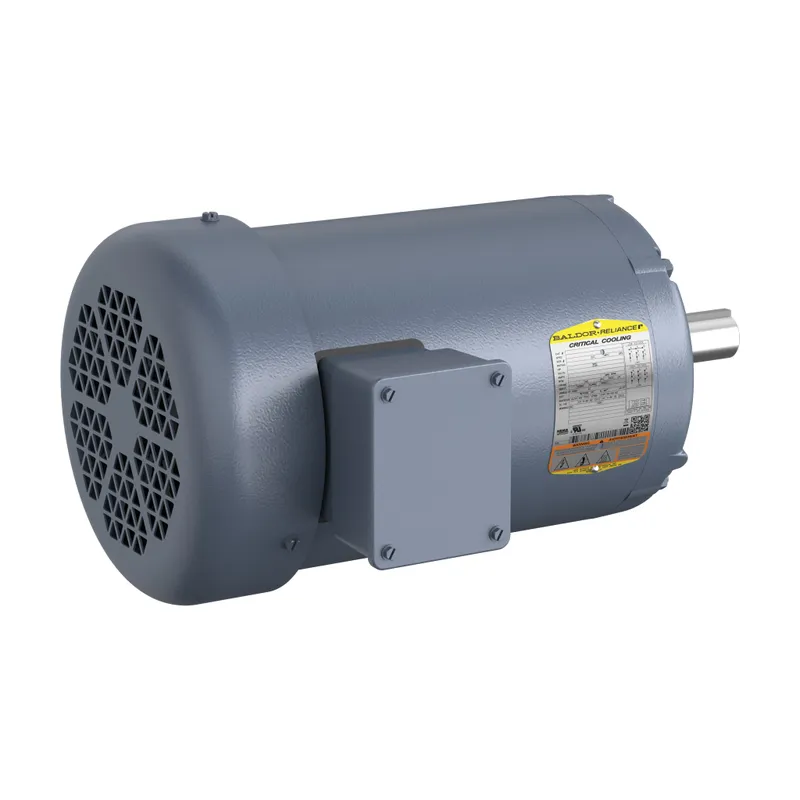

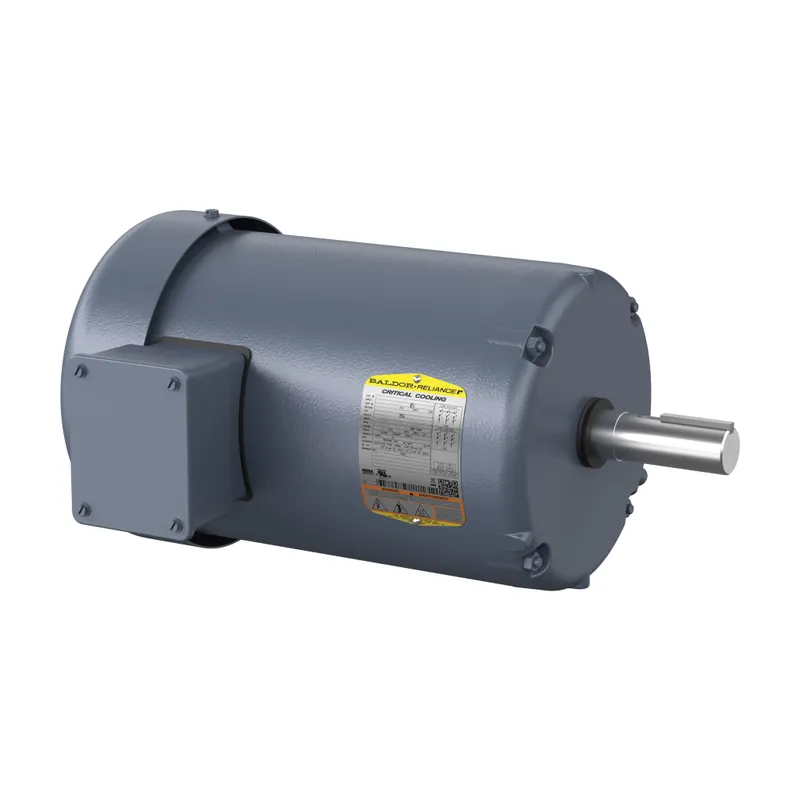

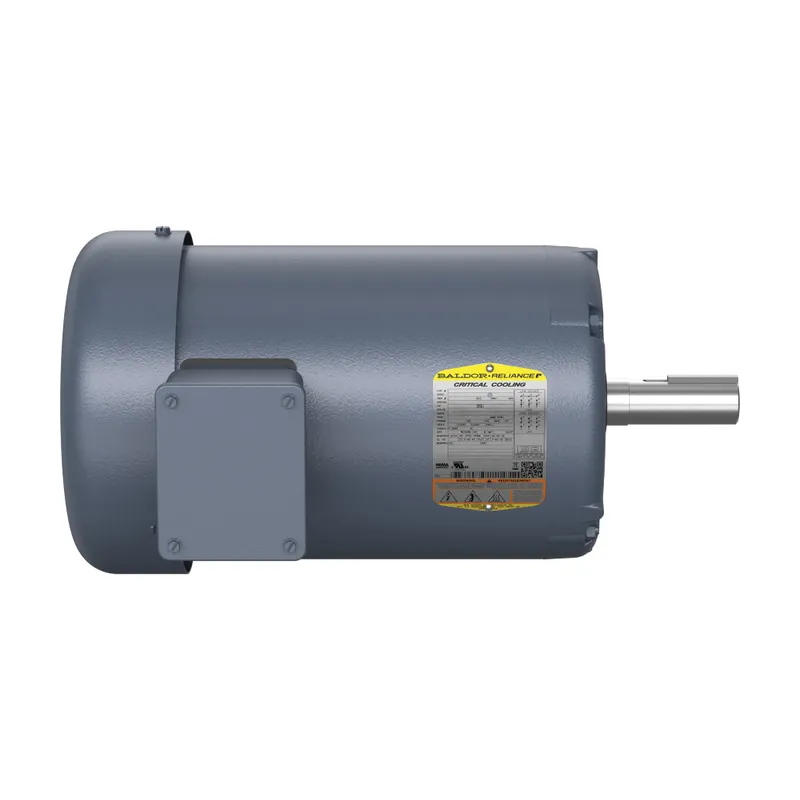

32M 4P TEFC HOR 182T

MPN: HBEM3611T
Category: Critical Cooling

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB HBEM3611T?

Critical Cooling 3 Hp 230 V (HBEM3611T)

Specifications

Ordering

Catalog Number	HBEM3611T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	84149000
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	75 %
Rated Efficiency	89.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	3 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	182T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	73 lb
Product Net Width	16.125 in
Dimension Diagram	36LYT429

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, WEEE
ETIM 7	EC001851 - Electric motor
