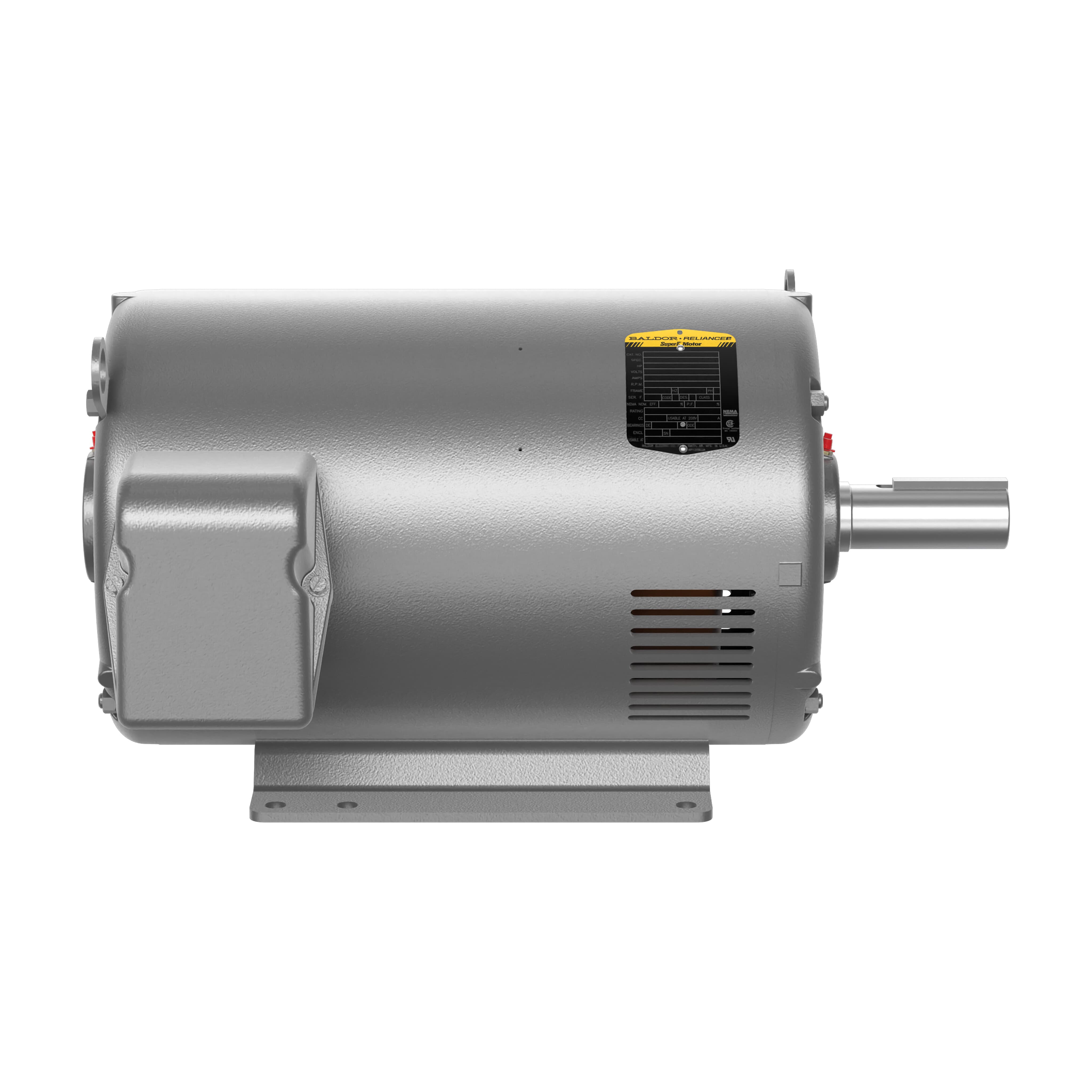

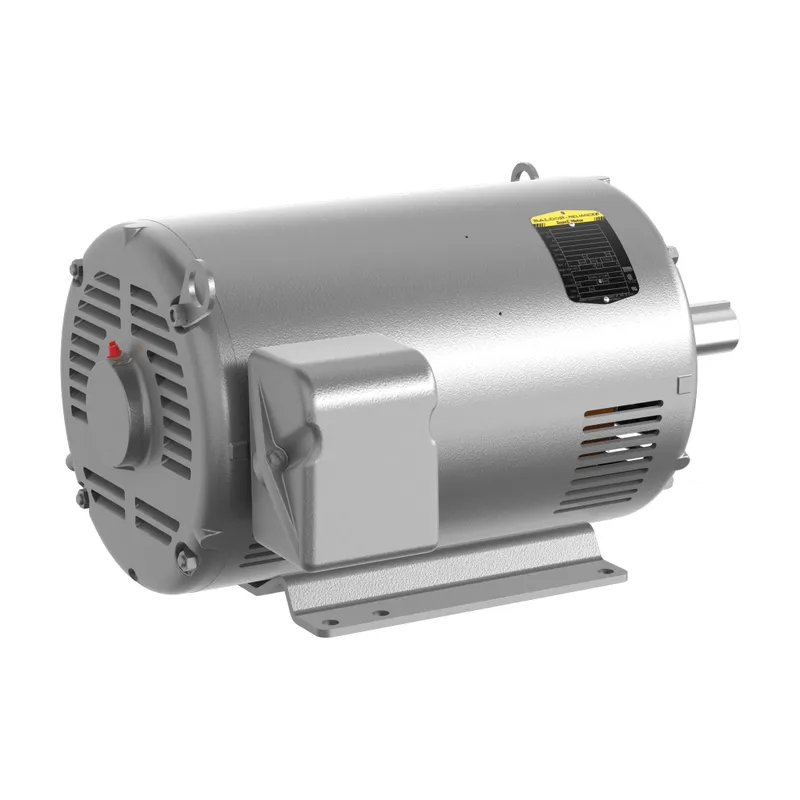

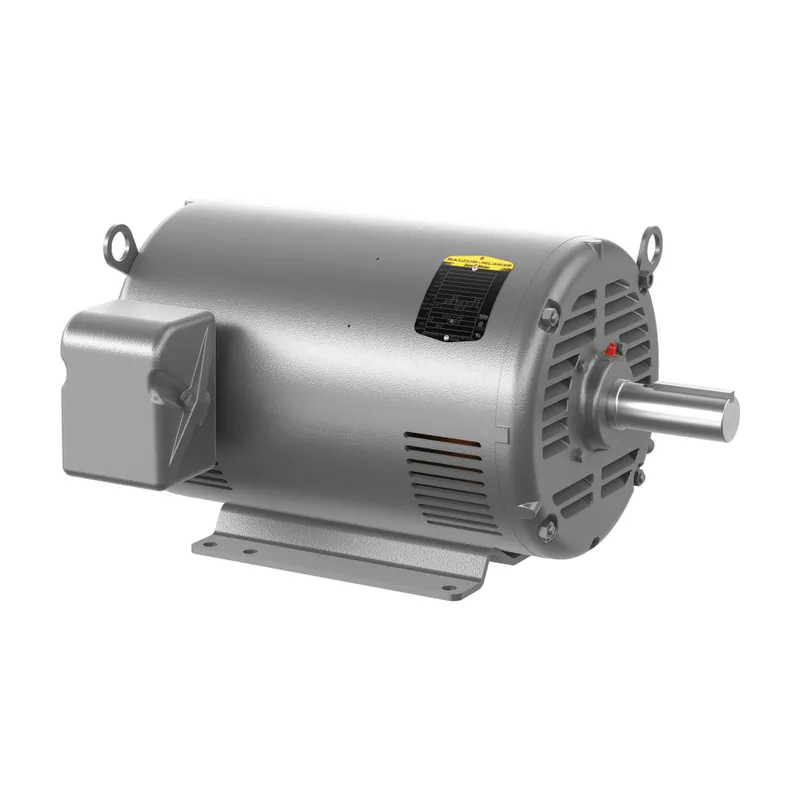

ABB GNEM2506T-G
7.5HP//5KW,1180//980RPM,3PH,60//50H
- MPN
- GNEM2506T-G
- Category
- Shaft grounded
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB GNEM2506T-G?
Shaft Ground Motors 5 kW 190 V (GNEM2506T-G)
Specifications
Ordering
| Catalog Number | GNEM2506T-G G |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | single_speed |
| Power Factor | 69 % |
| Rated Efficiency | 90.2 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1000 r/min, 1200 r/min |
| Output Power | 5 kW, 7.5 Hp kW |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | OPSB |
| Frame Material | Steel |
| Motor Frame Size | 256T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 248 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | CE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE |
GNEM2506T-G: frequently asked questions
When can GNEM2506T-G be shipped?
GNEM2506T-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GNEM2506T-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GNEM2506T-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GNEM2506T-G, subject to availability and destination.
