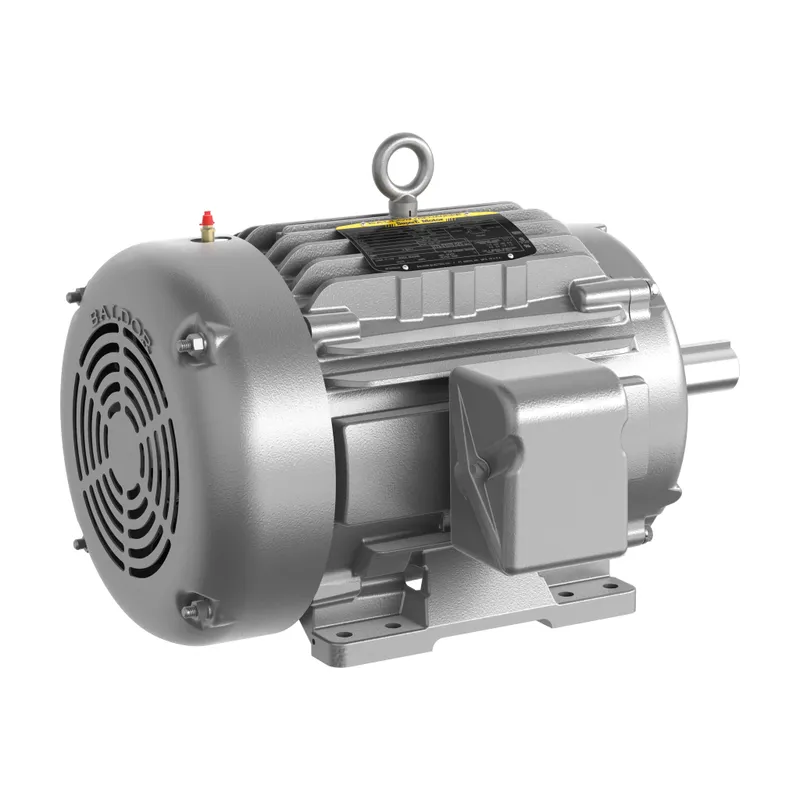

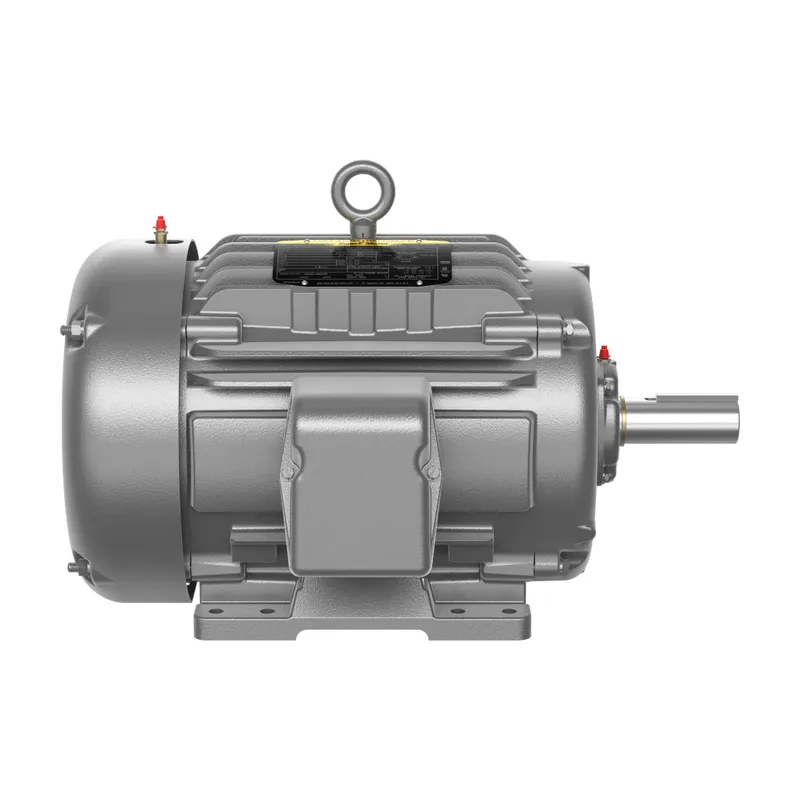

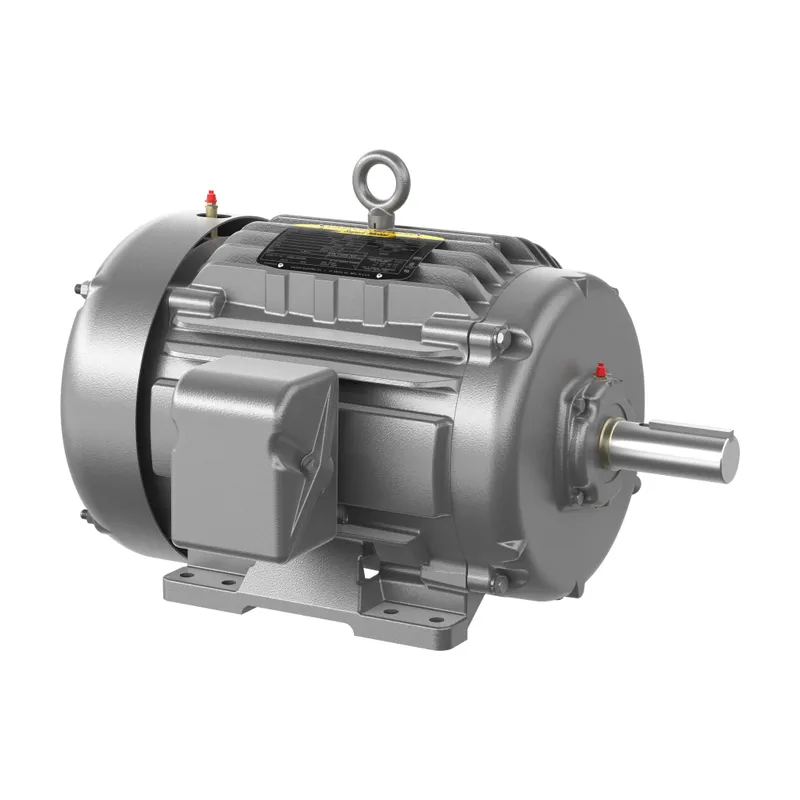

ABB GNEM2334T

20HP//15KW,1770//1465RPM,3PH,60//50

MPN: GNEM2334T
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB GNEM2334T?

General Purpose Motor 15 kW 190 V (GNEM2334T)

Specifications

Ordering

Catalog Number	GNEM2334T
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	83 %
Rated Efficiency	93.0 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1500 r/min, 1800 r/min
Output Power	15 kW, 20 Hp kW

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	256T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	322 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE
