ABB

ABB FPM2542T-5

50HP,3525RPM,3PH,60HZ,324TS,4044M,O

MPN
FPM2542T-5
Category
Fire pump
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB FPM2542T-5?

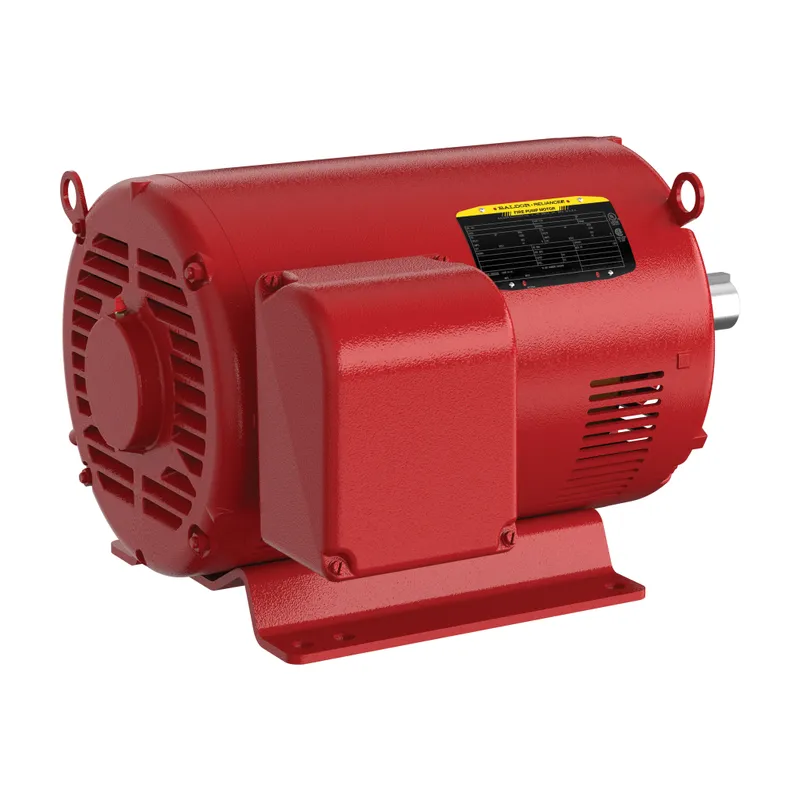

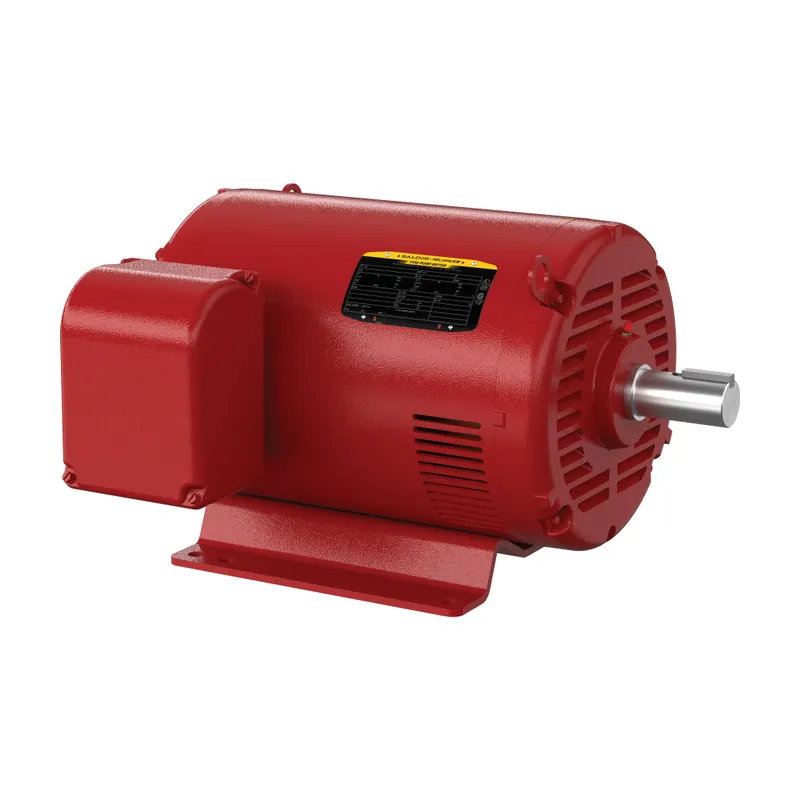

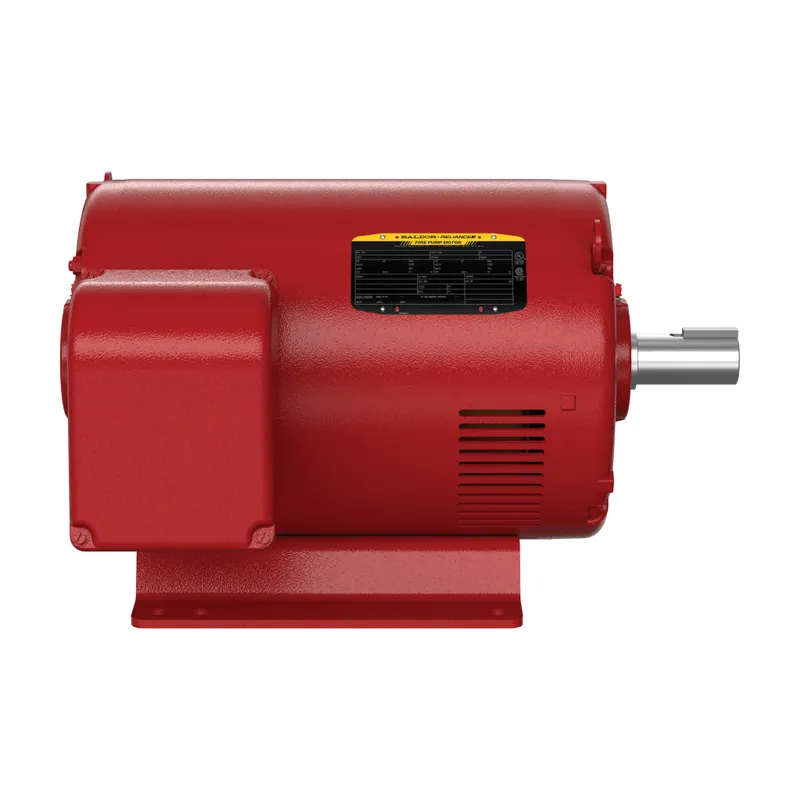

Pump Motor 50 Hp 575 V (FPM2542T-5)

Specifications

Ordering

Catalog NumberFPM2542T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelEnergy Efficiency (NEMA 12-11)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor87 %
Rated Efficiency92.40 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)3600 r/min
Output Power50 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size324TS
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight449 lb
Product Net Width23.75 in
Dimension Diagram40LYH007

Certificates and Declarations

Certification AgencyCSA EEV, CULUS
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor
