ABB

ABB FPM2539TS-5

40HP,1770RPM,3PH,60HZ,324TS,4052M,O

MPN
FPM2539TS-5
Category
Fire pump
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

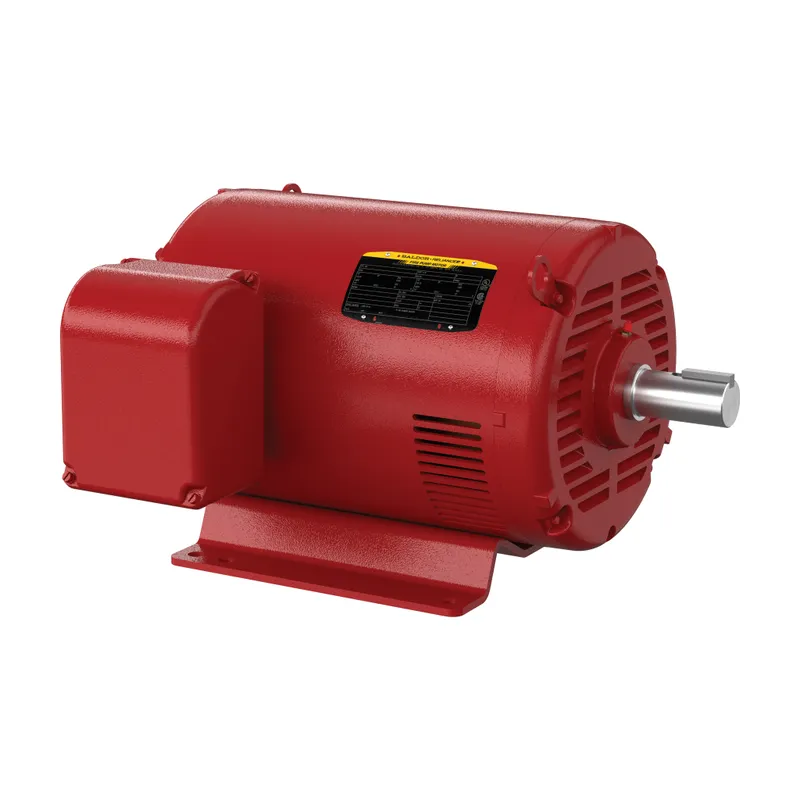

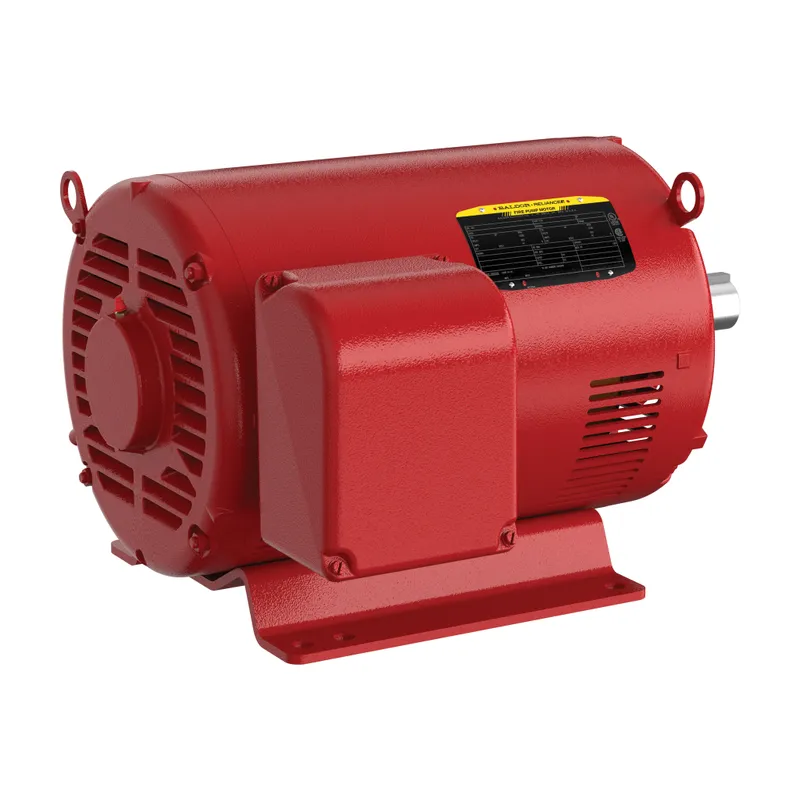

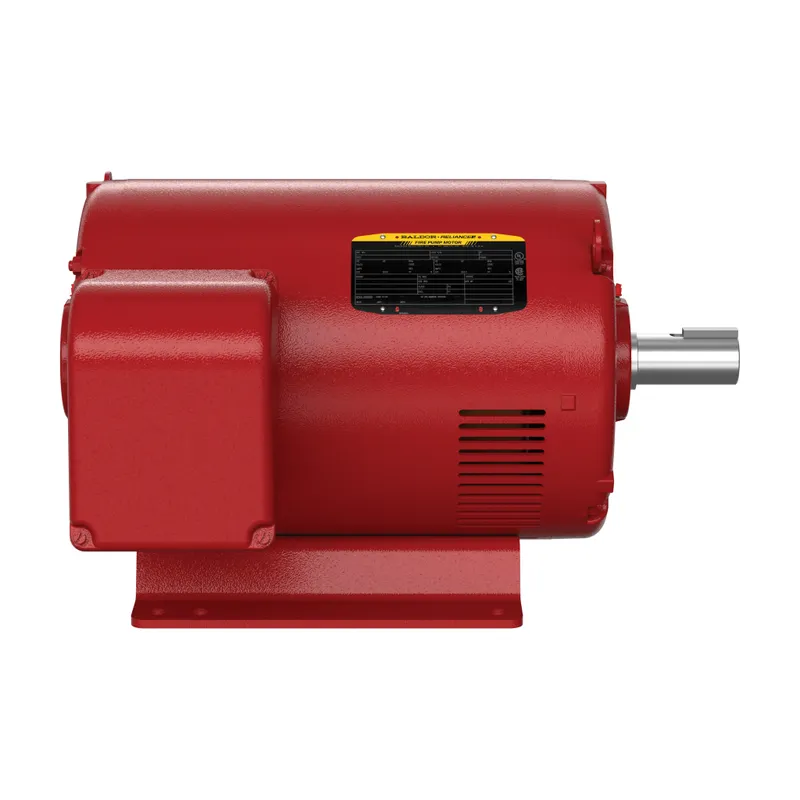

What is the ABB FPM2539TS-5?

Pump Motor 40 Hp 575 V (FPM2539TS-5)

Specifications

Ordering

Catalog NumberFPM2539TS-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelEnergy Efficiency (NEMA 12-11)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor83 %
Rated Efficiency93 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)1800 r/min
Output Power40 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size324TS
Motor Base TypeRigid
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight3850 lb
Product Net Width23.75 in
Dimension Diagram40LYH007

Certificates and Declarations

Certification AgencyCSA EEV, UL
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor

FPM2539TS-5: frequently asked questions

When can FPM2539TS-5 be shipped?

FPM2539TS-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FPM2539TS-5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FPM2539TS-5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FPM2539TS-5, subject to availability and destination.
