Home / ABB / Fire pump / ABB FPM2531TS
ABB

ABB FPM2531TS

25//20HP,1760//1460RPM,3PH,60//50HZ

MPN
FPM2531TS
Category
Fire pump
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB FPM2531TS?

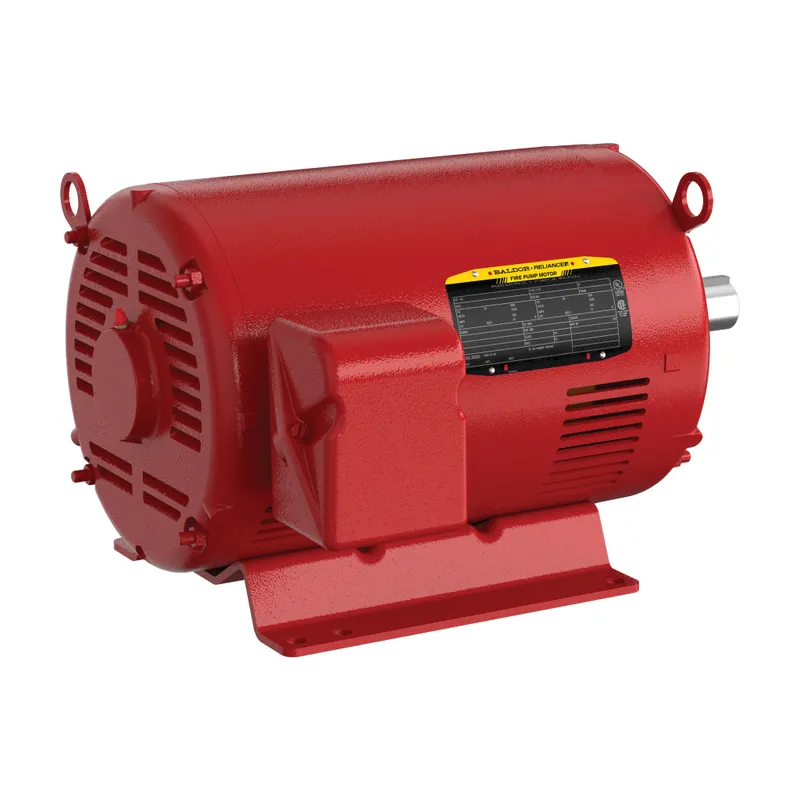

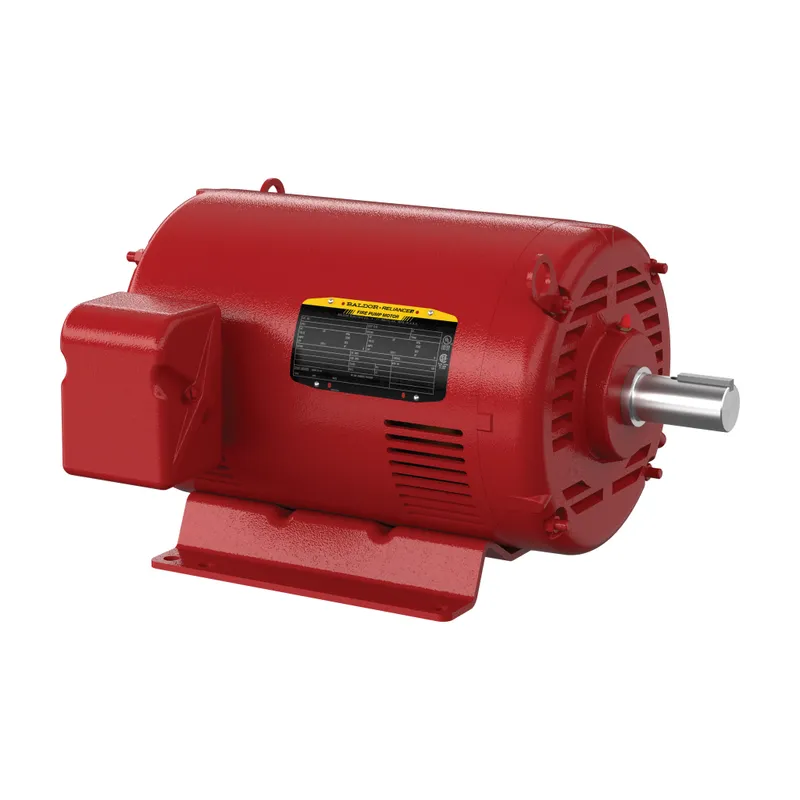

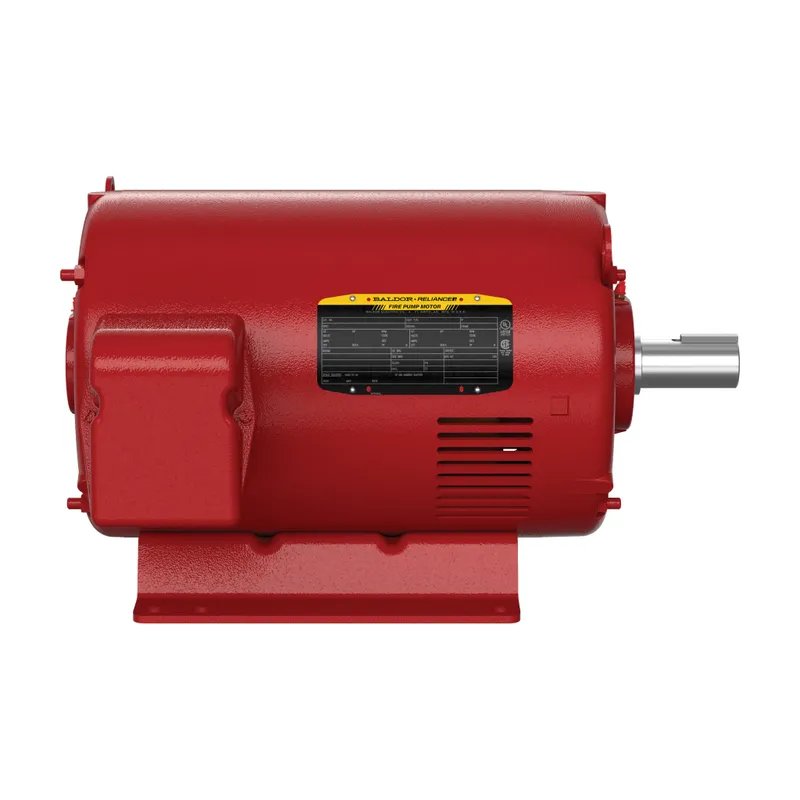

Pump Motor 20 Hp 190 V (FPM2531TS)

Specifications

Ordering

Catalog NumberFPM2531TS
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelEnergy Efficiency (NEMA 12-11), Not Regulated / Exempt
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor87 %
Rated Efficiency92.40 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)1800 r/min
Output Power20 Hp, 25.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size284TS
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height21 in
Product Net Weight275.999 lb
Product Net Width32.5 in
Dimension Diagram39LYR082

Certificates and Declarations

Certification AgencyCSA EEV, CULUS, CURUS, UR
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor

FPM2531TS: frequently asked questions

When can FPM2531TS be shipped?

FPM2531TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FPM2531TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FPM2531TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FPM2531TS, subject to availability and destination.
