ABB

ABB FPM2515T-5

20HP,1755RPM,3PH,60HZ,256T,3936M,OP

MPN
FPM2515T-5
Category
Fire pump
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB FPM2515T-5?

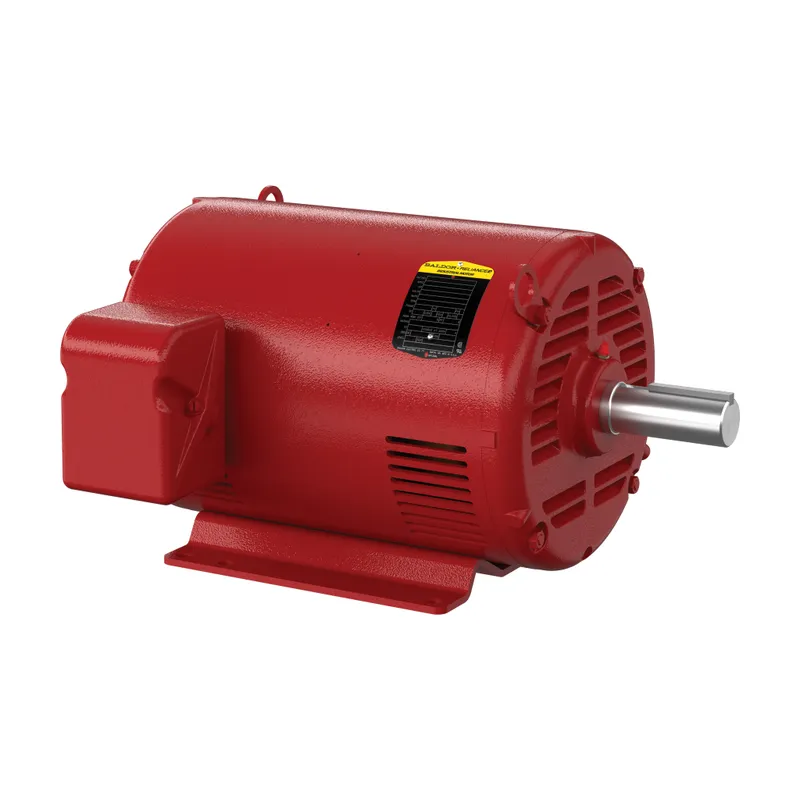

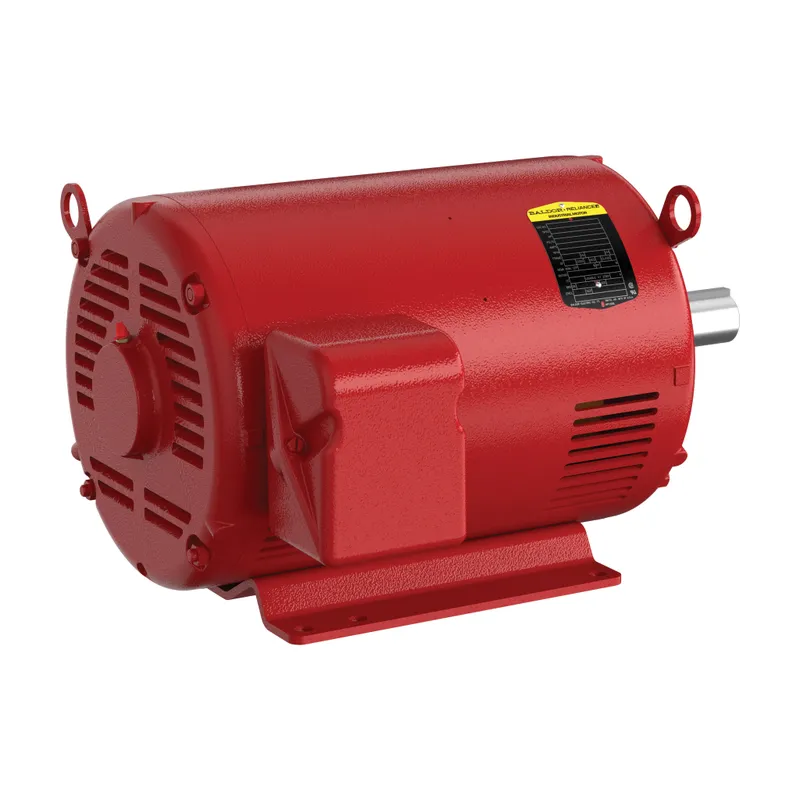

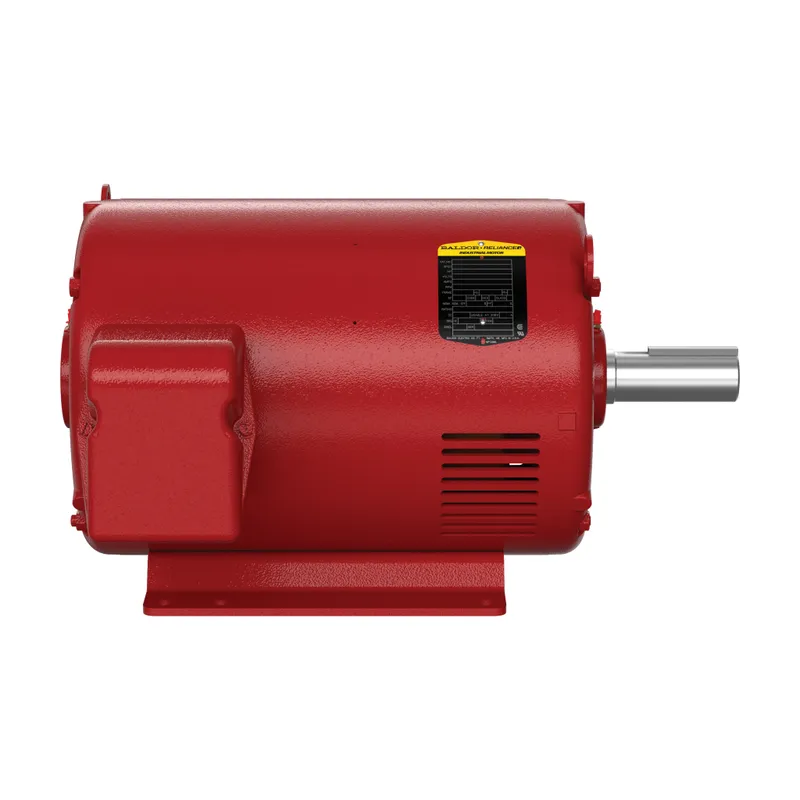

Pump Motor 20 Hp 575 V (FPM2515T-5)

Specifications

Ordering

Catalog NumberFPM2515T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelEnergy Efficiency (NEMA 12-11)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor83 %
Rated Efficiency91 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)1800 r/min
Output Power20 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeOPSB
Frame MaterialSteel
Motor Frame Size256T
Motor Base TypeRigid
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19 in
Product Net Weight231 lb
Product Net Width19.5 in
Dimension Diagram39LYD101

Certificates and Declarations

Certification AgencyCSA EEV, UL
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor
