Home / ABB / Fan and blower / ABB ERM3108

ABB

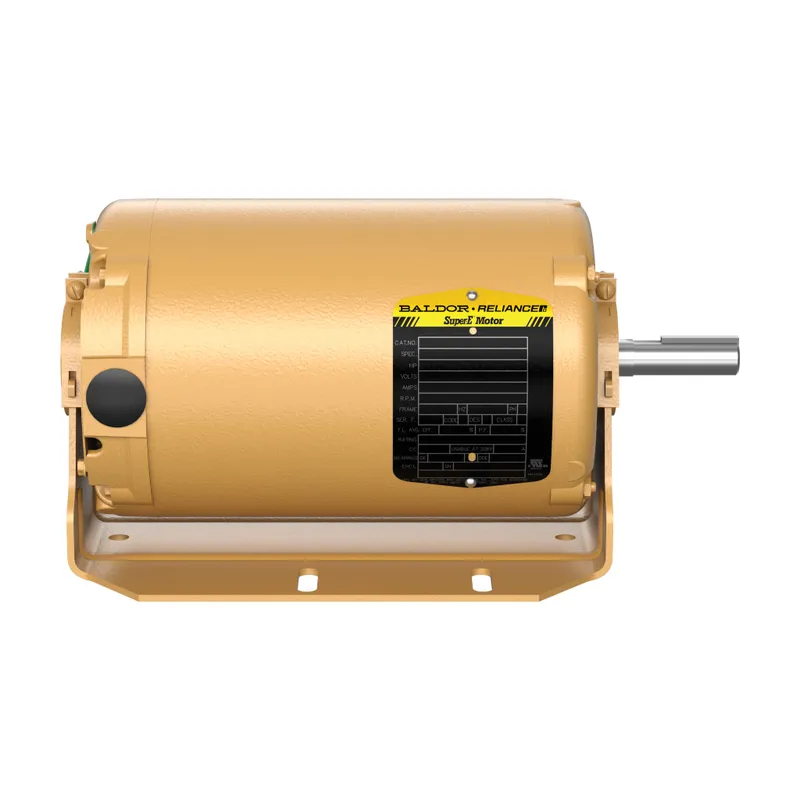

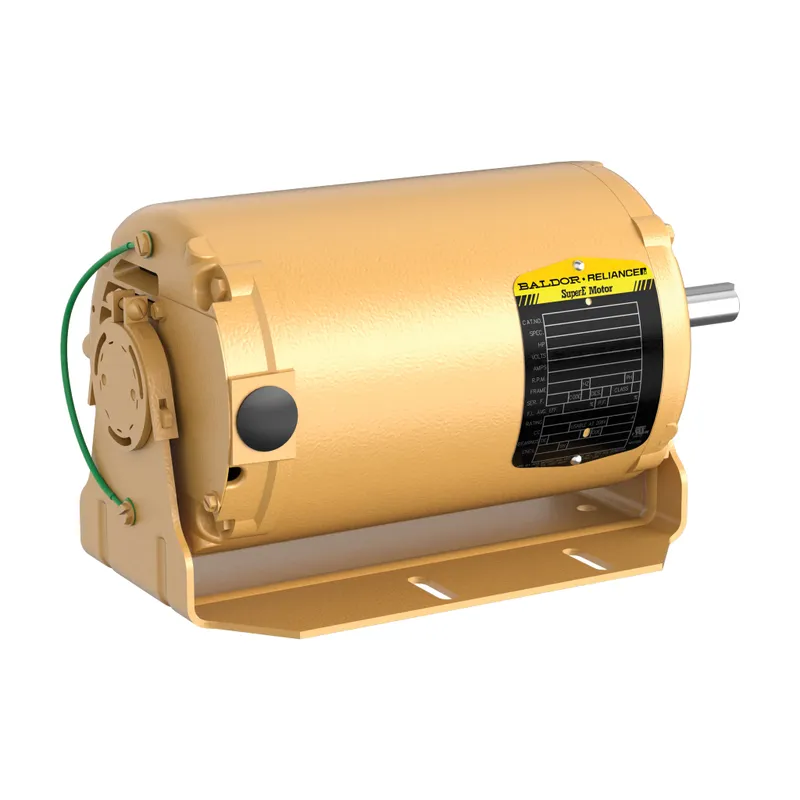

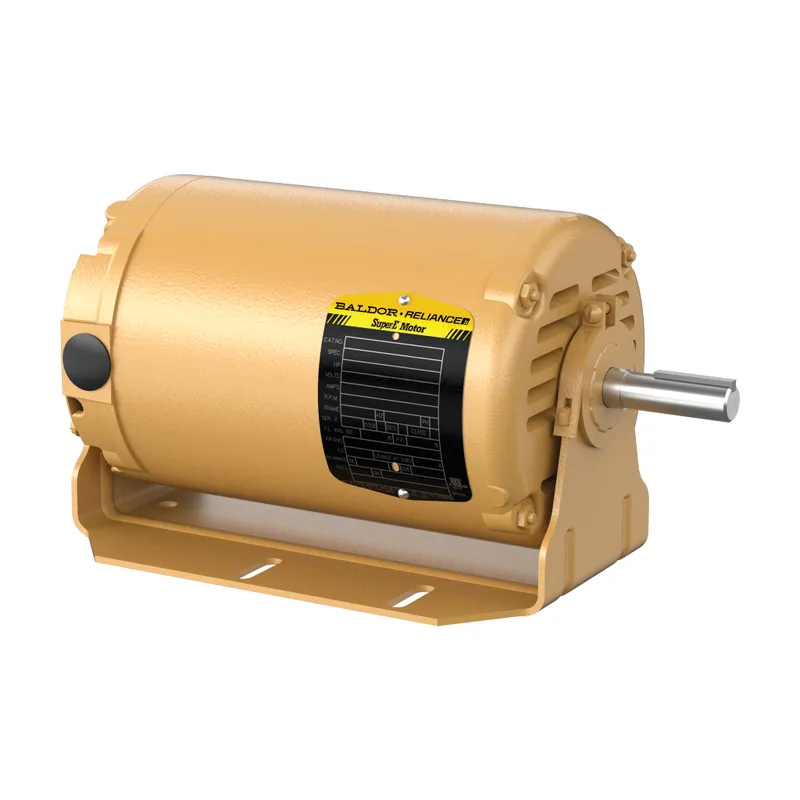

ABB ERM3108

.5HP,1725RPM,3PH,60HZ,56,3424M,OPEN

MPN: ERM3108
Category: Fan and blower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ERM3108?

Fan and Blower 0.5 Hp 230 V (ERM3108)

Specifications

Ordering

Catalog Number	ERM3108
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	2015 Small Motor Standard, Not Regulated / Exempt, Undefined Efficiency
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	78 %
Rated Efficiency	78.20 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	Resilient Mount
Enclosure Type	OPEN
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Resilient
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	31 lb
Product Net Width	11.5 in
Dimension Diagram	34LY1237

Certificates and Declarations

Certification Agency	C UR US ENERGY
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
