Home / ABB / Fan and blower / ABB ERL1319A277
ABB

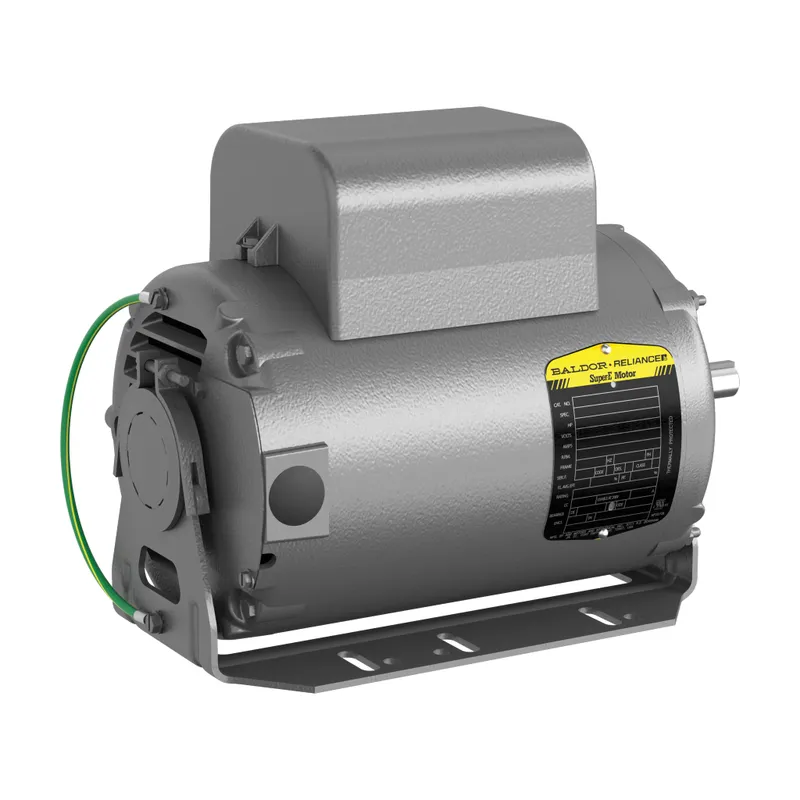

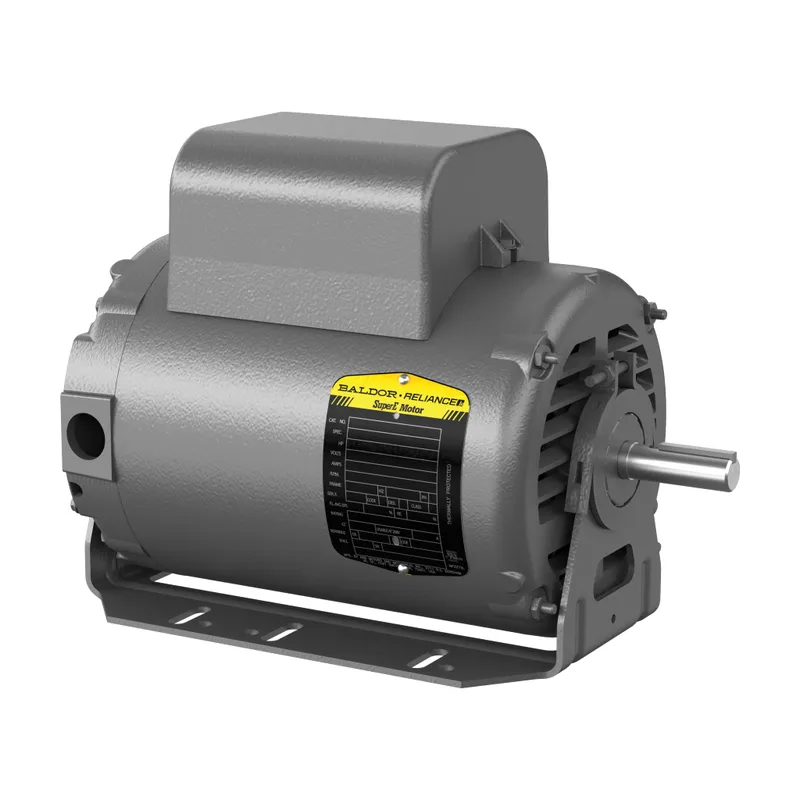

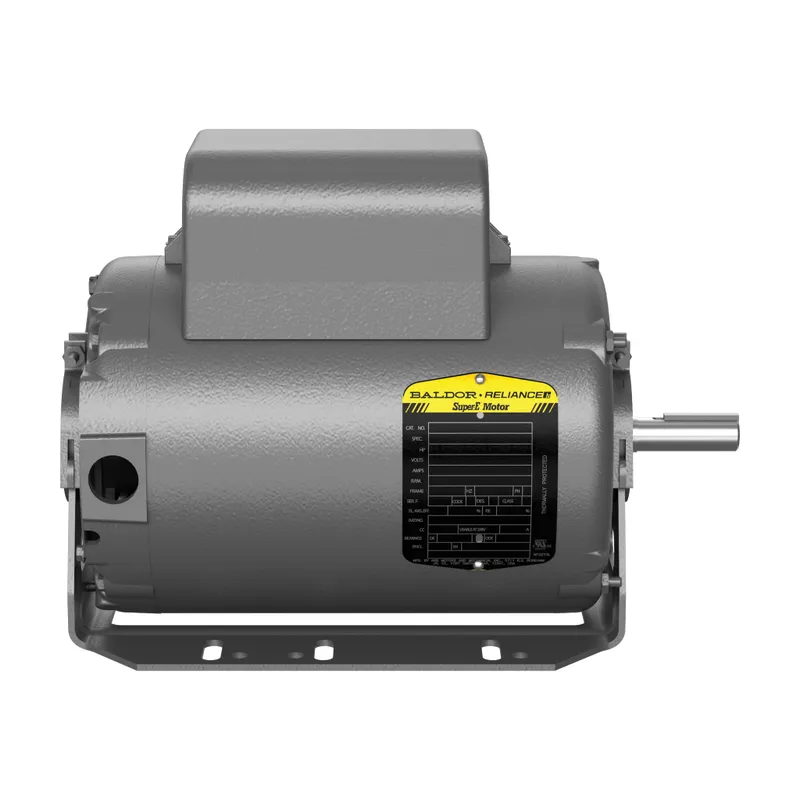

ABB ERL1319A277

1.5HP,1750RPM,1PH,60HZ,56H,3540LC,O

MPN
ERL1319A277
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ERL1319A277?

Fan and Blower 1.5 Hp 277 V (ERL1319A277)

Specifications

Ordering

Catalog NumberERL1319A277
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency Level2015 Small Motor Standard
Insulation ClassF
NEMA Design CodeL
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor93 %
Rated Efficiency84 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power1.5 Hp

Mechanical

Drive End Flange TypeResilient Mount
Enclosure TypeOPEN
Frame MaterialSteel
Motor Frame Size56H
Motor Base TypeResilient
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight59 lb
Product Net Width13.75 in
Dimension Diagram35LYF554

Certificates and Declarations

Certification AgencyC UR US ENERGY
IDEA Granular Category Code (IGCC)1318 >> Heating and cooling system motor AC
ETIM 7EC001851 - Electric motor

ERL1319A277: frequently asked questions

When can ERL1319A277 be shipped?

ERL1319A277 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ERL1319A277 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ERL1319A277 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ERL1319A277, subject to availability and destination.
