Home / ABB / Three phase open motors / ABB EM2554T-4CI
ABB

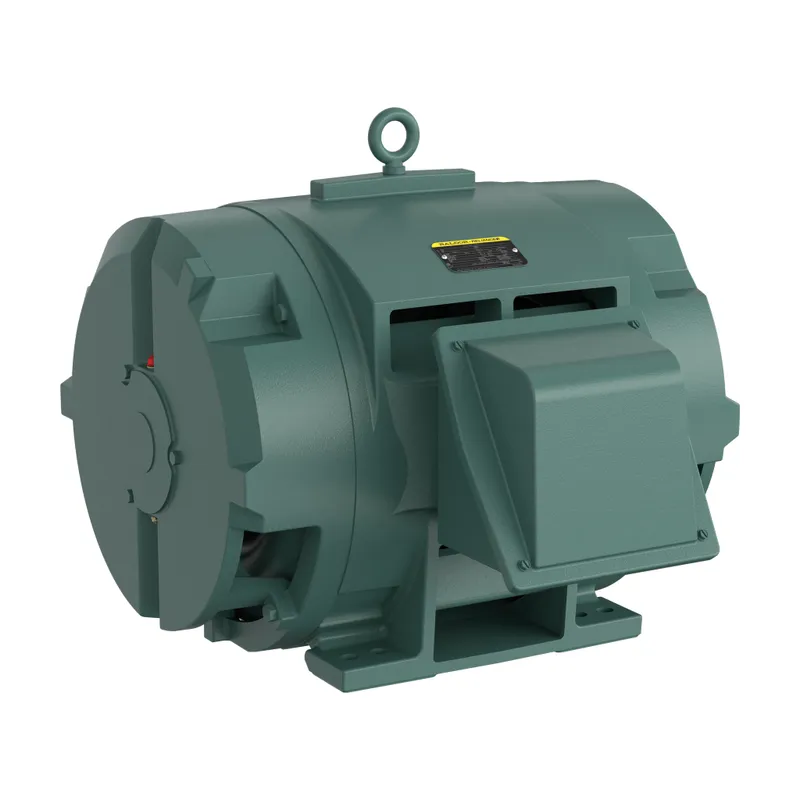

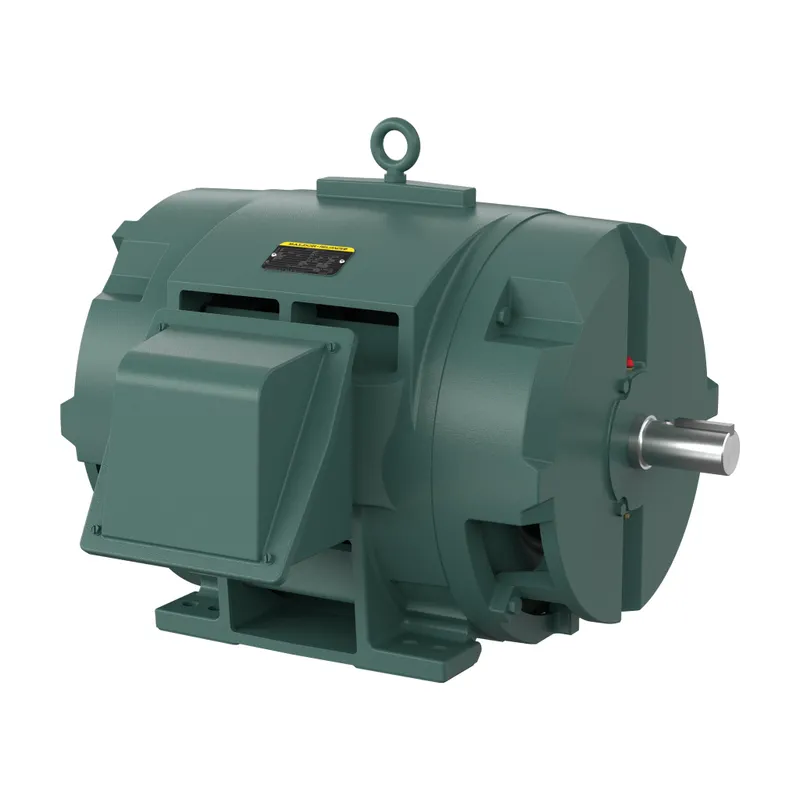

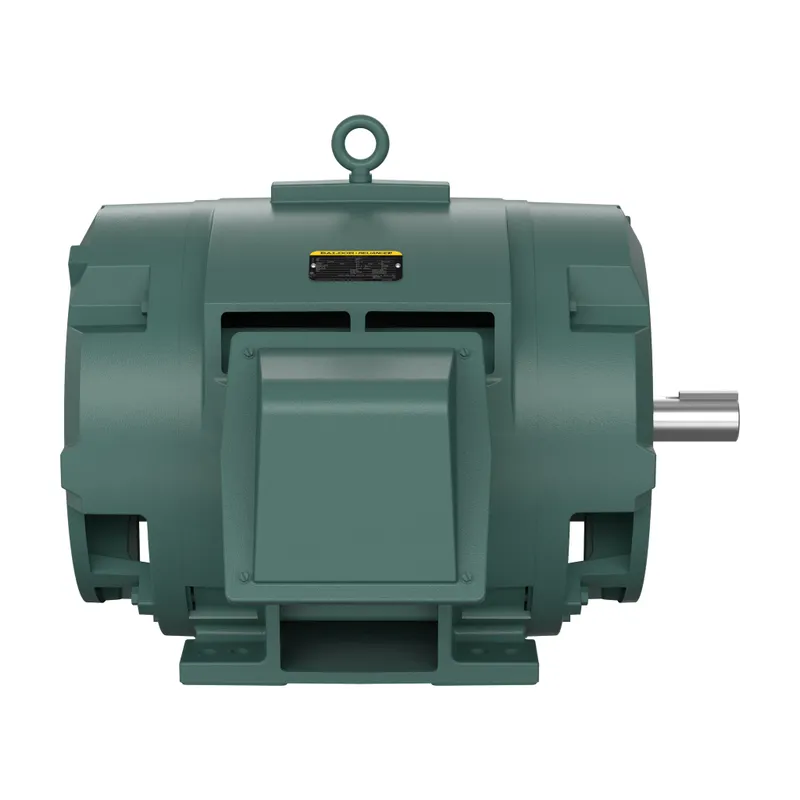

ABB EM2554T-4CI

125HP,3565RPM,3PH,60HZ,404TS,ODP,FO

MPN
EM2554T-4CI
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EM2554T-4CI?

General Purpose Motor 125 Hp 460 V (EM2554T-4CI)

Specifications

Ordering

Catalog NumberEM2554T-4CI
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015381
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor86 %
Rated Efficiency95 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power125 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeODP
Frame MaterialCast Iron
Motor Frame Size404TS
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height52.5 in
Product Net Weight997 lb
Product Net Width34.75 in
Dimension Diagram617428-120

Certificates and Declarations

Certification AgencyCCSA US, CCSAUSEEV, CSA EEV, CURUSEEV
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

EM2554T-4CI: frequently asked questions

When can EM2554T-4CI be shipped?

EM2554T-4CI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM2554T-4CI in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM2554T-4CI and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM2554T-4CI, subject to availability and destination.
