ABB EM2552T-4

75HP,1185RPM,3PH,60HZ,405T,ODP,FOOT

MPN
EM2552T-4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB EM2552T-4?

General Purpose Motor 75 Hp 460 V (EM2552T-4)

Specifications

Ordering

Catalog NumberEM2552T-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor85 %
Rated Efficiency95 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)1200 r/min
Output Power75 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeDP
Frame MaterialIron
Motor Frame Size405T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height28 in
Product Net Weight1084.001 lb
Product Net Width41.5 in
Dimension Diagram617428-118

Certificates and Declarations

Certification AgencyCCSA US, CCSAUSEEV, CSA EEV, CURUSEEV
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

EM2552T-4: frequently asked questions

When can EM2552T-4 be shipped?

EM2552T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM2552T-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM2552T-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM2552T-4, subject to availability and destination.

More ABB parts

ABB EM2551T-8 – 75HP,1780RPM,3PH,60HZ,365T,A36056M
ABB
EM2551T-8

75HP,1780RPM,3PH,60HZ,365T,A36056M

ABB EM2551T-CI – 75HP,1780RPM,3PH,60HZ,365T,ODP,FOOT
ABB
EM2551T-CI

75HP,1780RPM,3PH,60HZ,365T,ODP,FOOT

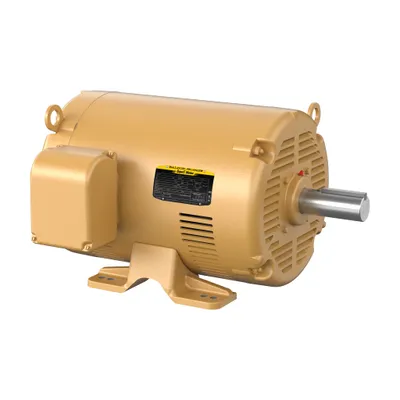

ABB EM2551T-G – 75HP,1775RPM,3PH,60HZ,365T,4462M,OP
ABB
EM2551T-G

75HP,1775RPM,3PH,60HZ,365T,4462M,OP

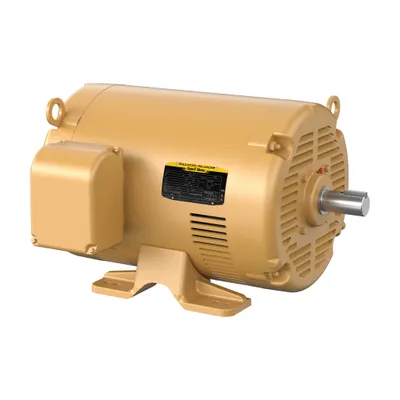

ABB EM2551TS-12 – 75HP,1775RPM,3PH,60HZ,365TS,4462M,O
ABB
EM2551TS-12

75HP,1775RPM,3PH,60HZ,365TS,4462M,O

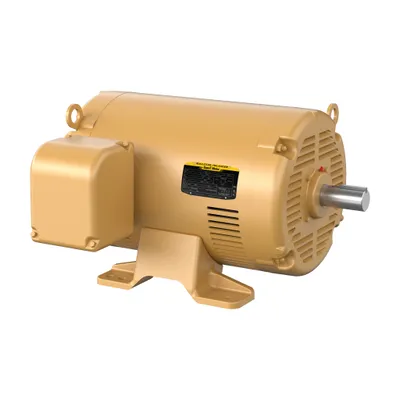

ABB EM2554T-4 – 125HP,3540RPM,3PH,60HZ,404TS,4476M
