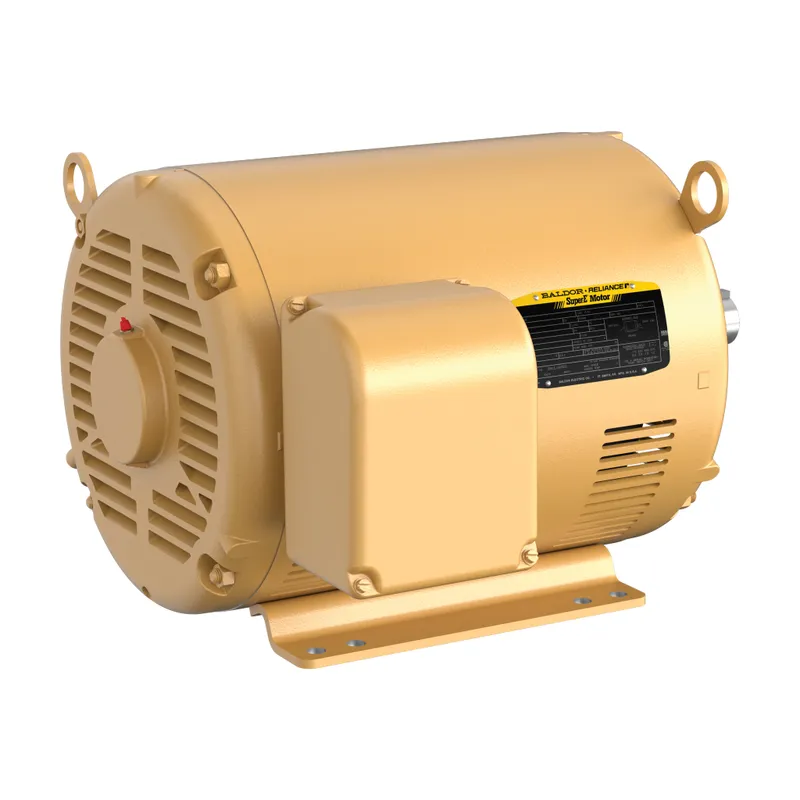

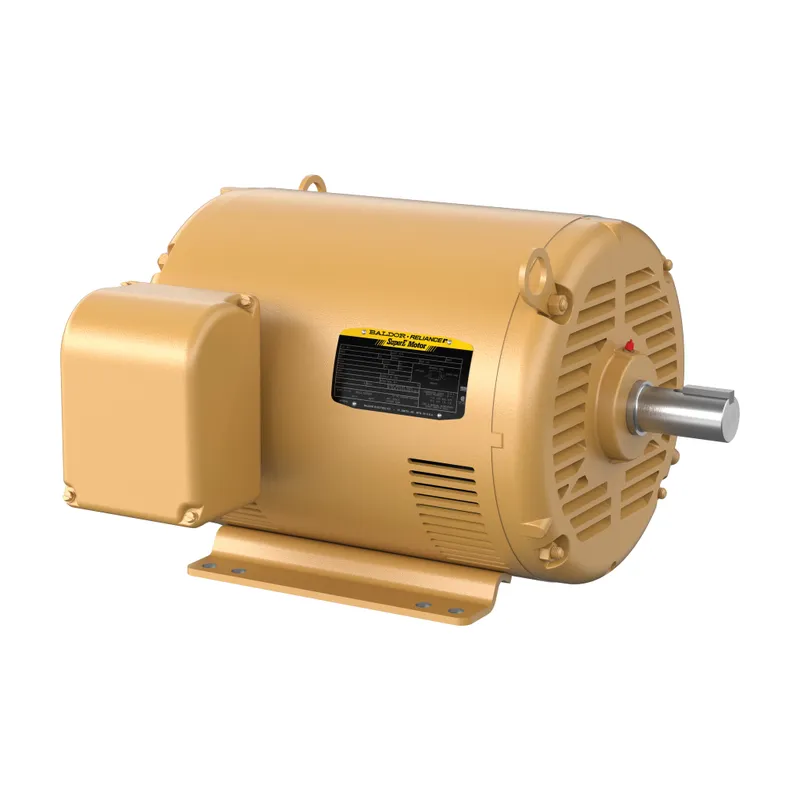

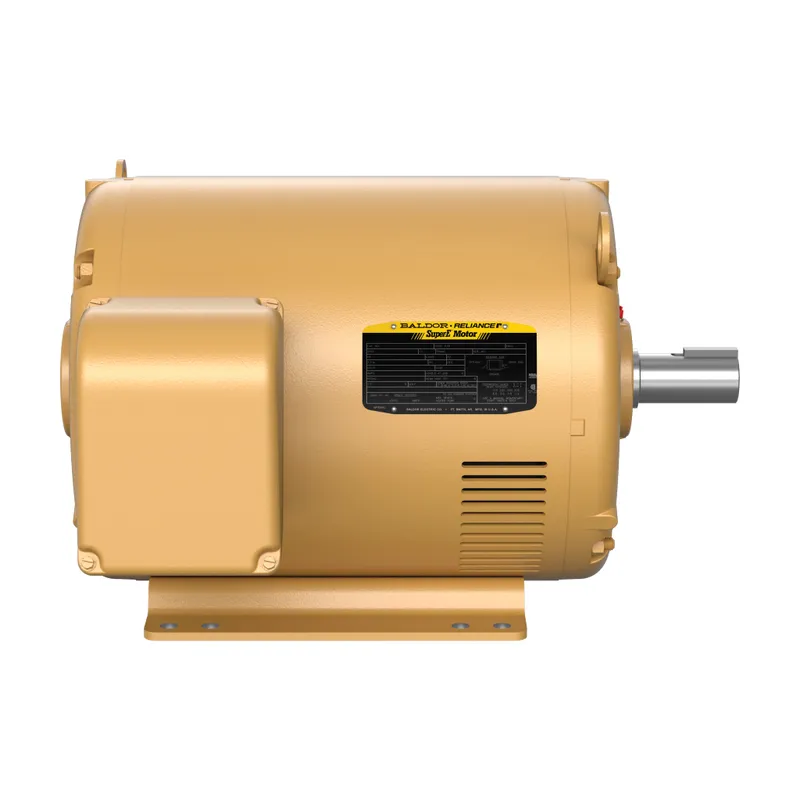

ABB EM2546T
60HP,3540RPM,3PH,60HZ,326TS,4250M,O
- MPN
- EM2546T
- Category
- Three phase open motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB EM2546T?
General Purpose Motor 60 Hp 230 V (EM2546T)
Specifications
Ordering
| Catalog Number | EM2546T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 89 % |
| Rated Efficiency | 93.60 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 60 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | ODP |
| Frame Material | Steel |
| Motor Frame Size | 326TS |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 23 in |
| Product Net Weight | 457.001 lb |
| Product Net Width | 26.5 in |
| Dimension Diagram | 42LYF058 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA_PREMIUM, UR |
| IDEA Granular Category Code (IGCC) | 1328 >> Multi phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
