Home / ABB / Three phase open motors / ABB EM25452T-4
ABB

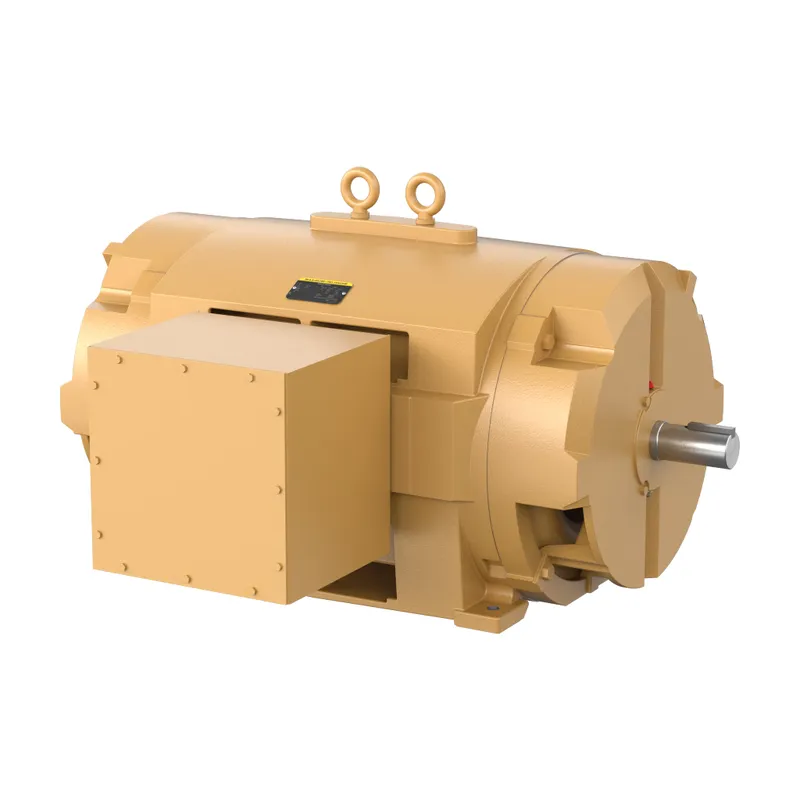

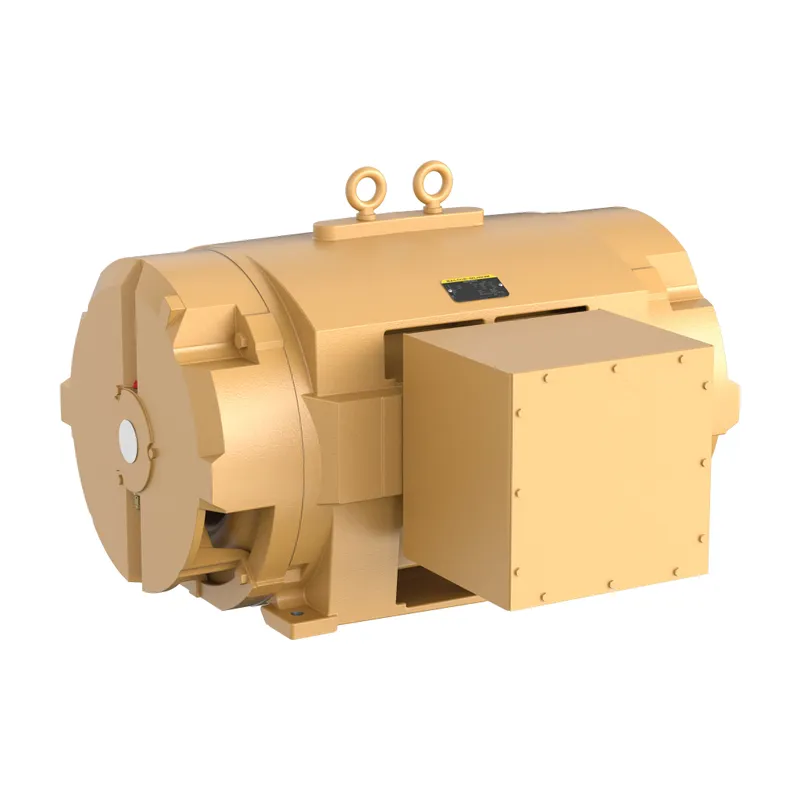

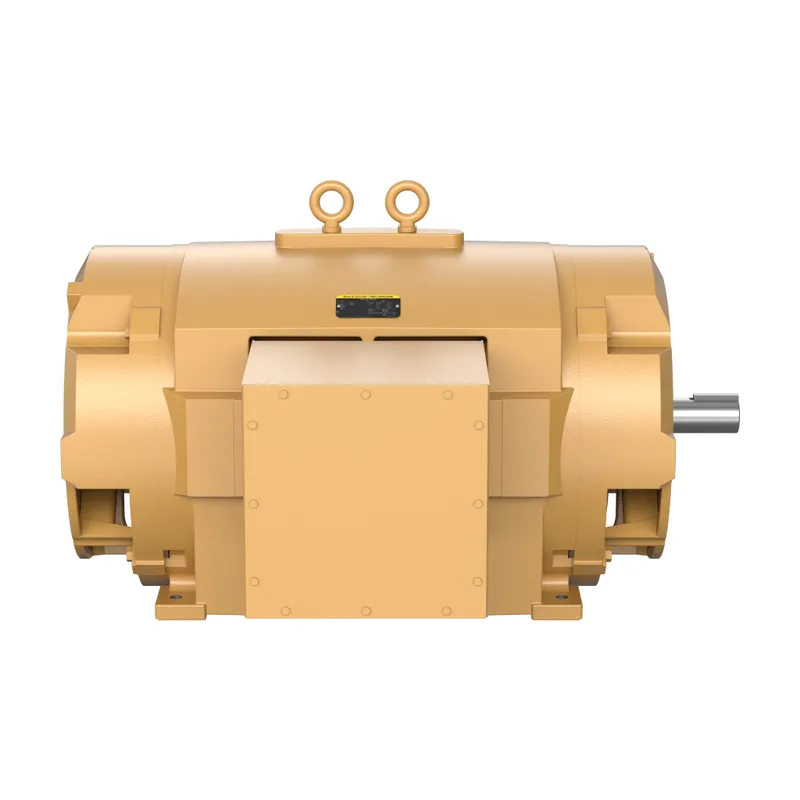

ABB EM25452T-4

450HP,3570RPM,3PH,60HZ,449TS,DP,F1

MPN
EM25452T-4
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EM25452T-4?

General Purpose Motor 450 Hp 460 V (EM25452T-4)

Specifications

Ordering

Catalog NumberEM25452T-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015381
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor88 %
Rated Efficiency96.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)3600 r/min
Output Power450 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialCast Iron
Motor Frame Size449TS
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height52.5 in
Product Net Weight2132 lb
Product Net Width42 in
Dimension Diagram604989-595

Certificates and Declarations

Certification AgencyCSA EEV, CURUSEEV
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

EM25452T-4: frequently asked questions

When can EM25452T-4 be shipped?

EM25452T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM25452T-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM25452T-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM25452T-4, subject to availability and destination.
