ABB

ABB EHM3154T

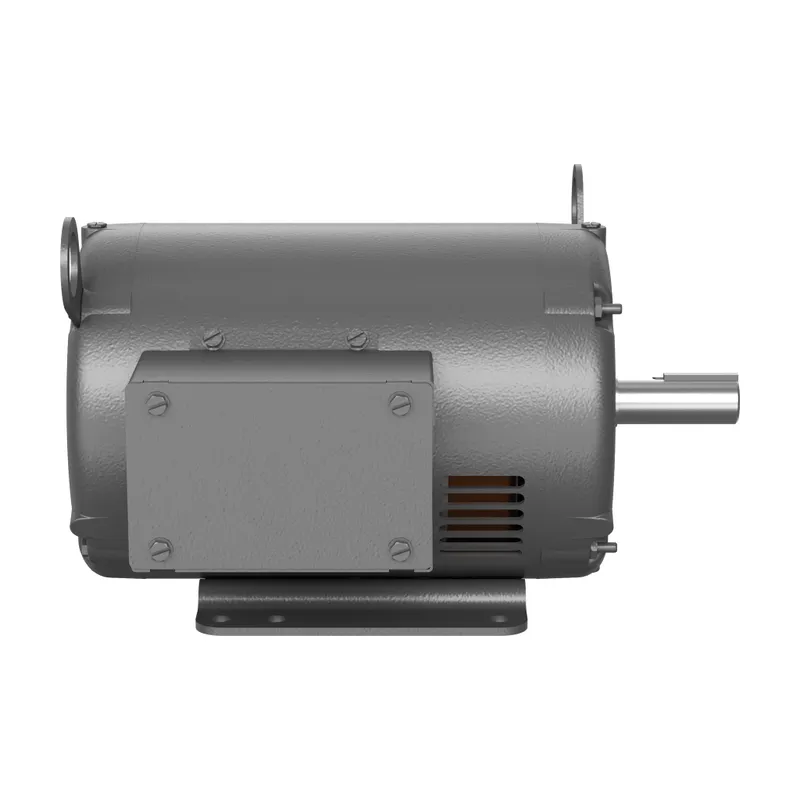

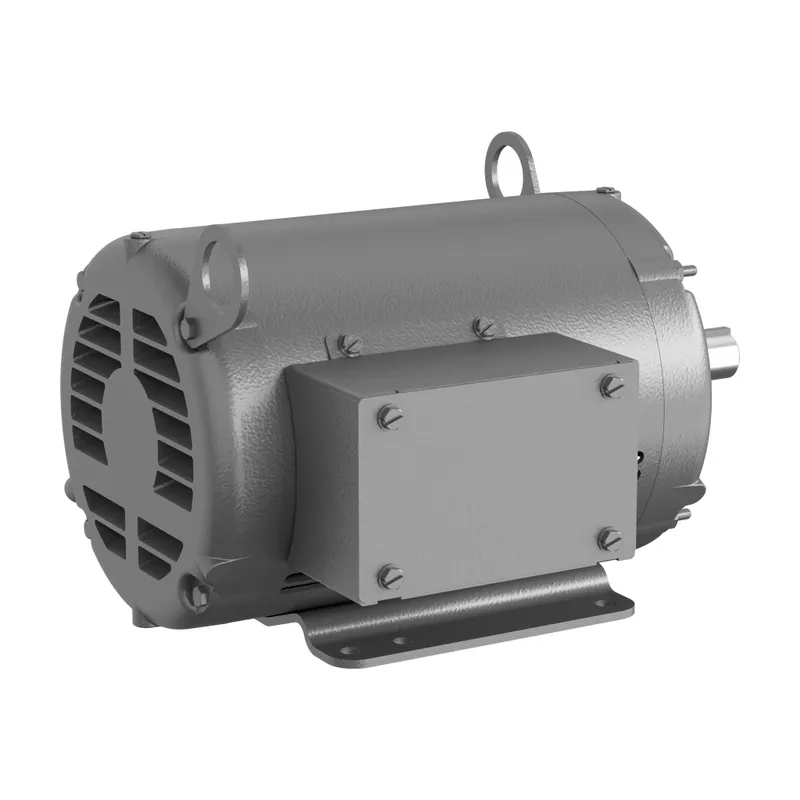

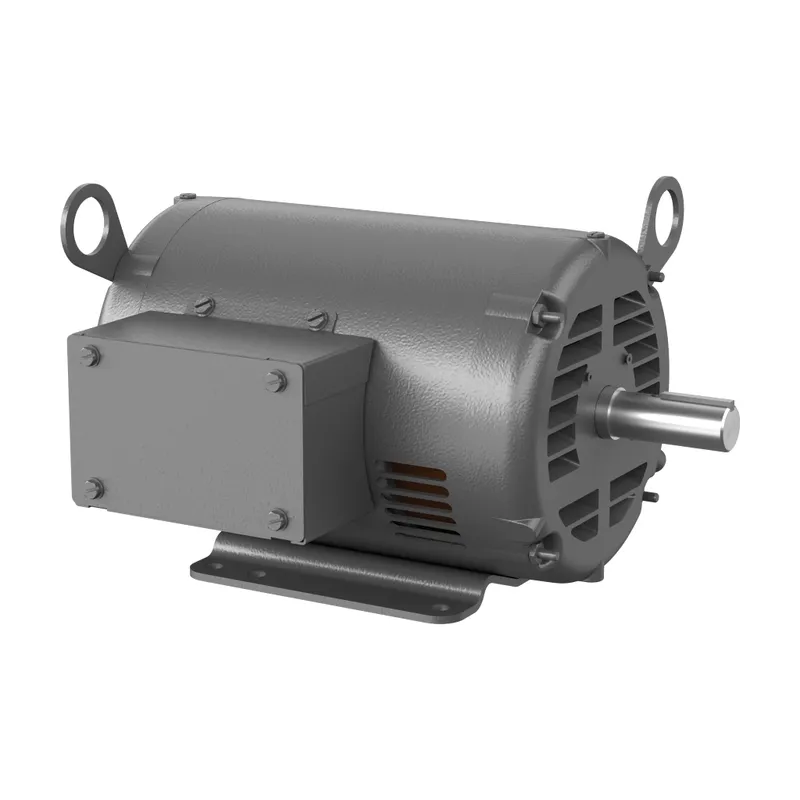

1.5HP,1770RPM,3PH,60HZ,145T,3524M,O

MPN: EHM3154T
Category: HVAC General Purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EHM3154T?

General Purpose HVAC 1.5 Hp 230 V (EHM3154T)

Specifications

Ordering

Catalog Number	EHM3154T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	72 %
Rated Efficiency	86.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	145T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	37 lb
Product Net Width	11.5 in
Dimension Diagram	35LYVV807

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
