Home / ABB / HVAC General Purpose / ABB EHM3116T-8
ABB

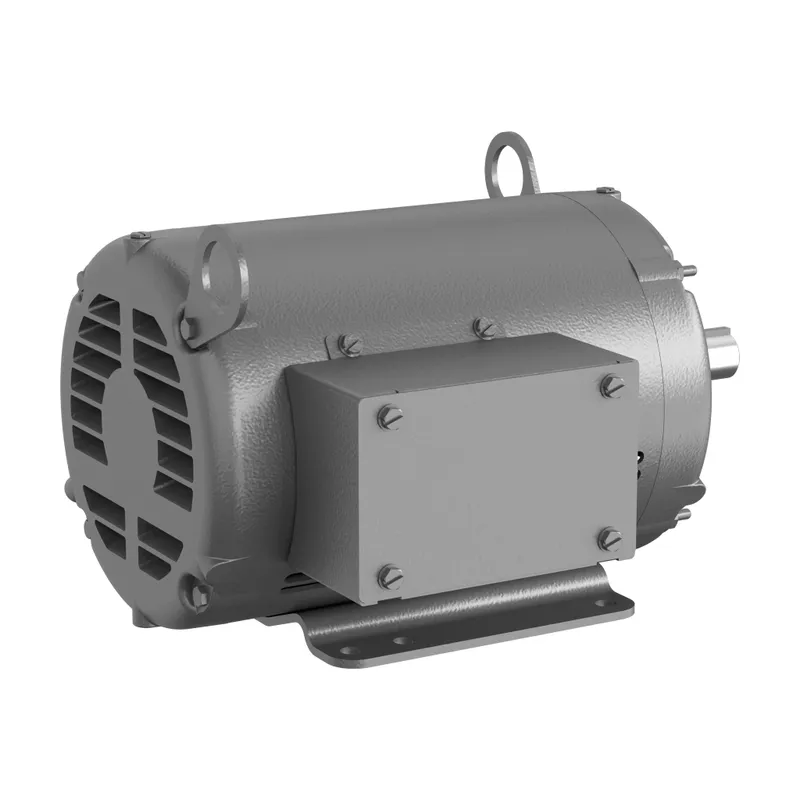

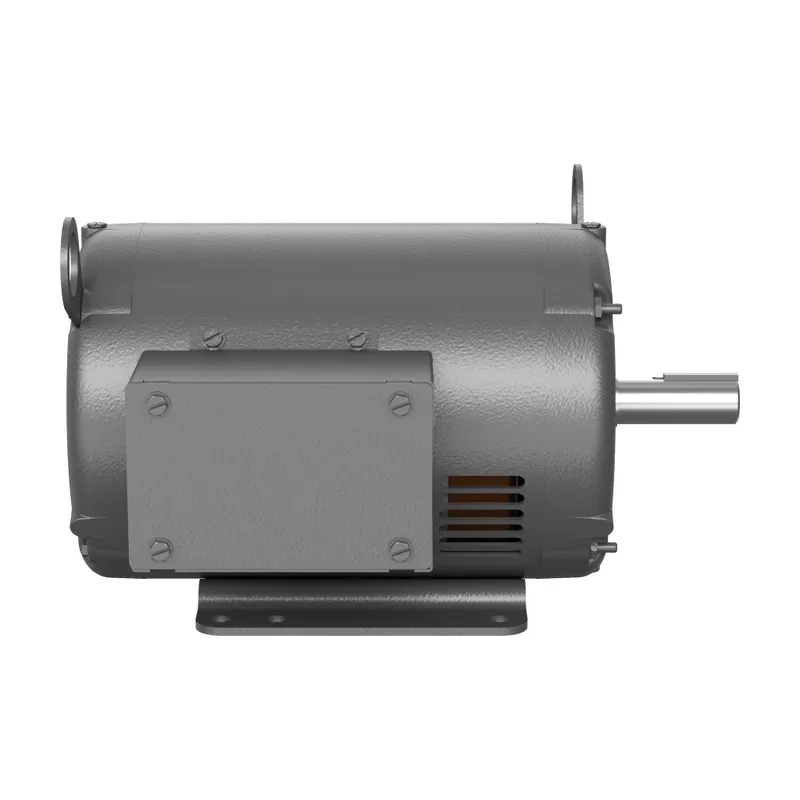

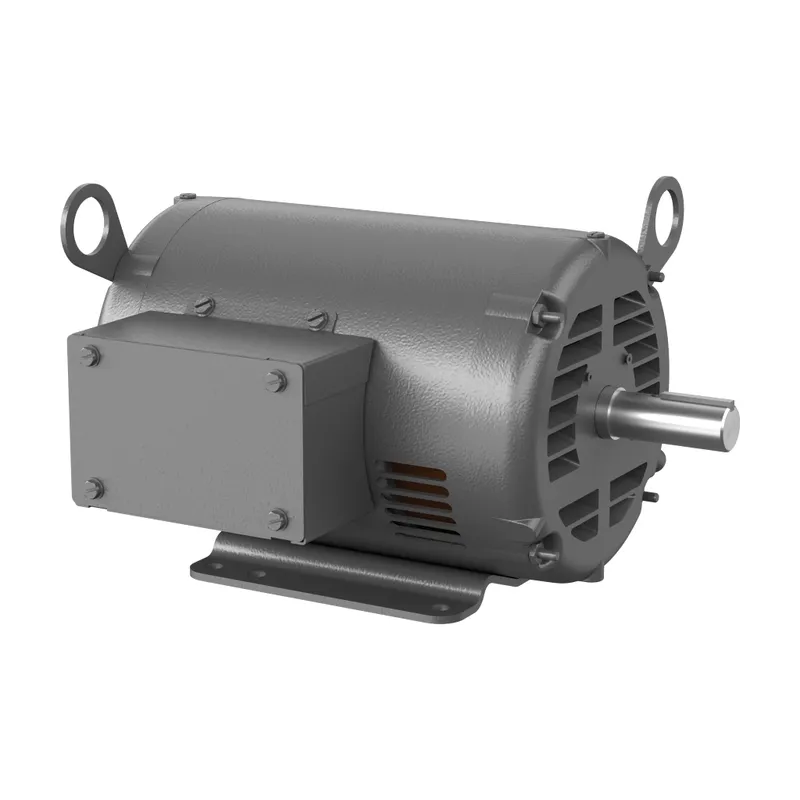

ABB EHM3116T-8

1HP,1775RPM,3PH,60HZ,143T,3520M,OPS

MPN
EHM3116T-8
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EHM3116T-8?

General Purpose HVAC 1 Hp 200 V (EHM3116T-8)

Specifications

Ordering

Catalog NumberEHM3116T-8
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor71 %
Rated Efficiency85.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power1 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size143T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight34 lb
Product Net Width11.5 in
Dimension Diagram35LYVV807

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1318 >> Heating and cooling system motor AC
ETIM 7EC001851 - Electric motor

EHM3116T-8: frequently asked questions

When can EHM3116T-8 be shipped?

EHM3116T-8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EHM3116T-8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EHM3116T-8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EHM3116T-8, subject to availability and destination.
