Home / ABB / Chiller/Cooling Tower / ABB ECTM4115T-G

ABB

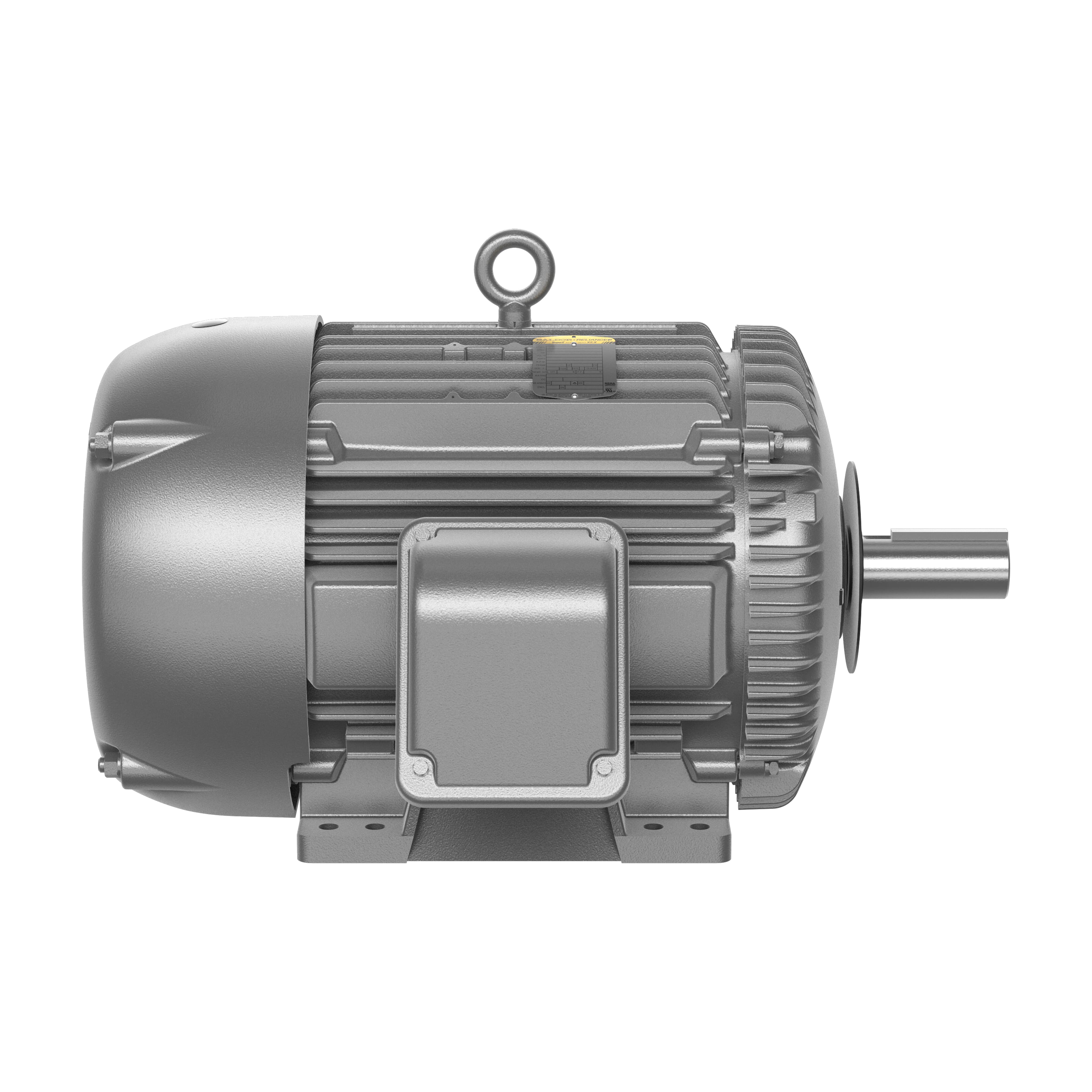

ABB ECTM4115T-G

50HP,1775RPM,3PH,60HZ,326T,1272M,TE

MPN: ECTM4115T-G
Category: Chiller/Cooling Tower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECTM4115T-G?

Chiller/Cooling Tower Motors 50 Hp 230 V (ECTM4115T-G)

Specifications

Ordering

Catalog Number	ECTM4115T-G G
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	85 %
Rated Efficiency	94.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min
Output Power	50 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	326T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	21.625 in
Product Net Weight	700 lb
Product Net Width	25.688 in

Certificates and Declarations

Certification Agency

CSA EEV, CURUSEEV, NEMA_PREMIUM
