ABB

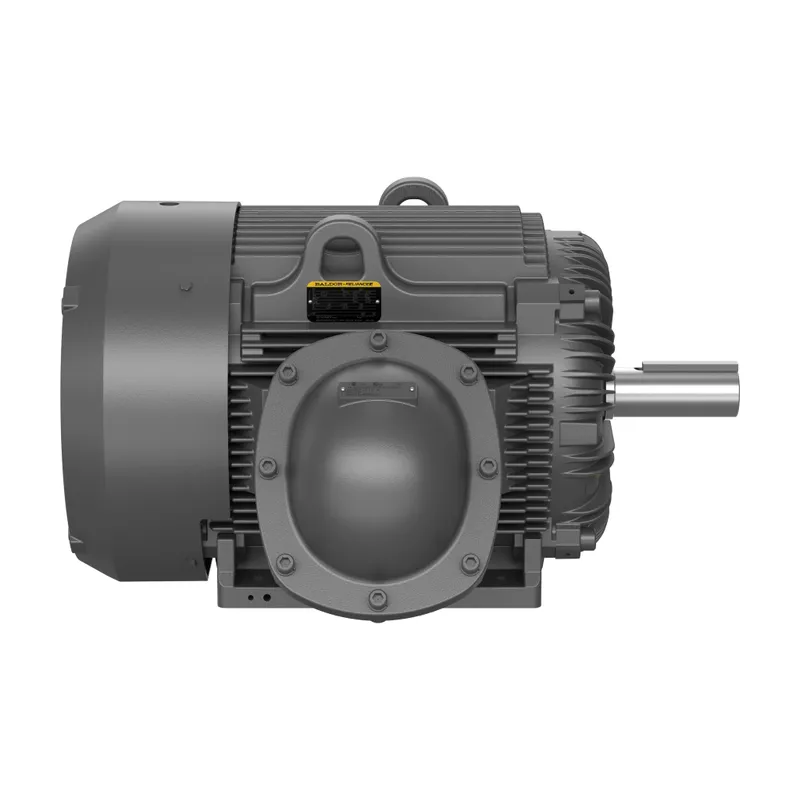

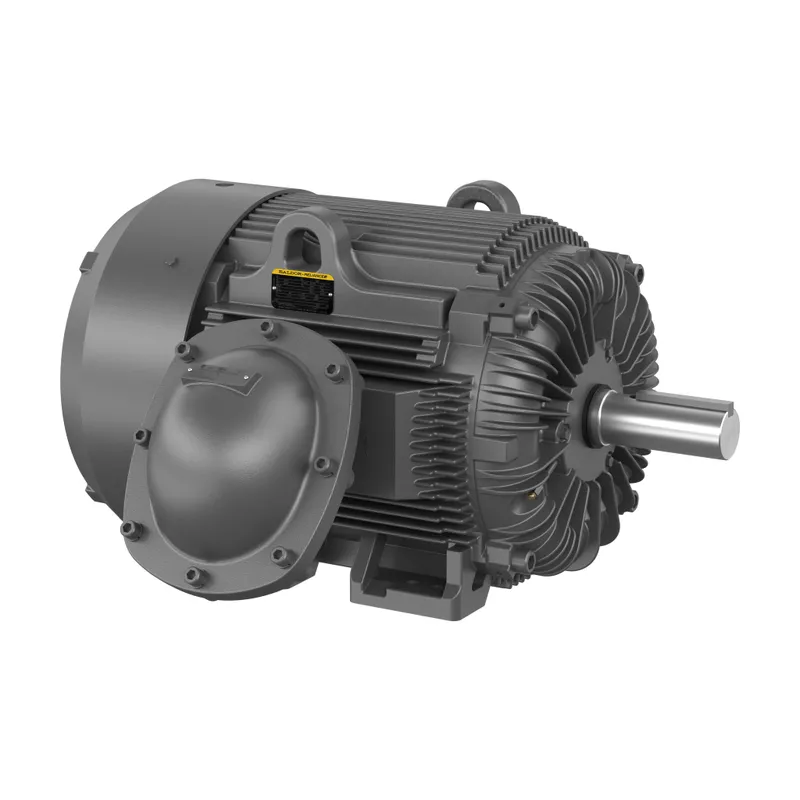

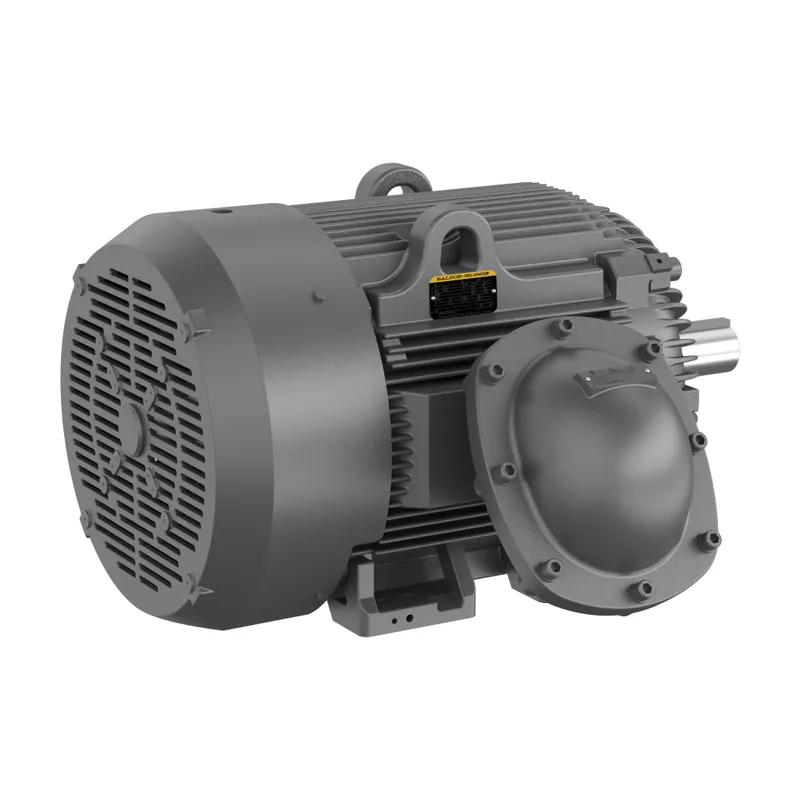

ABB DRX40764T

75HP,1185RPM,3PH,60HZ,405T,TEFC,F1

MPN: DRX40764T
Category: XP Drill Rig Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX40764T?

Explosion Proof Drill Rig Duty 75 Hp 230 V (DRX40764T)

Specifications

Ordering

Catalog Number	DRX40764T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	85 %
Rated Efficiency	94.50 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	75 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Iron
Motor Frame Size	405T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	27.5 in
Product Net Weight	1405.001 lb
Product Net Width	42 in

Certificates and Declarations

Certification Agency

CCSA US, CSA, CSA EEV, UL
