Home / ABB / XP Drill Rig Duty / ABB DRX40144T-5
ABB

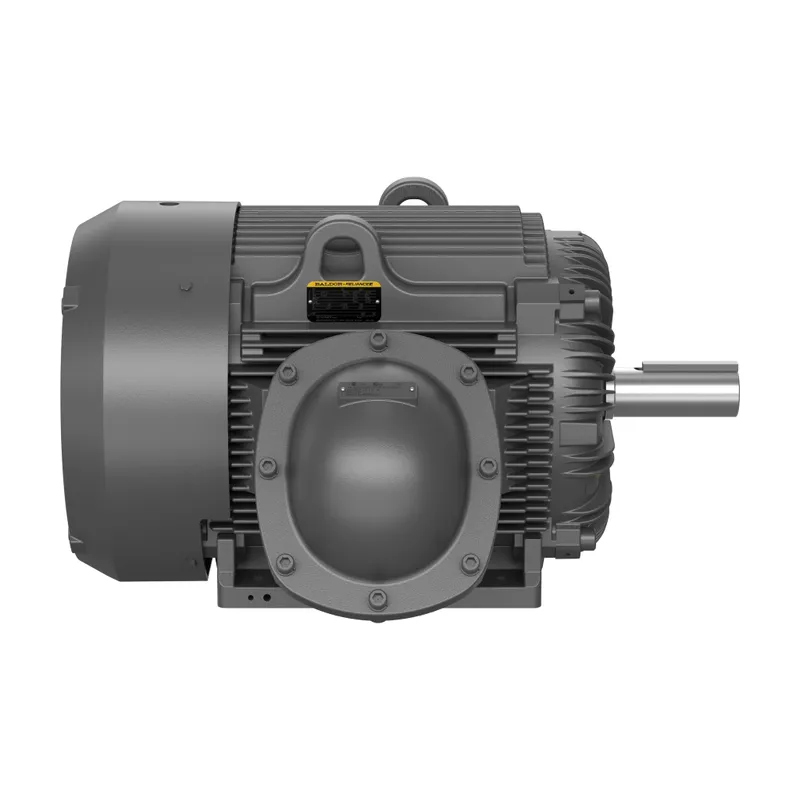

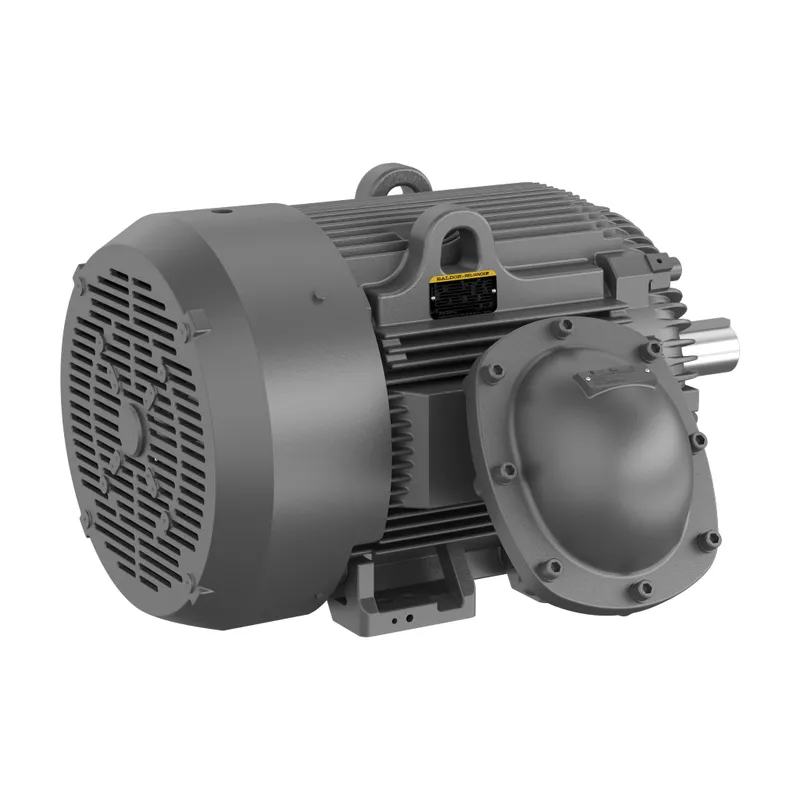

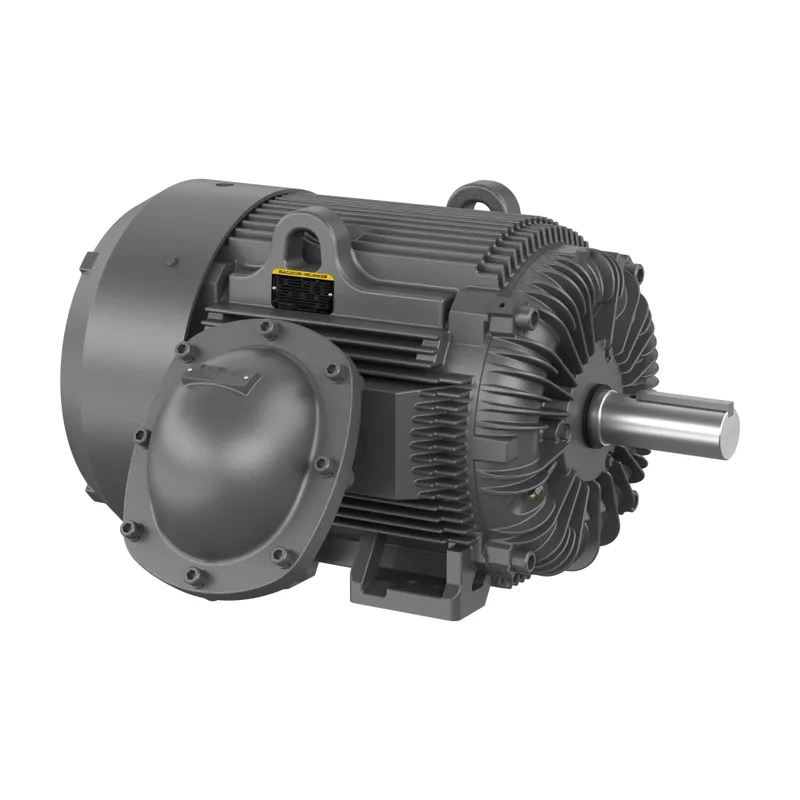

ABB DRX40144T-5

100HP,1785RPM,3PH,60HZ,405T,TEFC,F1

MPN
DRX40144T-5
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX40144T-5?

Explosion Proof Drill Rig Duty 100 Hp 575 V (DRX40144T-5)

Specifications

Ordering

Catalog NumberDRX40144T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor88 %
Rated Efficiency95.40 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power100 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialIron
Motor Frame Size405T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height52.5 in
Product Net Weight1326 lb
Product Net Width42 in
Dimension Diagram617433-608

Certificates and Declarations

Certification AgencyCCSA US, CSA, CSA EEV, UL
ETIM 7EC001851 - Electric motor

DRX40144T-5: frequently asked questions

When can DRX40144T-5 be shipped?

DRX40144T-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DRX40144T-5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DRX40144T-5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DRX40144T-5, subject to availability and destination.
