Home / ABB / DC Power Motor / ABB D1153

ABB

ABB D1153

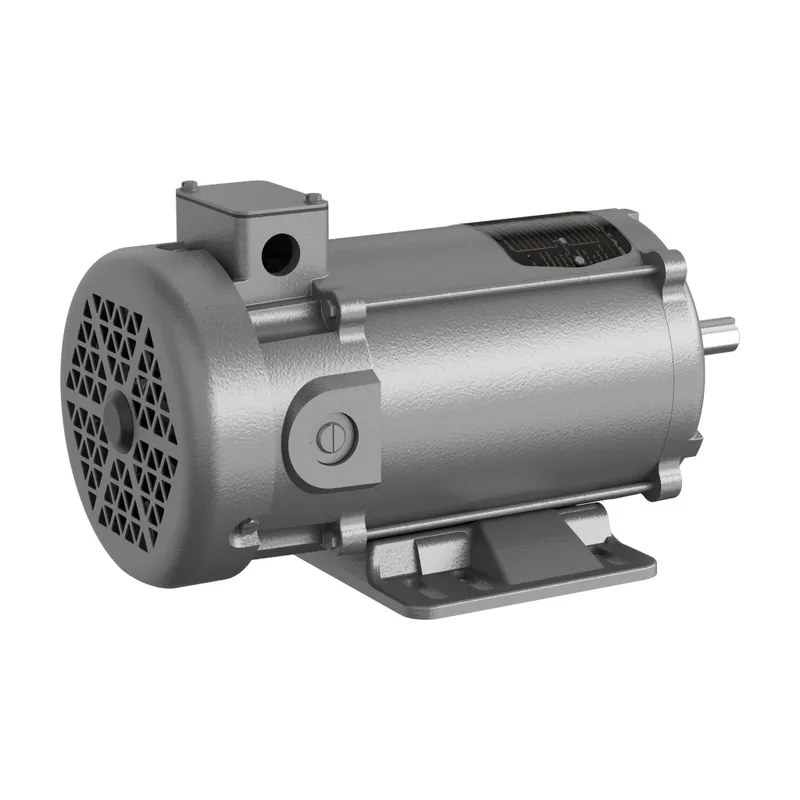

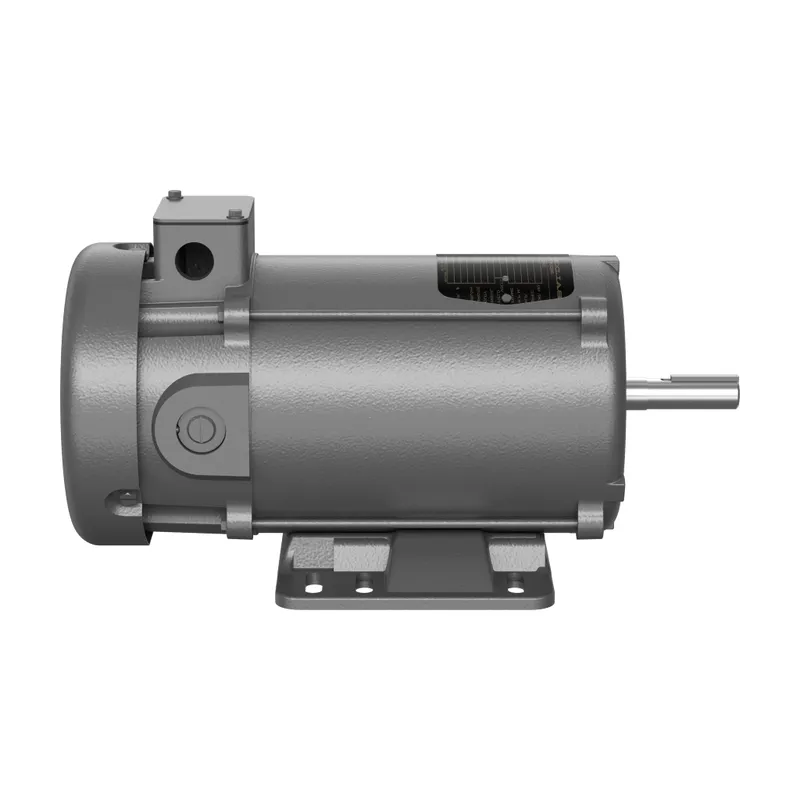

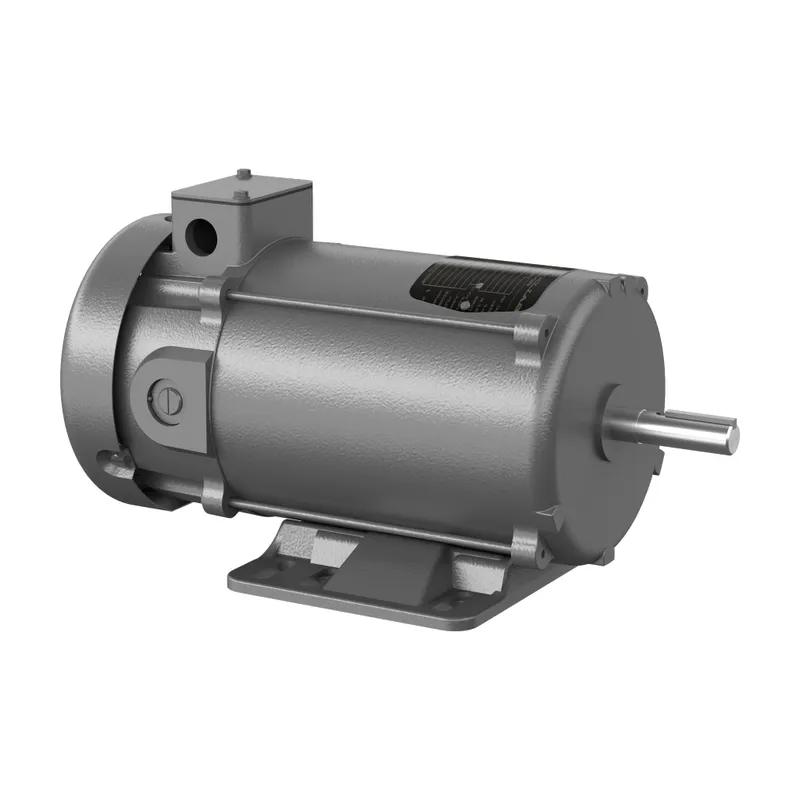

.75HP,1750RPM,DC,56,3428D,TEFC,F1

MPN: D1153
Category: DC Power Motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB D1153?

DC Wound Field Fractional Comp 0.75 Hp (D1153)

Specifications

Ordering

Catalog Number	D1153
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Type of Duty	Continuous
Output Power	0.75 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.25 in
Product Net Weight	34 lb
Product Net Width	10.5 in
Dimension Diagram	34LY6121

Certificates and Declarations

Certification Agency	CSA, UR
ETIM 7	EC001851 - Electric motor

D1153: frequently asked questions

When can D1153 be shipped?

D1153 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D1153 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D1153 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D1153, subject to availability and destination.
