ABB D1152

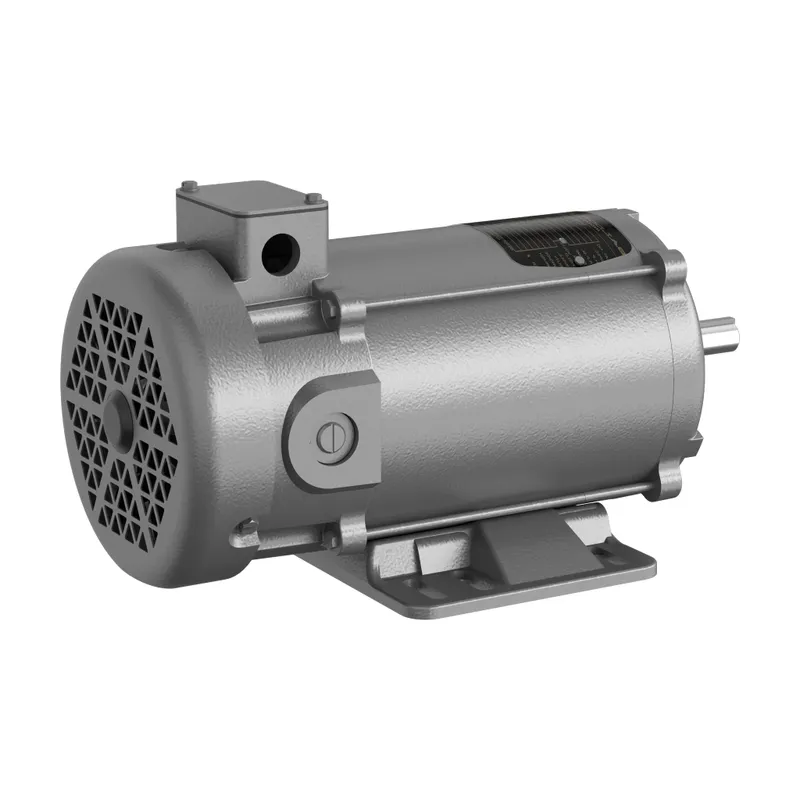

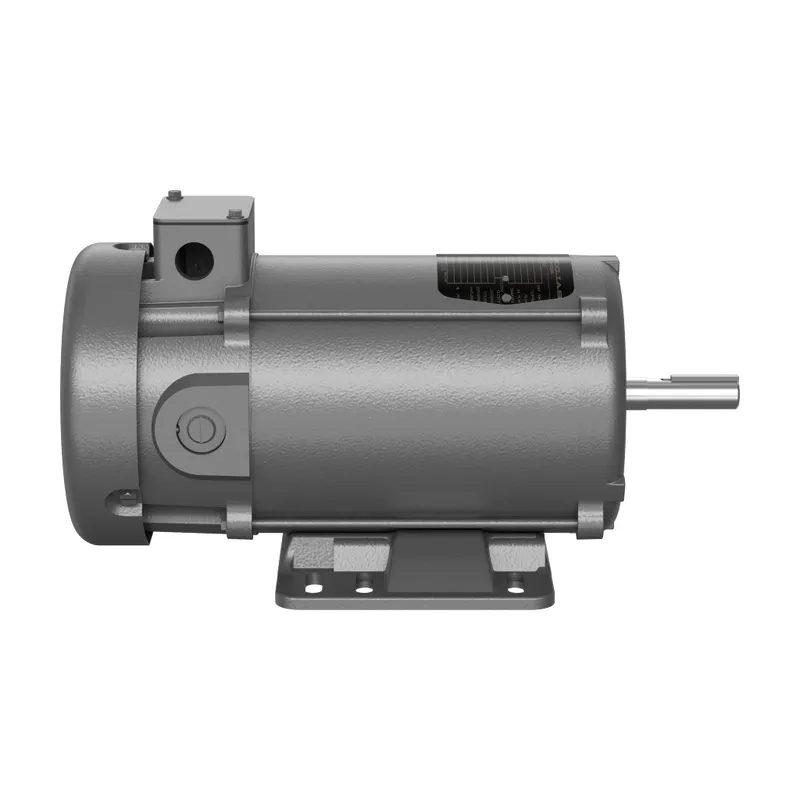

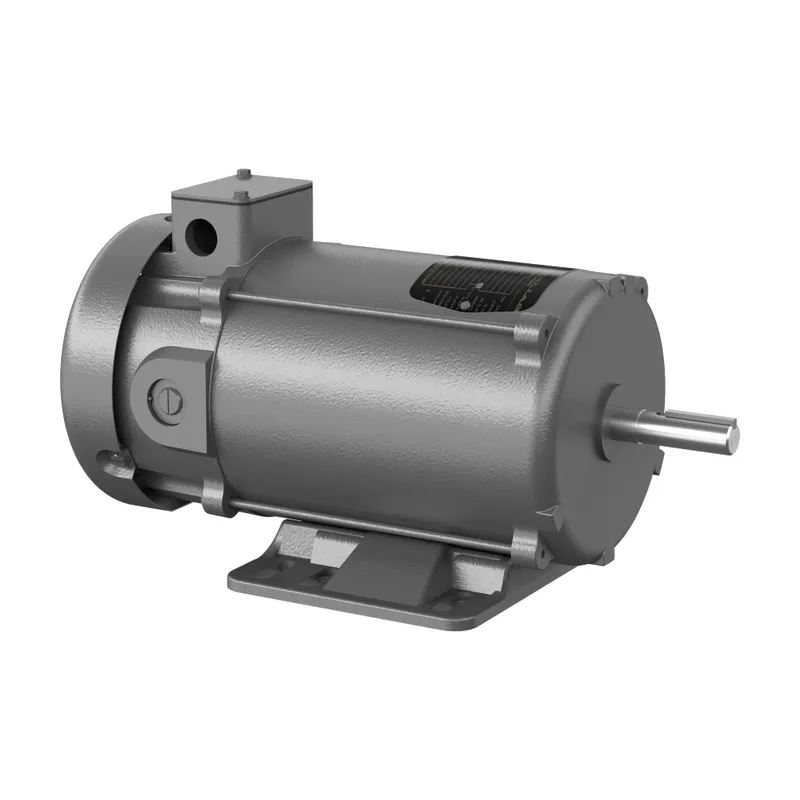

.5HP,1750RPM,DC,56,3420D,TEFC,F1

MPN: D1152
Category: DC Power Motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB D1152?

DC Wound Field Fractional Comp 0.5 Hp (D1152)

Specifications

Ordering

Catalog Number	D1152
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Type of Duty	Continuous
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Brake Present	No

Dimensions

Product Net Height	11.25 in
Product Net Weight	27 lb
Product Net Width	10.5 in
Dimension Diagram	34LY6121

Certificates and Declarations

Certification Agency	CSA, UR
ETIM 7	EC001851 - Electric motor
