Home / ABB / White Washdown / ABB CWDM3539
ABB

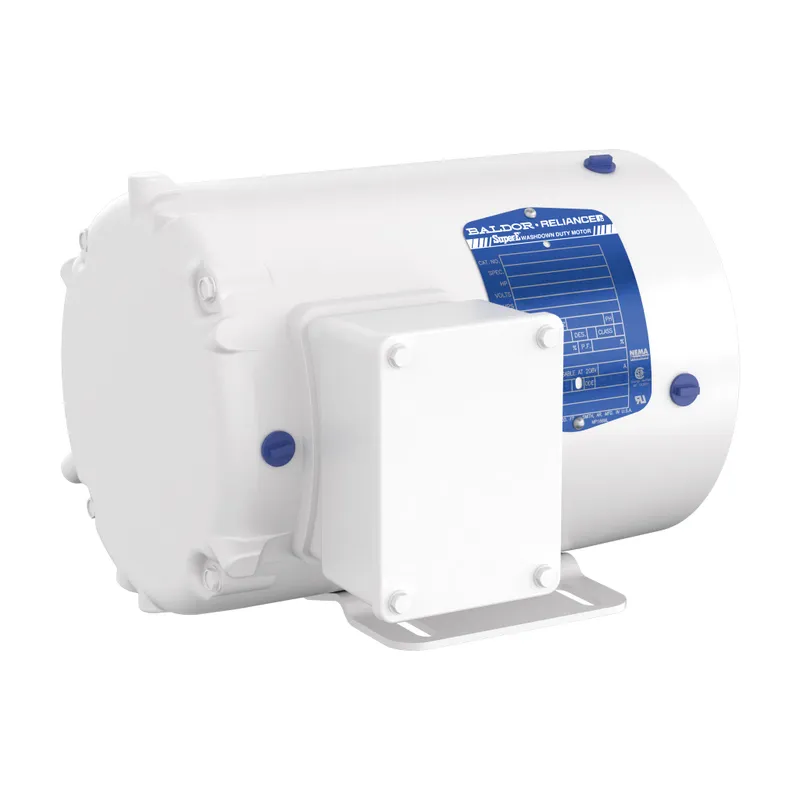

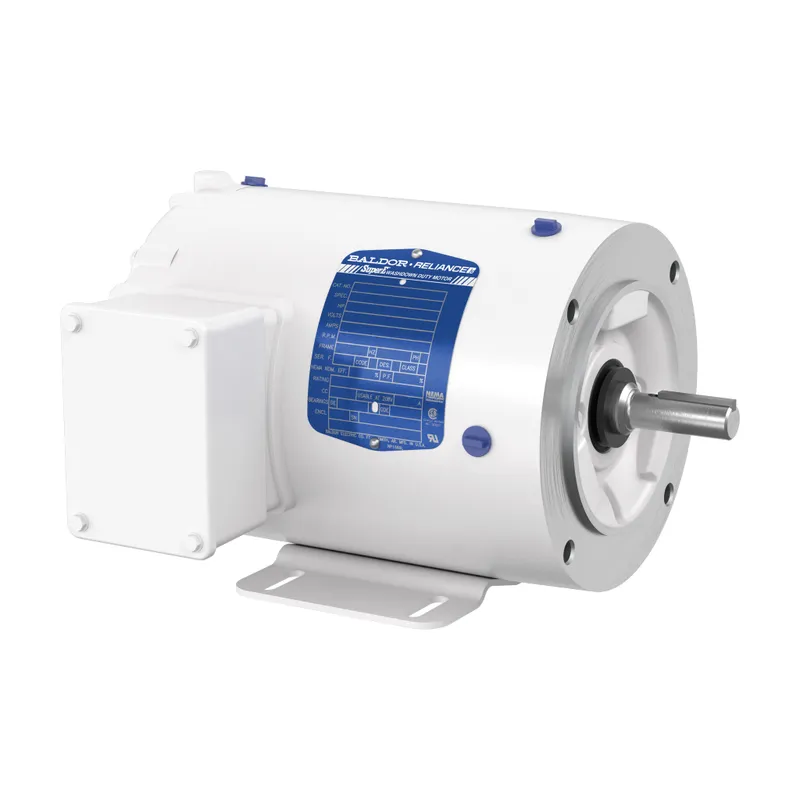

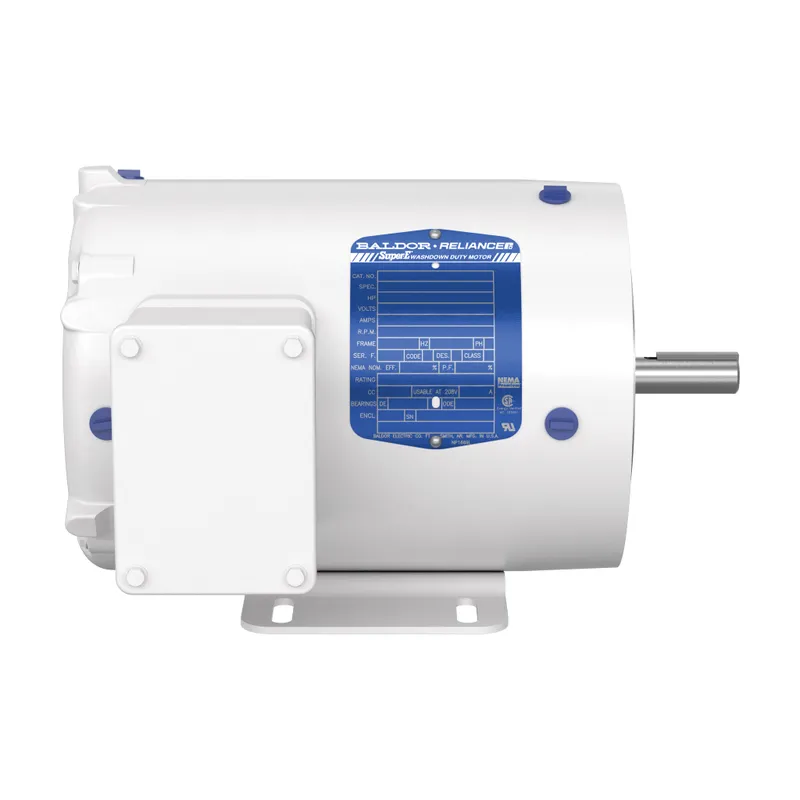

ABB CWDM3539

.5HP,1175RPM,3PH,60HZ,56C,3522M,TEN

MPN
CWDM3539
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CWDM3539?

Washdown Motor 0.5 Hp 208 V (CWDM3539)

Specifications

Ordering

Catalog NumberCWDM3539
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, Not Regulated / Exempt, Undefined Efficiency
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor60 %
Rated Efficiency78.50 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTENV
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight37 lb
Product Net Width11.5 in
Dimension Diagram35LYS588

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor
