ABB

ABB CWDM3538-5

0.5HP,1770RPM,3PH,60HZ,56C,3512M,TE

MPN
CWDM3538-5
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CWDM3538-5?

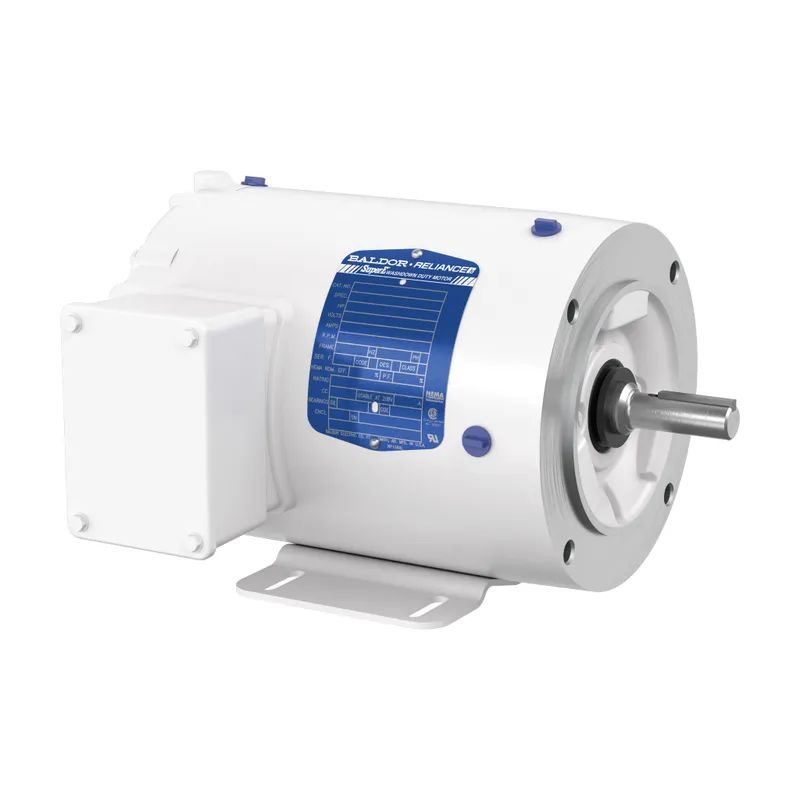

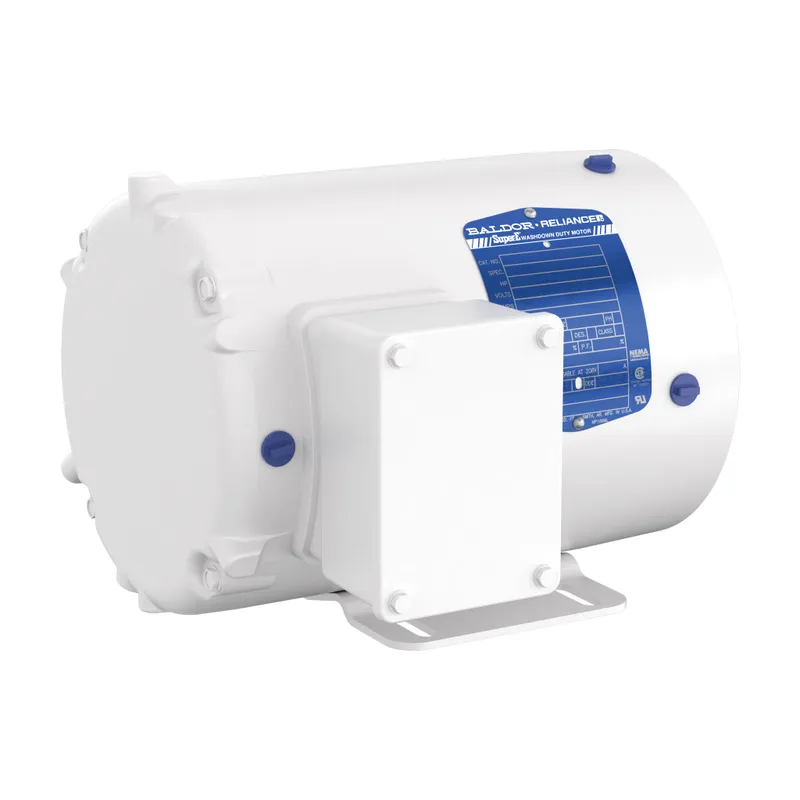

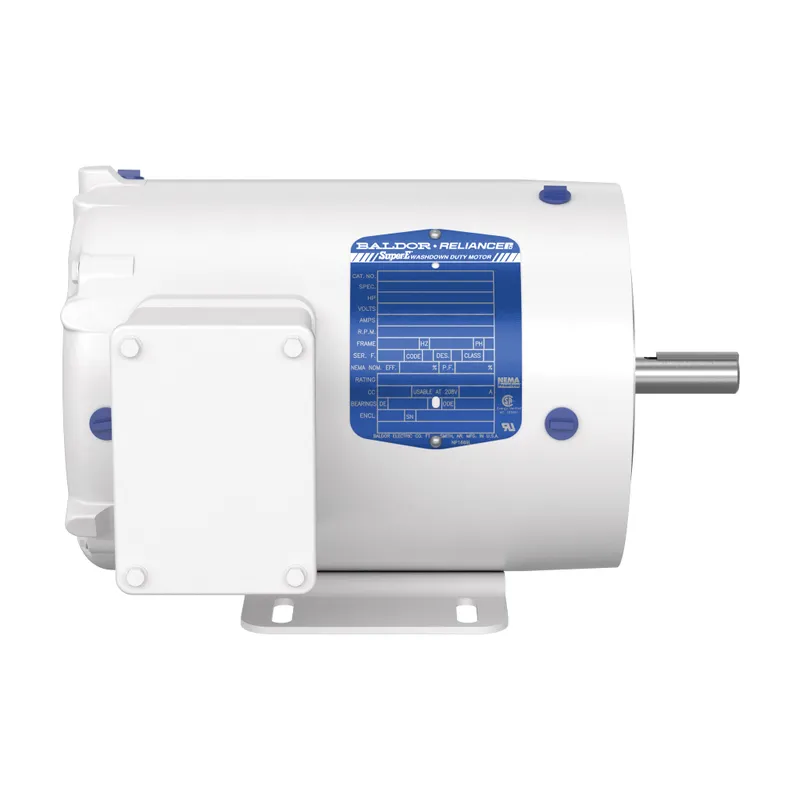

Washdown Motor 0.5 Hp 575 V (CWDM3538-5)

Specifications

Ordering

Catalog NumberCWDM3538-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt, Undefined Efficiency
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor62 %
Rated Efficiency80 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTENV
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight26 lb
Product Net Width11.5 in
Dimension Diagram35LYS588

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor
