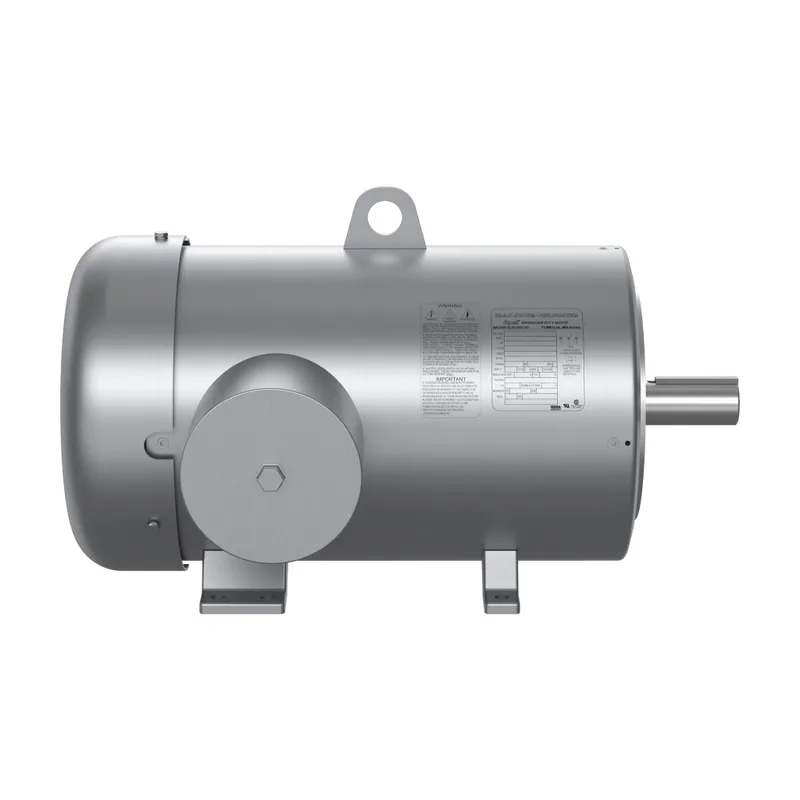

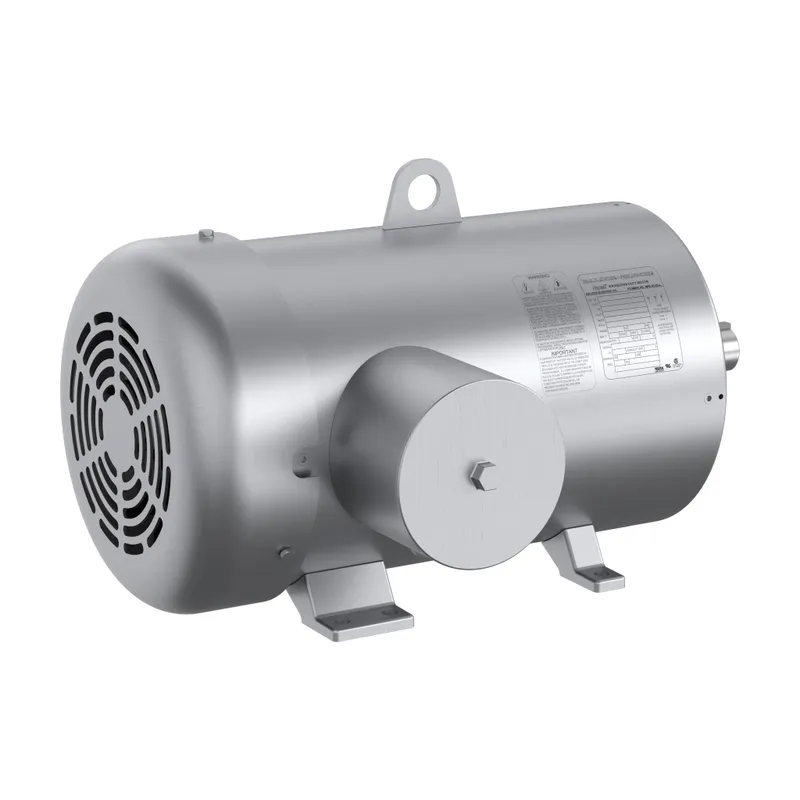

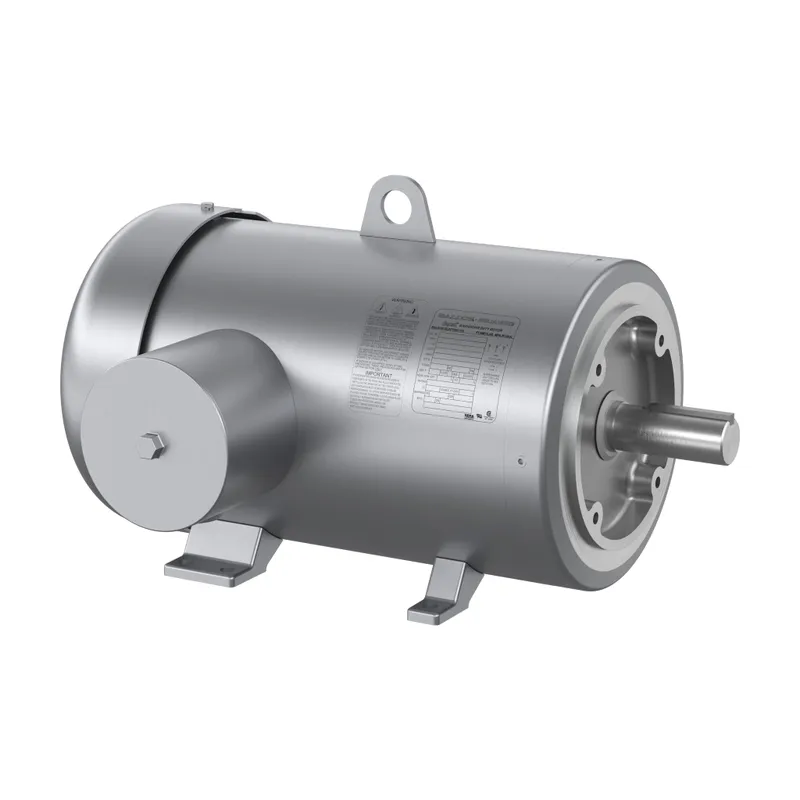

ABB CFSWDM23934T-E
20HP,1765RPM,3PH,60HZ,256TC,3960M,T
- MPN
- CFSWDM23934T-E
- Category
- Food Safe three phase motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB CFSWDM23934T-E?
Washdown Motor 20 Hp 230 V (CFSWDM23934T-E)
Specifications
Ordering
| Catalog Number | CFSWDM23934T-E |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 84 % |
| Rated Efficiency | 93 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 20 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Stainless Steel |
| Motor Frame Size | 256TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 19.625 in |
| Product Net Weight | 290 lb |
| Product Net Width | 23.75 in |
| Dimension Diagram | 39LYE646 |
Certificates and Declarations
| Certification Agency | CSA EEV, CURUSEEV, NEMA_PREMIUM, UR, WEEE |
| IDEA Granular Category Code (IGCC) | 1328 >> Multi phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
